Installation Procedure

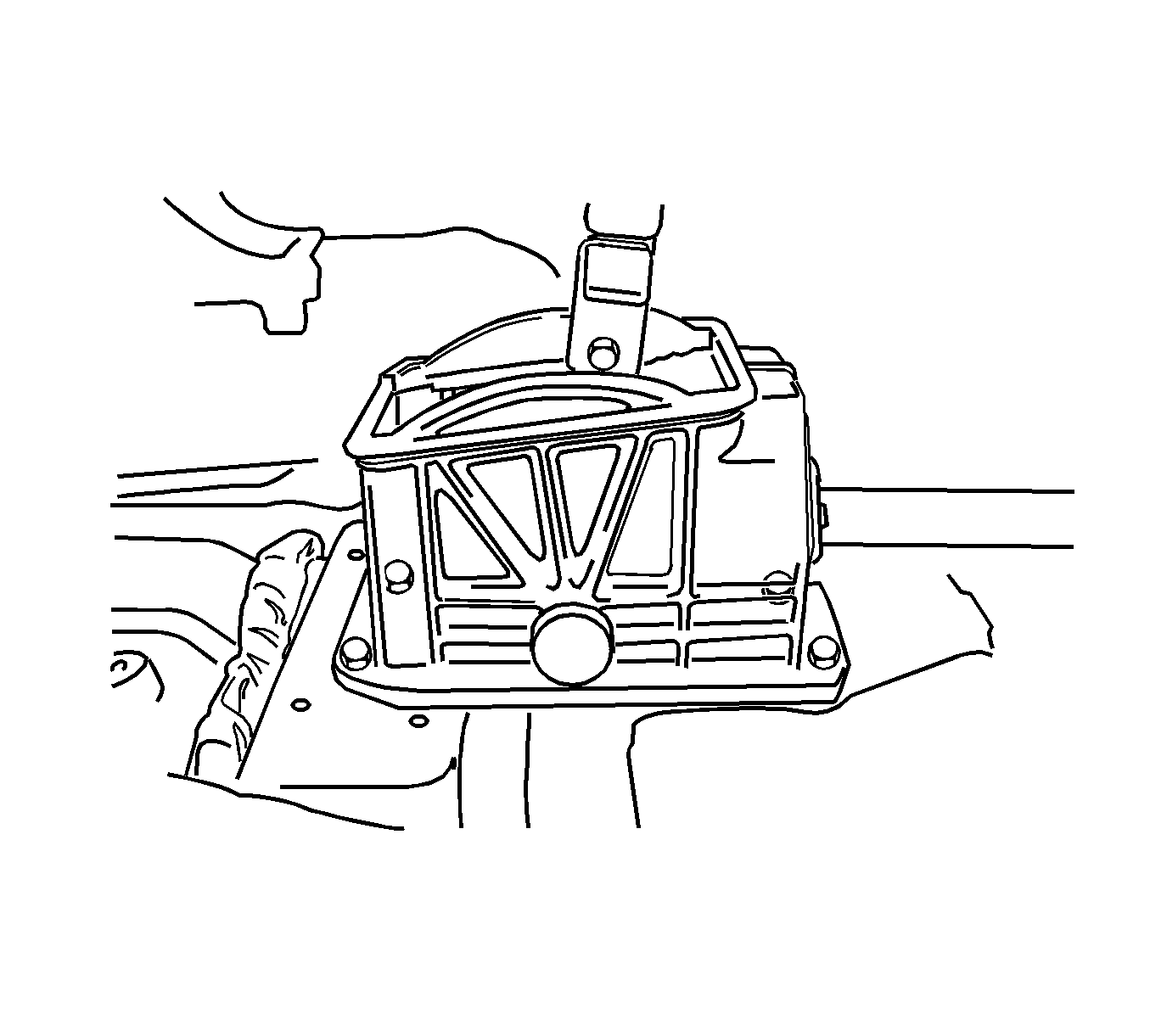

    Fig 1: View Of Gearshift Lever Housing
    GM1248173Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the gearshift lever housing and the gearshift lever housing bolts.

    Tighten:  Tighten the gearshift housing bolts to 7 N.m (62 lb in)  .

  2. Adjust the shift linkage.
  3. Install the console.
  4. Connect the negative battery cable.
