Manual Transmission Connector End Views

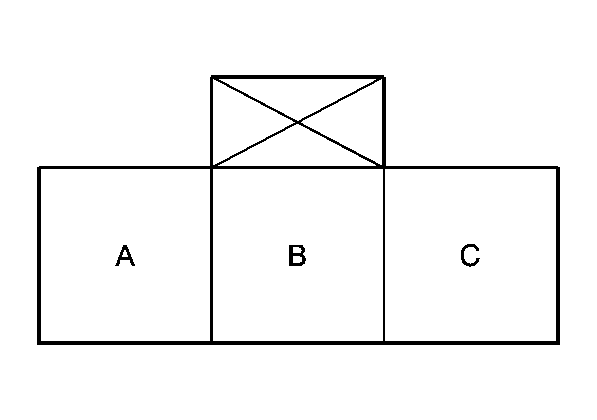

Vehicle Speed Sensor (VSS)

GM1258023Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 4606-01
  • 3-Way F
Pin Wire Color Circuit No. Function
A BK/WH 251 Ground
B D-GN/WH 817 Vehicle Speed Signal
C PK/D-BU 539 Ignition 1 Voltage
