Starting and Charging Schematics

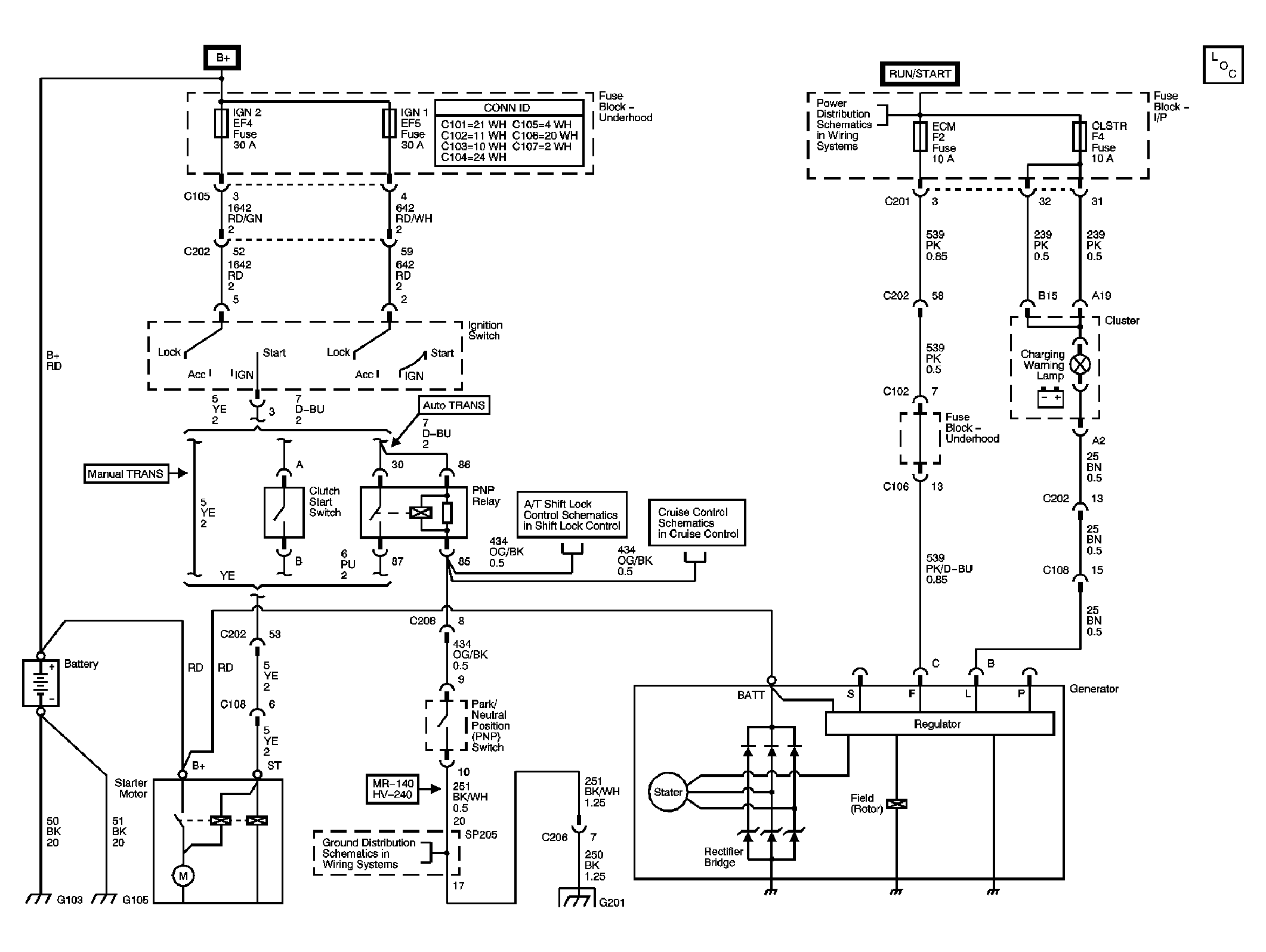

Fig 1: Starting And Charging Schematic

GM1360819

Courtesy of GENERAL MOTORS CORP.
