Outside Rearview Mirror Schematics

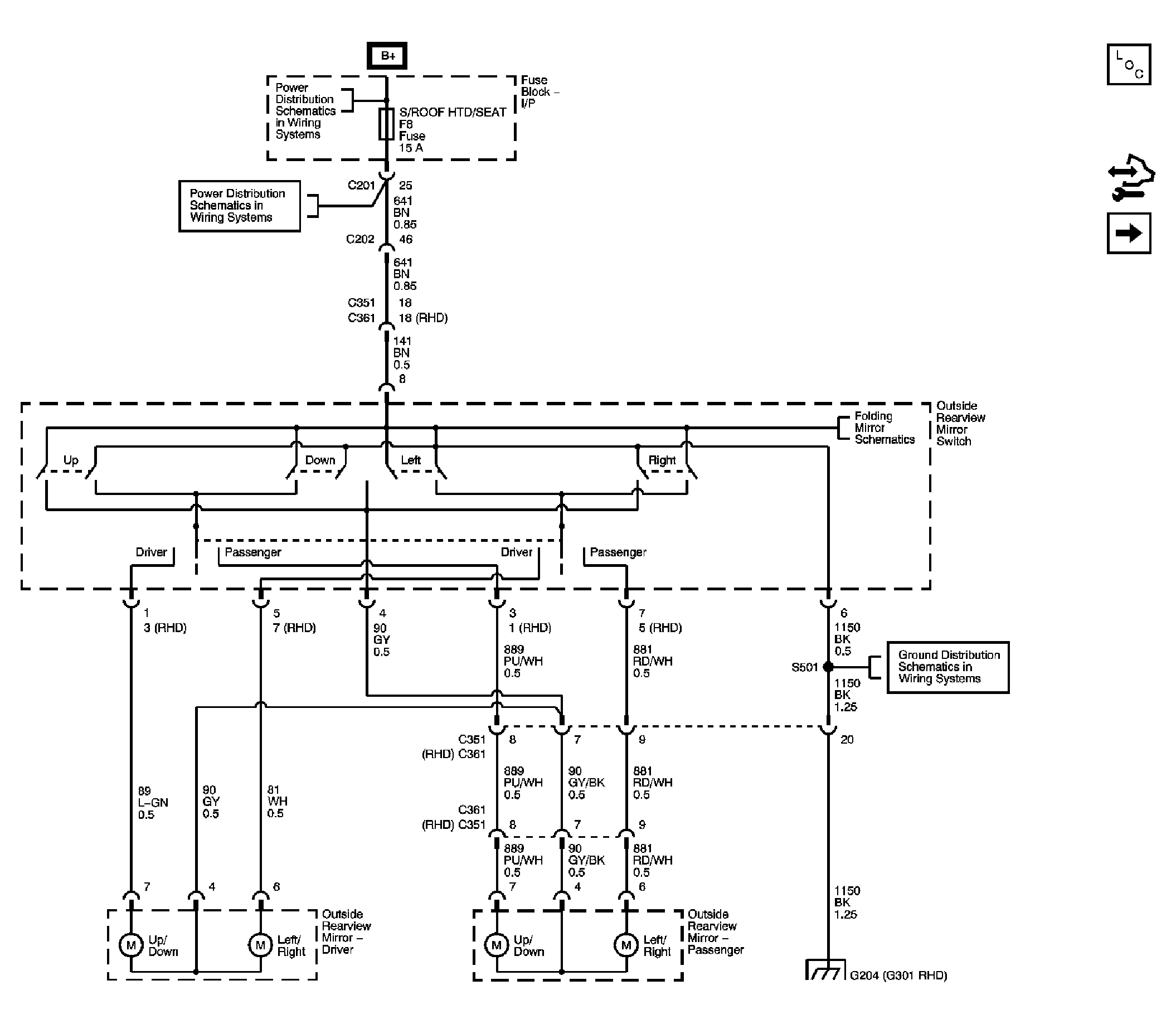

Fig 1: Power Mirrors Schematic

GM1360858

Courtesy of GENERAL MOTORS CORP.

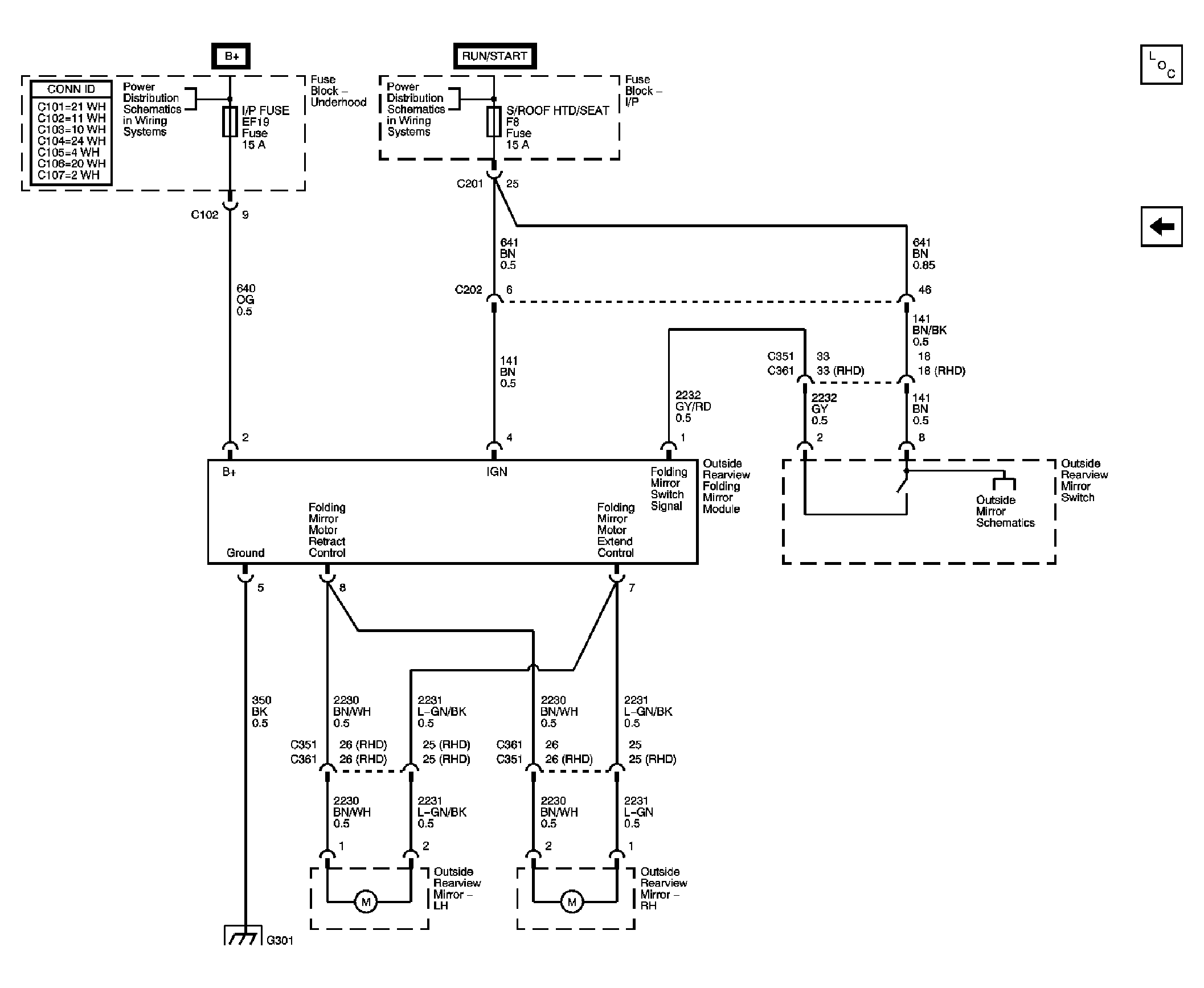

Fig 2: Power Folding Mirrors Schematic

GM1360859

Courtesy of GENERAL MOTORS CORP.
