Installation Procedure

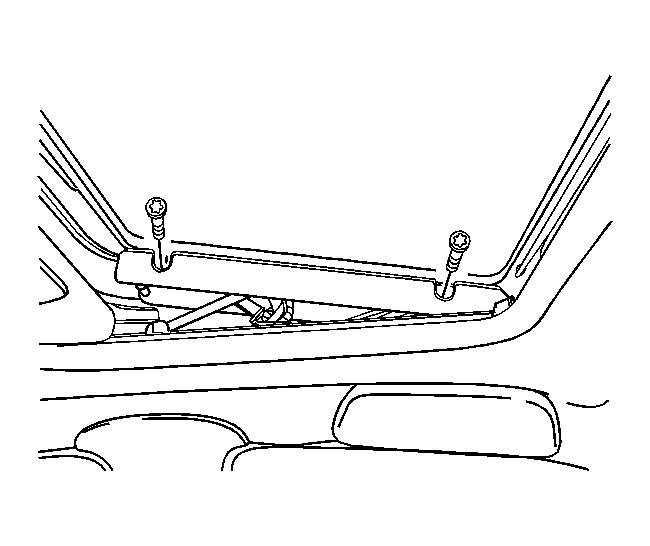

Fig 1: View Of Sunroof Glass Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the sunroof glass with the bolts.
Tighten: Tighten the sunroof glass bolts to 3 N.m (27 lb ft) .
Return the sunroof to its original position.
