Data Link Connector Schematics

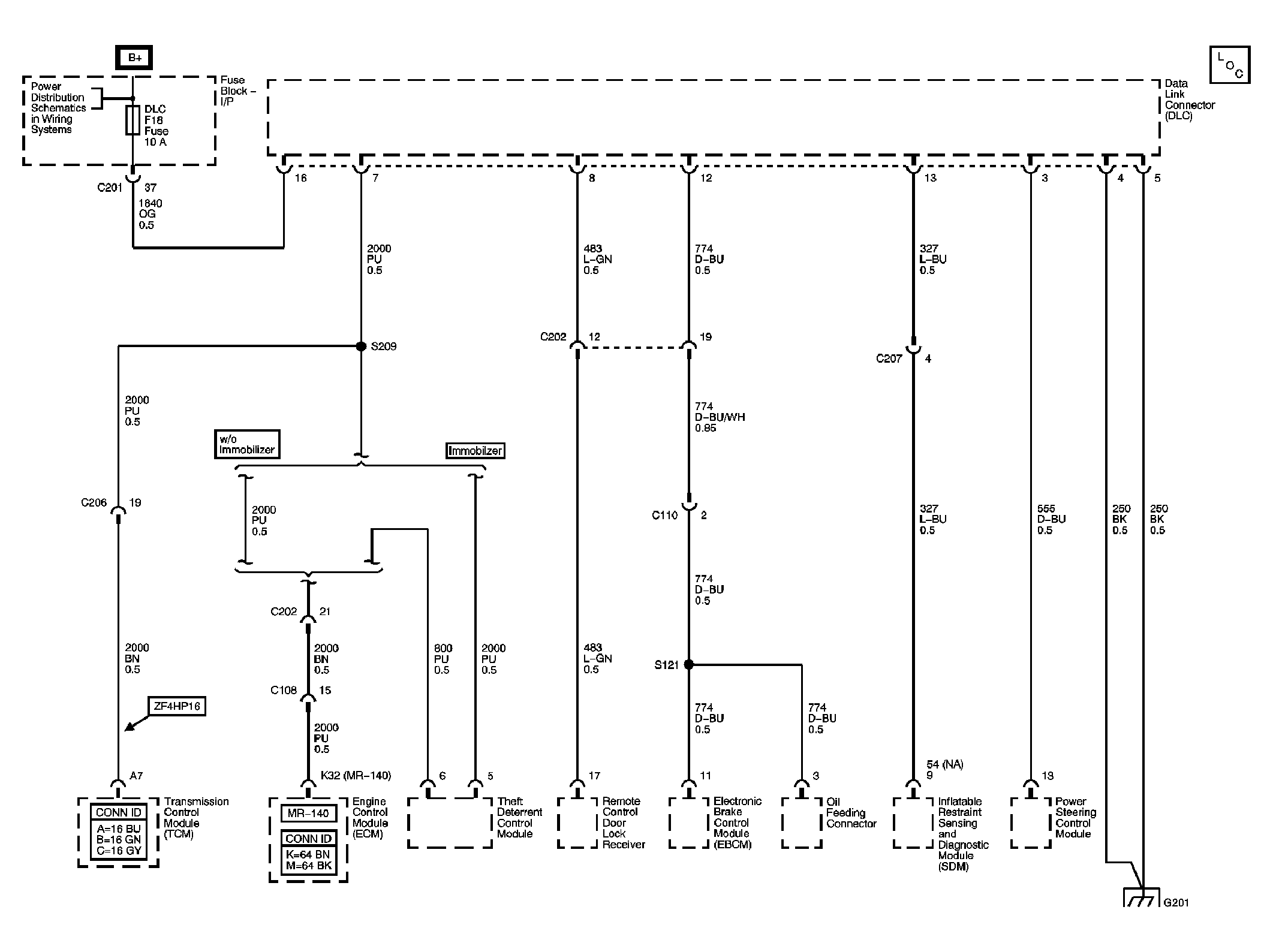

Fig 1: MR 140 Schematic

GM1376556

Courtesy of GENERAL MOTORS CORP.

Fig 2: HV 240 Schematic

GM1456522

Courtesy of GENERAL MOTORS CORP.

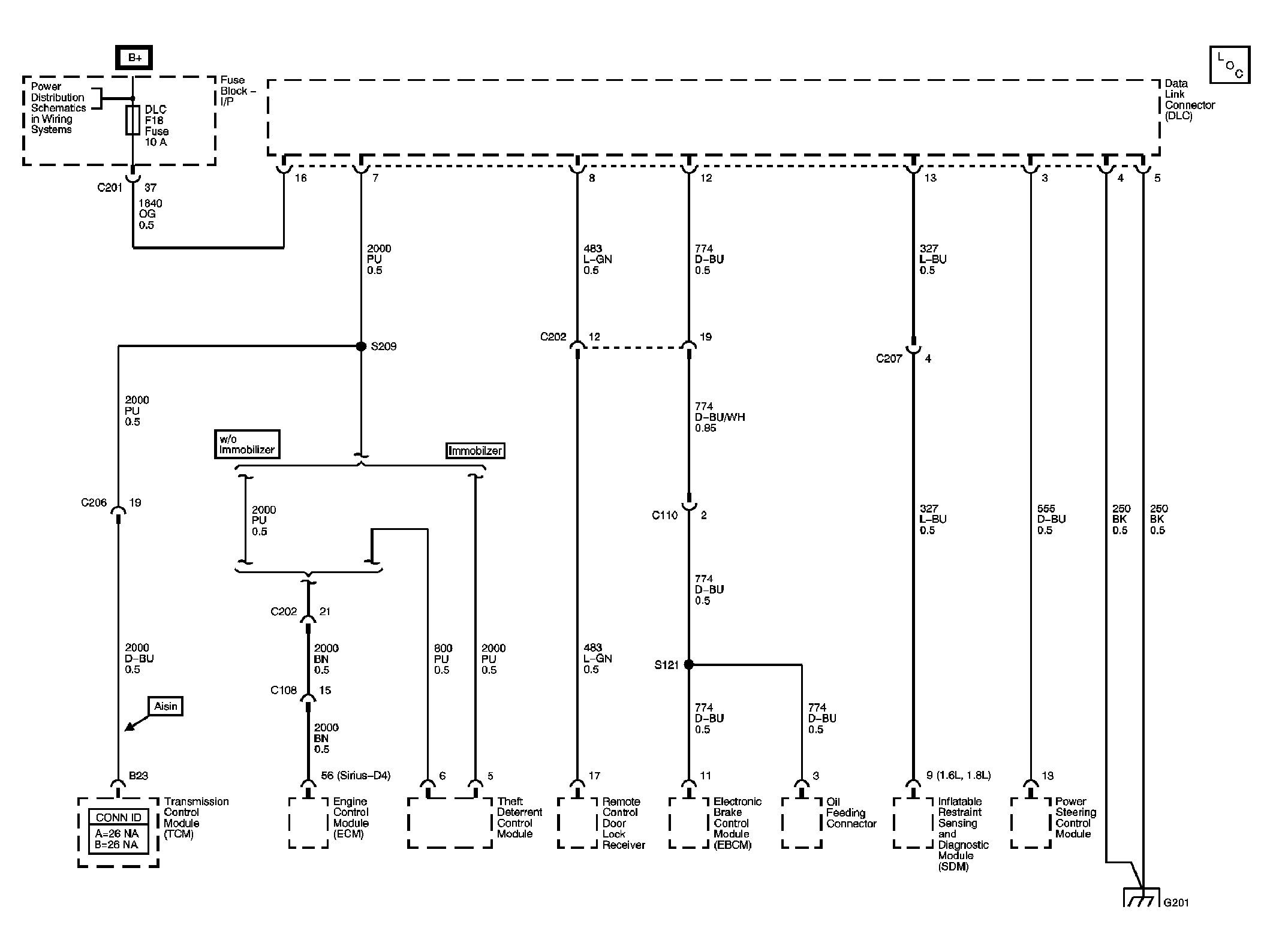

Fig 3: Sirius Schematic

GM1456523

Courtesy of GENERAL MOTORS CORP.
