Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the EGR pipe to the exhaust manifold.

    Tighten:  Tighten the EGR pipe bolts to 25 N.m (18 lb ft).

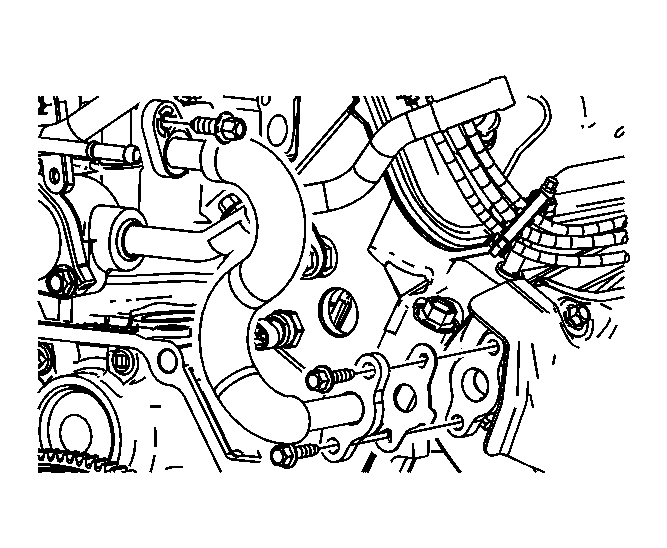

    2. Fig 1: Installing EGR Pipe To EGR Valve
    GM1239050Courtesy of GENERAL MOTORS CORP.
  2. Install the EGR pipe to the EGR valve.
  3. Install the EGR pipe bolt.

    Tighten:  Tighten the bolt to 30 N.m (22 lb ft).
