Power and Grounding Component Views

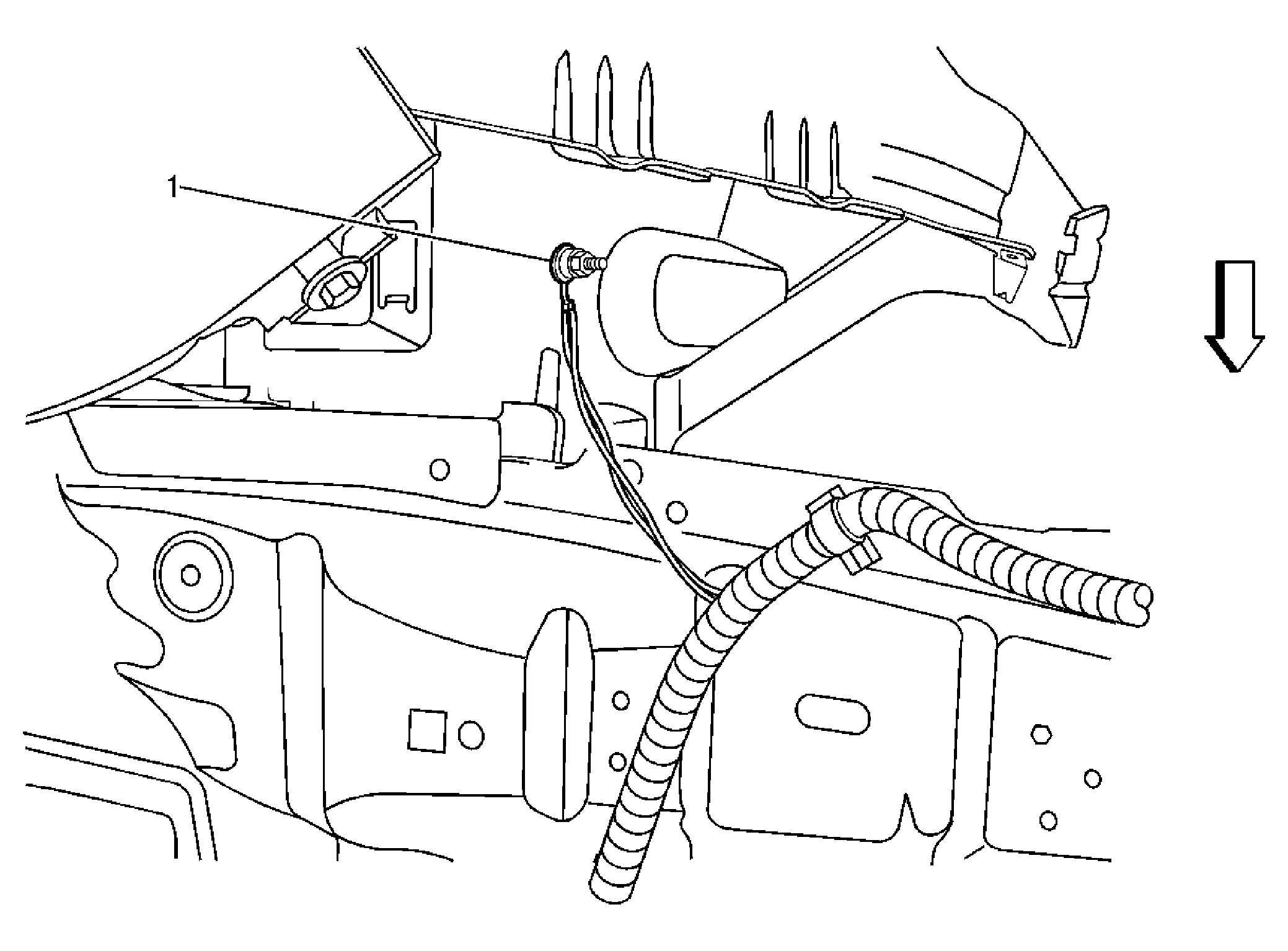

Fig 1: Power and Grounding Component Views - Front Side of Core Support Behind Right Headlamp Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102

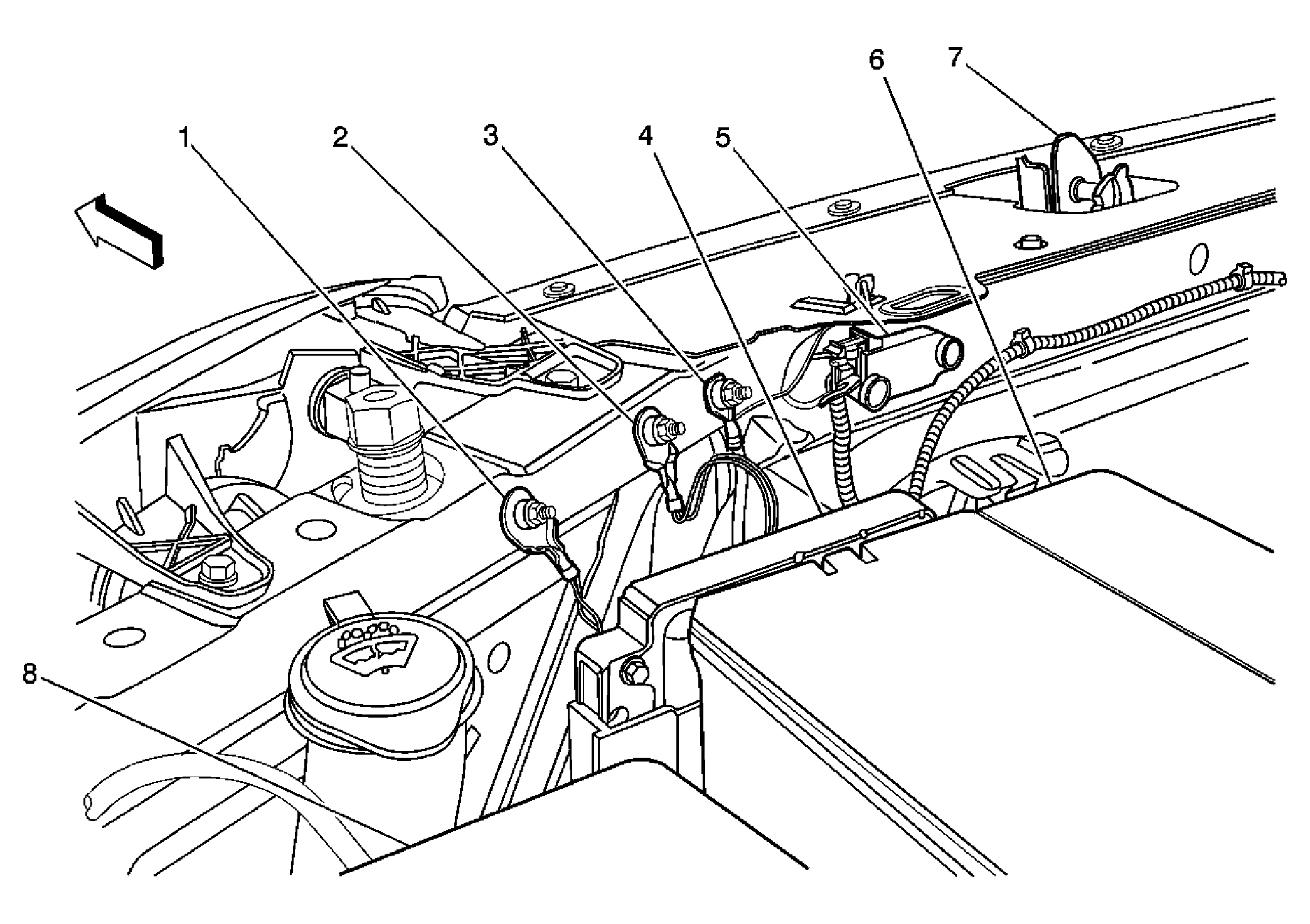

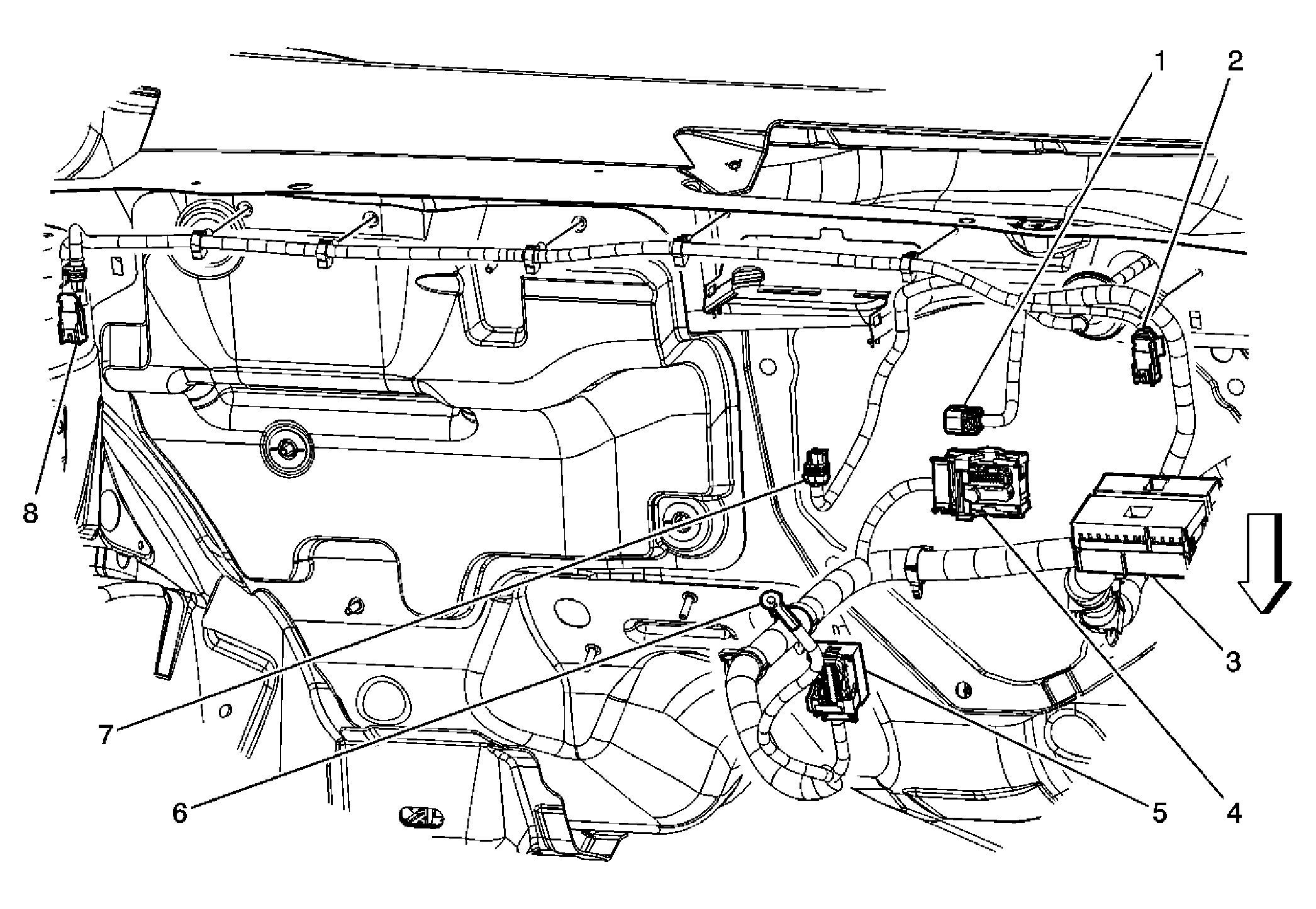

Fig 2: Power and Grounding Component Views - Left Side of Core Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	G104
3	G109
4	Powertrain Control Module (PCM)
5	Inflatable Restraint Front End Sensor - Left
6	Battery
7	Hood Latch
8	Fuse Block - Underhood

Fig 3: Power and Grounding Component Views - Left Rear of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	Battery
3	Electronic Brake Control Module (EBCM)
4	C101
5	G103
6	Fuse Block - Underhood
7	Powertrain Control Module (PCM)
8	Powertrain Control Module (PCM), C3
9	Powertrain Control Module (PCM), C2
10	Powertrain Control Module (PCM), C1

Fig 4: Power and Grounding Component Views - Left Rear of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G105
2	G106 (LX9)
3	Engine Coolant Temperature (ECT) Sensor (LX9)
4	Park Neutral Position (PNP) Switch

Fig 5: Power and Grounding Component Views - Top Right Front of Engine - L61

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G106
2	Generator

Fig 6: Power and Grounding Component Views - Rear of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	C101
3	Fuse Block - Underhood
4	Electronic Brake Control Module (EBCM)
5	Powertrain Control Module (PCM)
6	G109
7	Coolant Level Switch
8	C102

Fig 7: Power and Grounding Component Views - Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Hazard Switch
8	Ambient Light Sensor
9	Radio
10	HVAC Control Module
11	Inflatable Restraint I/P Module
12	Traction Control Switch (NW7, NW9), Auxiliary Power Outlet - Front (w/o NW7, NW9)
13	Transmission Shifter
14	Cigar Lighter
15	Horn Buttons/Inflatable Restraint Steering Wheel Module
16	Data Link Connector (DLC)
17	Fog Lamp Switch (T96)
18	Dimmer Switch
19	Adjustable Pedals Position Switch (JF4)

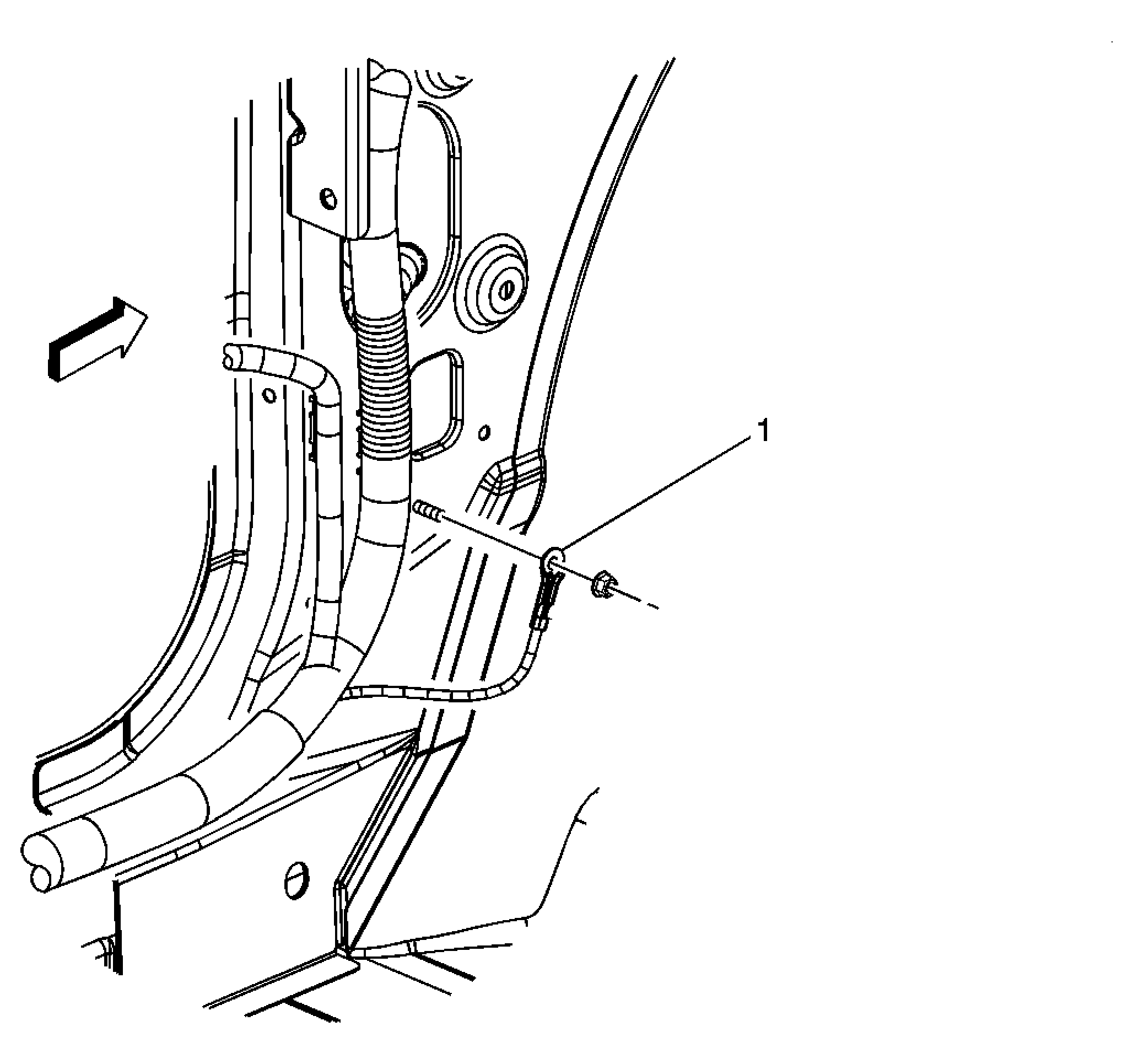

Fig 8: Power and Grounding Component Views - Under the Left Kick Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G303

Fig 9: Power and Grounding Component Views - Right Side of the Instrument Panel and Shifter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio, C1
2	Body Control Module (BCM), C2
3	HVAC Control Module, C2
4	HVAC Control Module, C1
5	Inflatable Restraint I/P Module Connector
6	C207
7	G201
8	G203
9	Body Control Module (BCM), C3
10	Body Control Module (BCM), C1
11	Body Control Module (BCM)

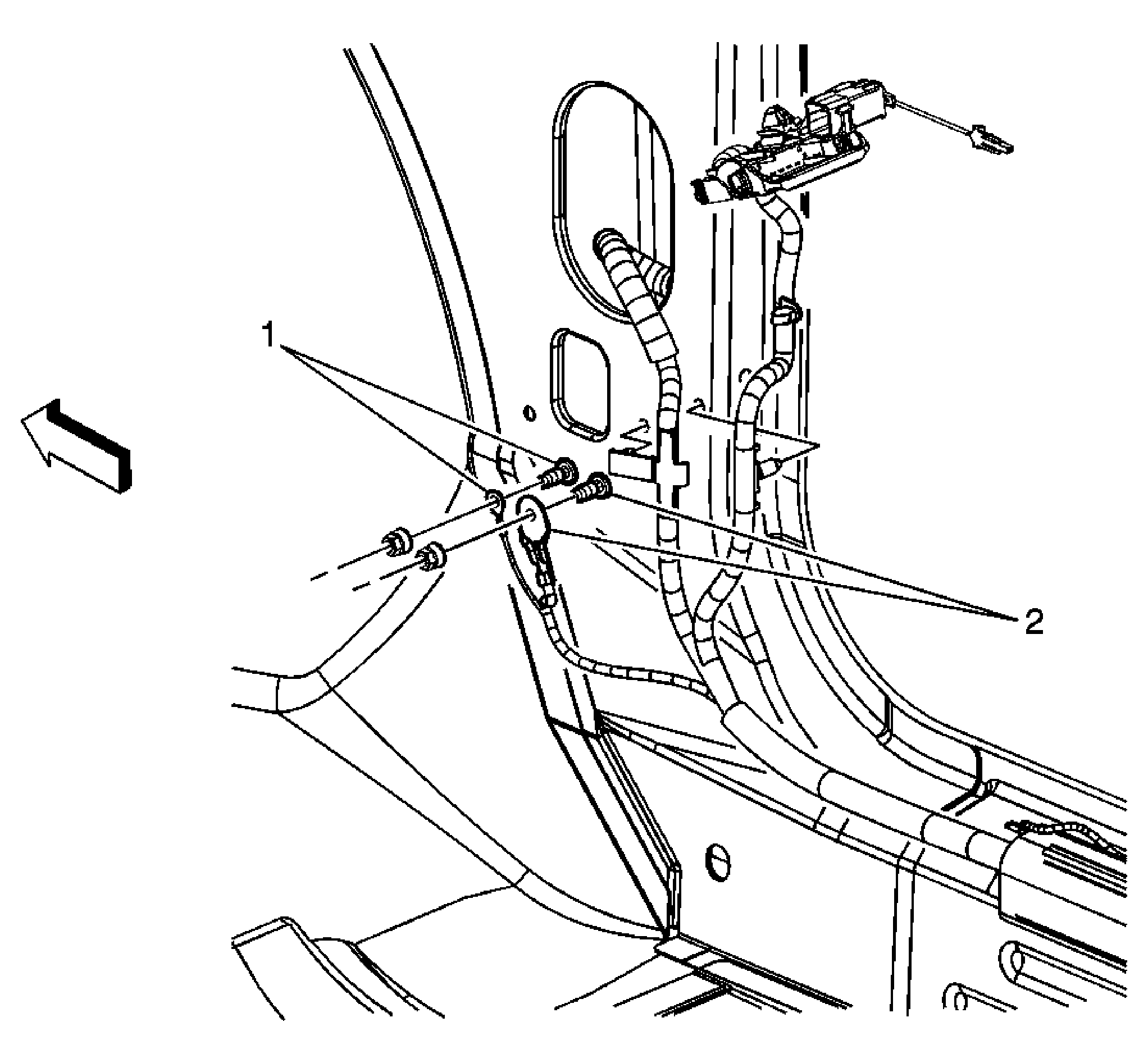

Fig 10: Power and Grounding Component Views - Under the Right Kick Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G304
2	G305

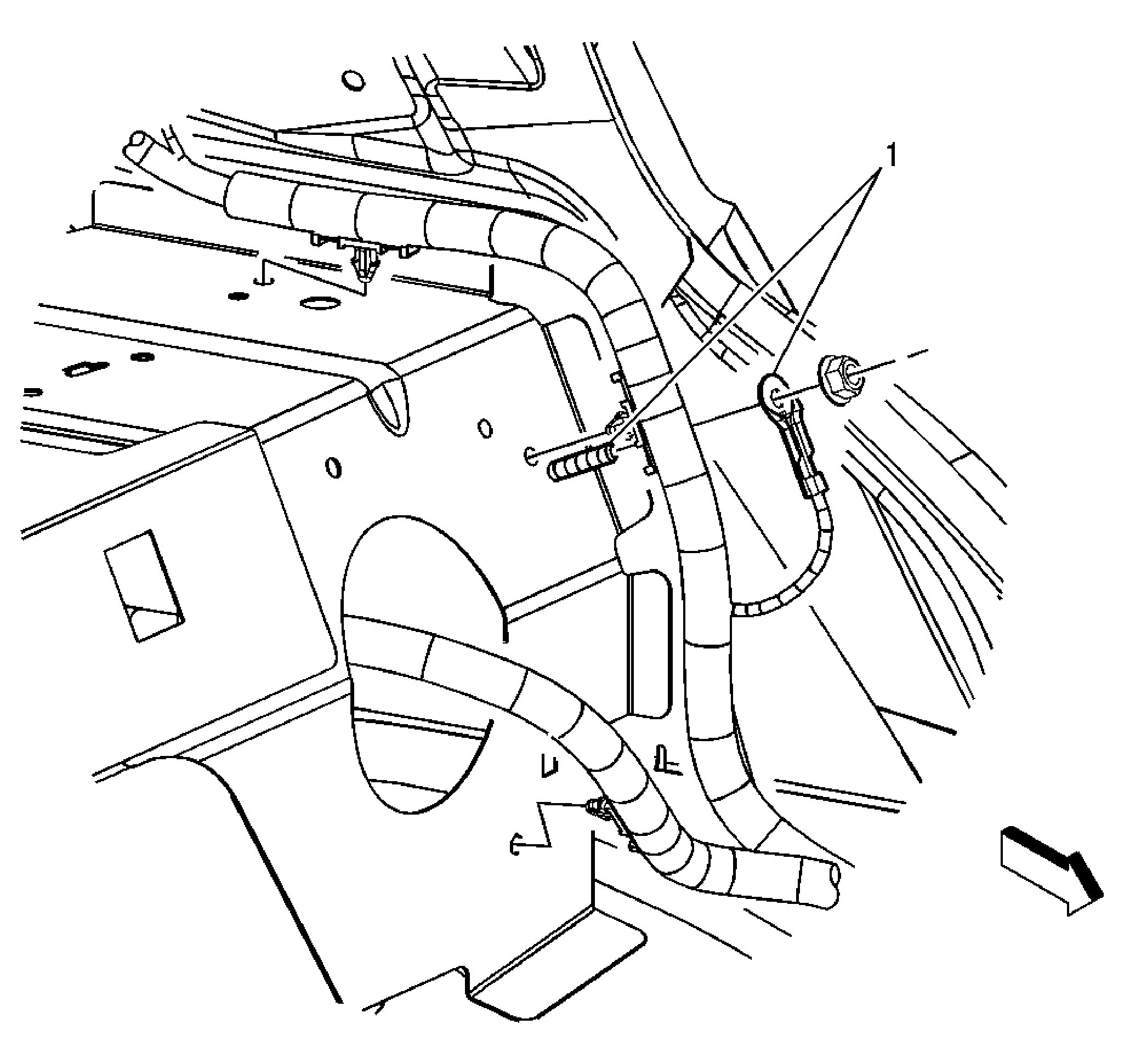

Fig 11: Power and Grounding Component Views - Behind the Rear Seat to the Left Side - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G302

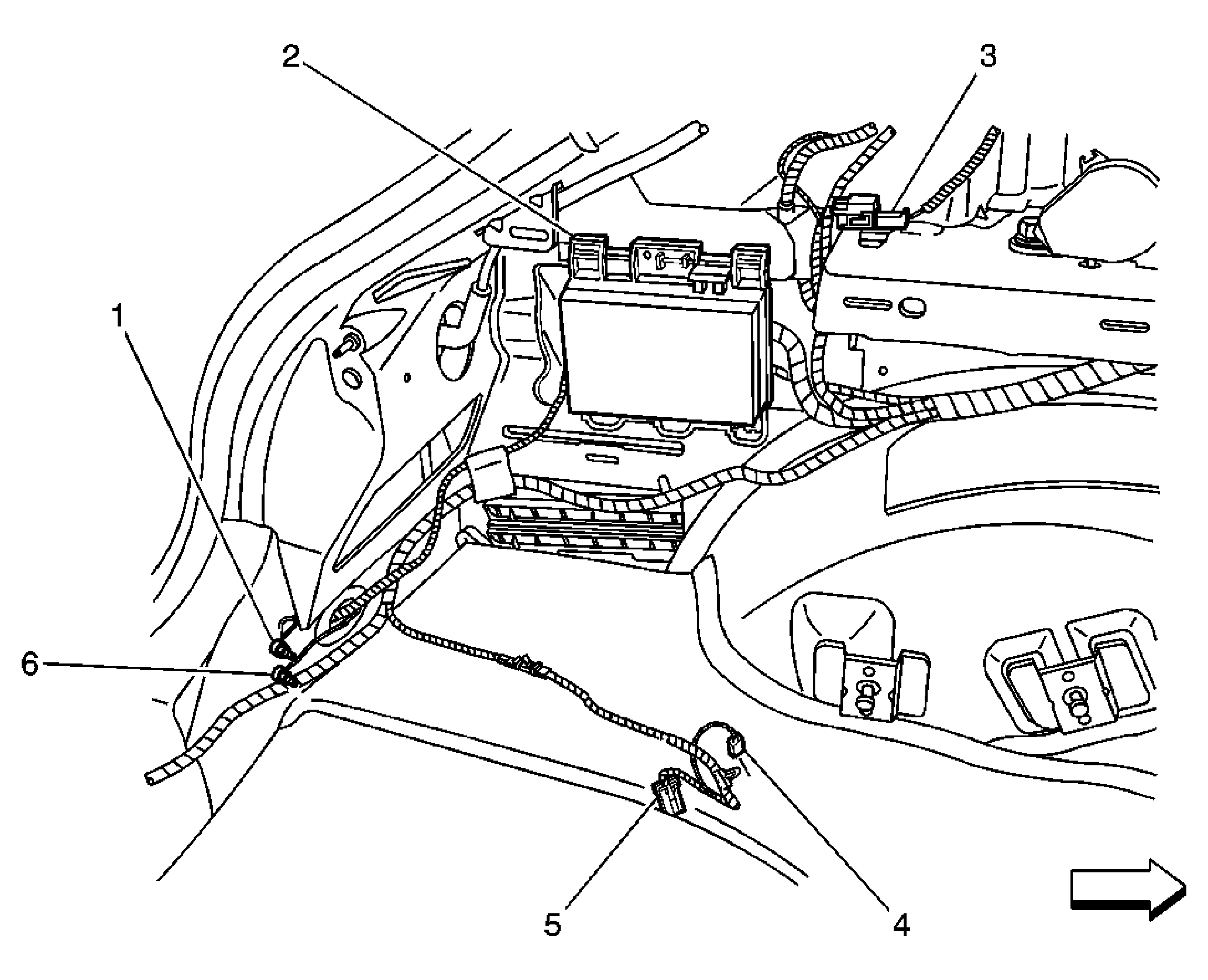

Fig 12: Power and Grounding Component Views - Left Rear of Passenger Compartment - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Rear
2	C651
3	Inflatable Restraint Side Impact Module - Left (AY1)
4	C404
5	C801
6	Remote Control Door Lock Receiver (RCDLR)
7	G302

Fig 13: Power and Grounding Component Views - Inside of Right C-Pillar - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid, C2
2	G301
3	Inflatable Restraint Roof Rail Module - Right

Fig 14: Power and Grounding Component Views - Right Rear of Passenger Compartment - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301
2	Inflatable Restraint Side Impact Module - Right (AY1)
3	C701
4	Digital Radio Receiver

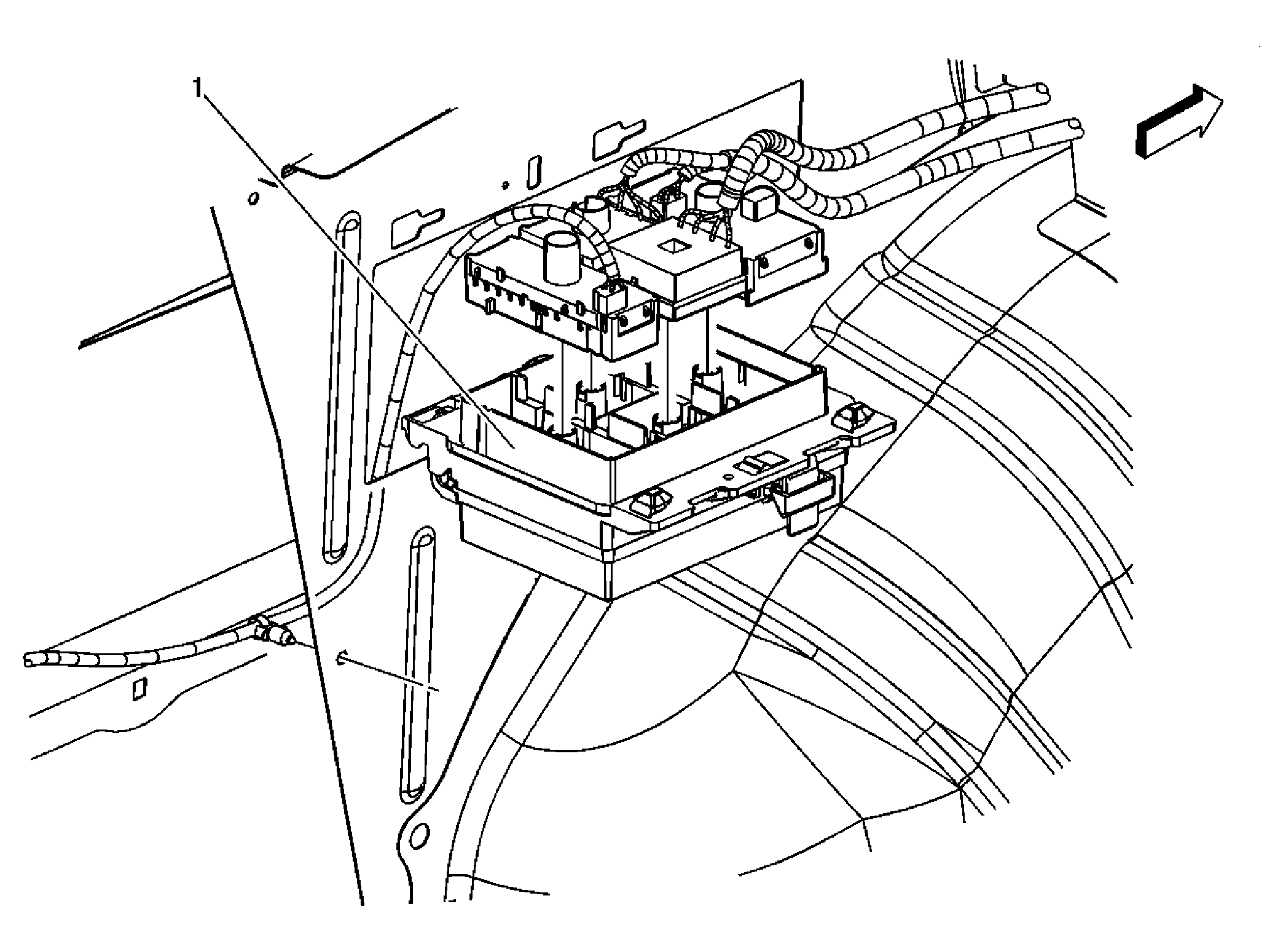

Fig 15: Power and Grounding Component Views - Inside Left Rear Quarter Panel - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Rear

Fig 16: Power and Grounding Component Views - Inside Left Rear Quarter Panel - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	Fuse Block - Rear
3	C651
4	Cargo Lamp, Connector
5	Auxiliary Power Outlet - Rear, Connector
6	G403
