Fuel Hose/Pipes Routing Diagram

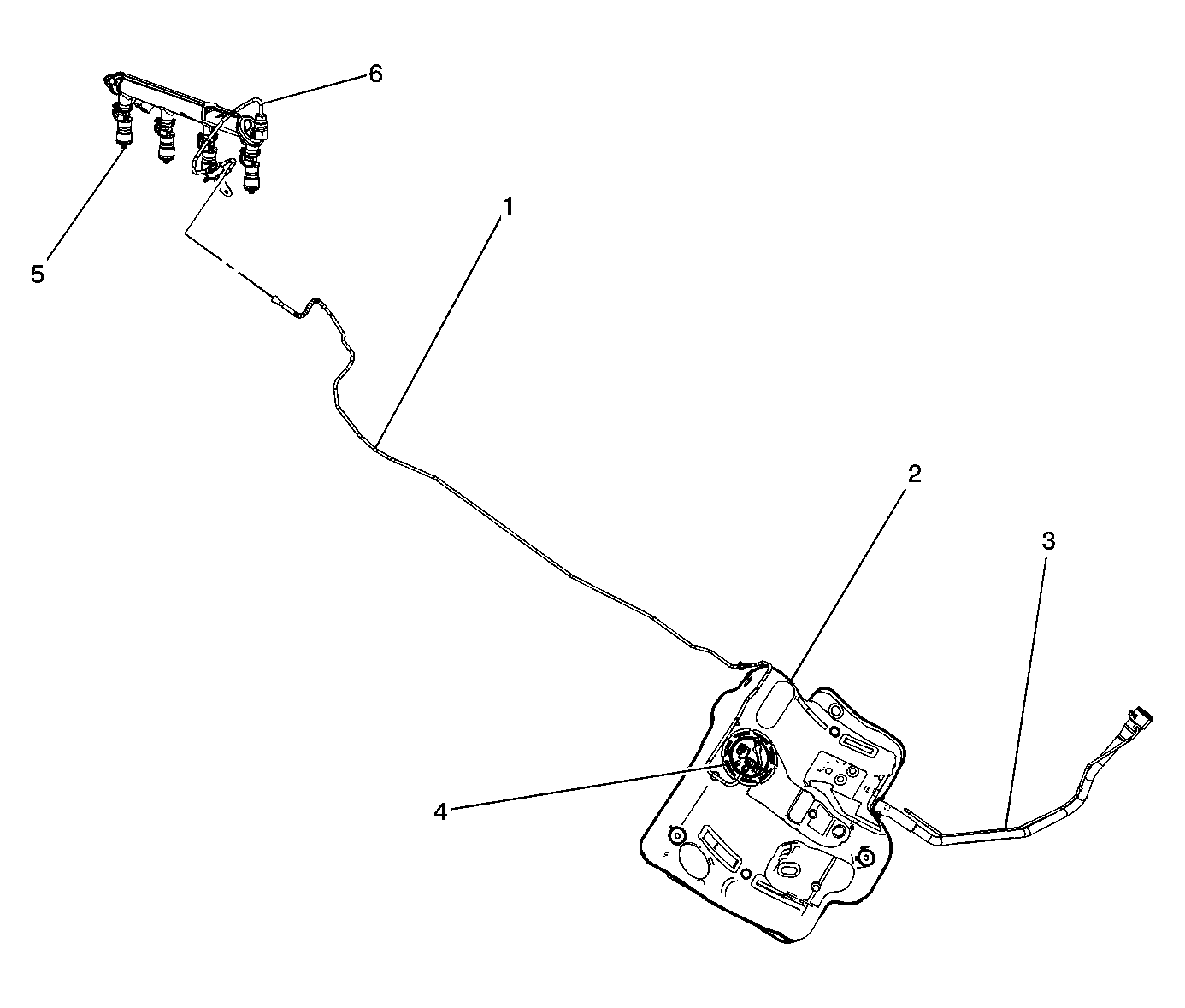

Fig 1: View Of Fuel Hose/Pipes Routing Diagram
GM1343533Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Fuel Feed Pipe
2 Fuel Tank
3 Fuel Fill Pipe
4 Fuel Sender Assembly
5 Fuel Rail Assembly
6 Engine Compartment Fuel Feed Pipe
