Rear Compartment Lid Switch Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

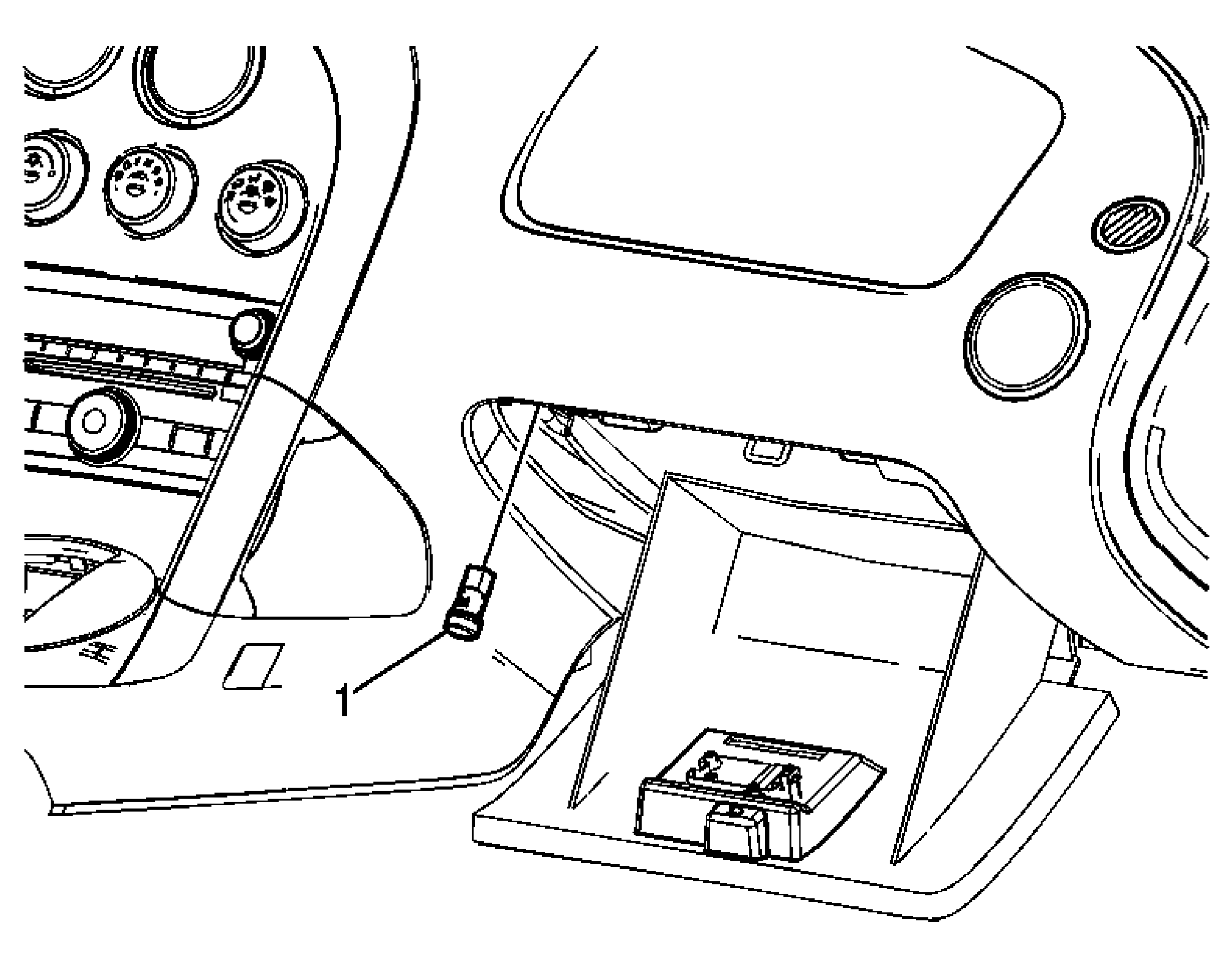

Fig 1: Rear Compartment Lid Switch Replacement
GM1588704Courtesy of GENERAL MOTORS CORP.
Rear Compartment Lid Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Switch Assembly, Rear Compartment Lid Release
