Antilock Brake System Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

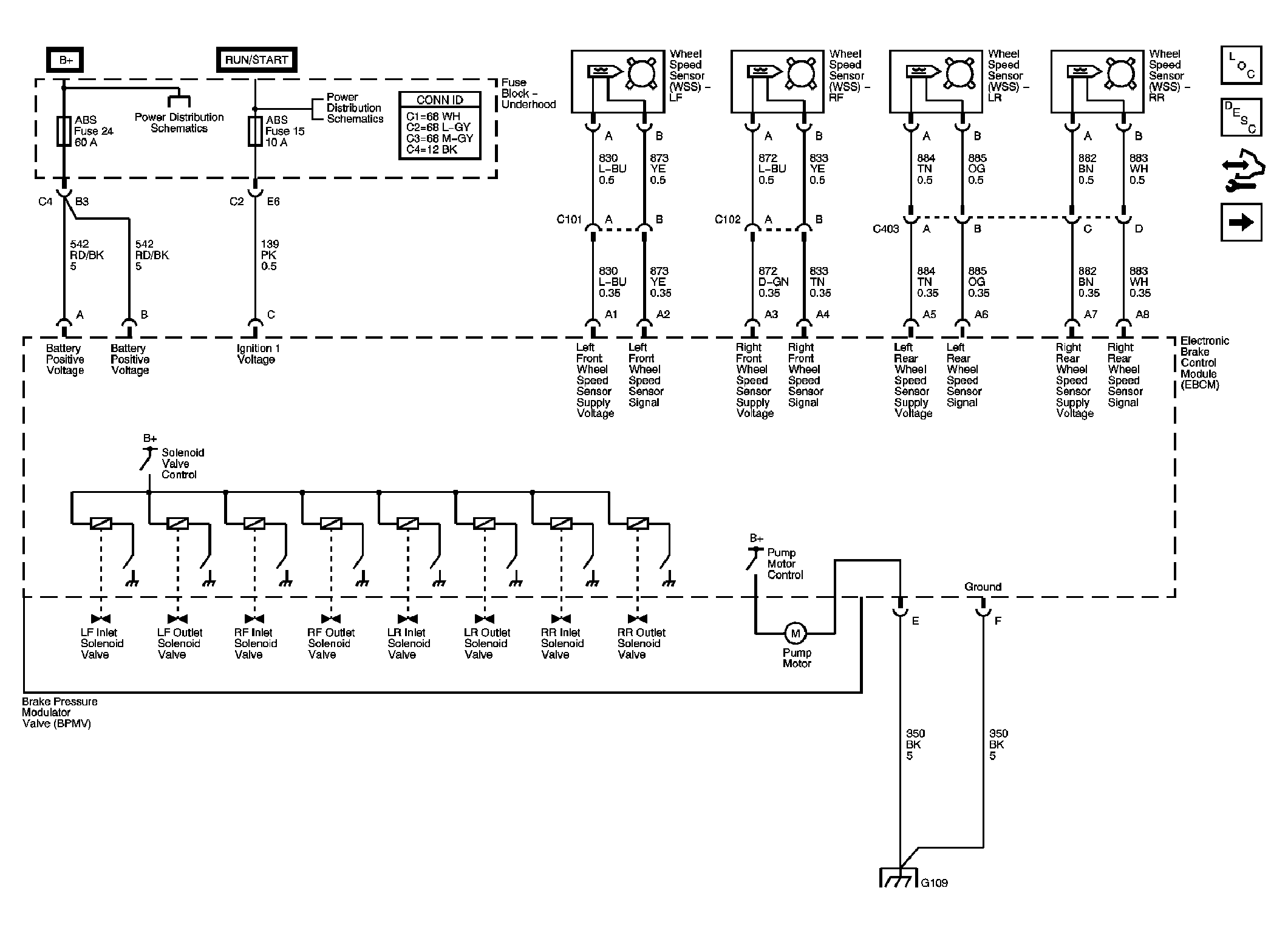

Fig 1: Power, Ground, Brake Pressure Modulator Valve and Wheel Speed Sensors
GM1786853Courtesy of GENERAL MOTORS CORP.

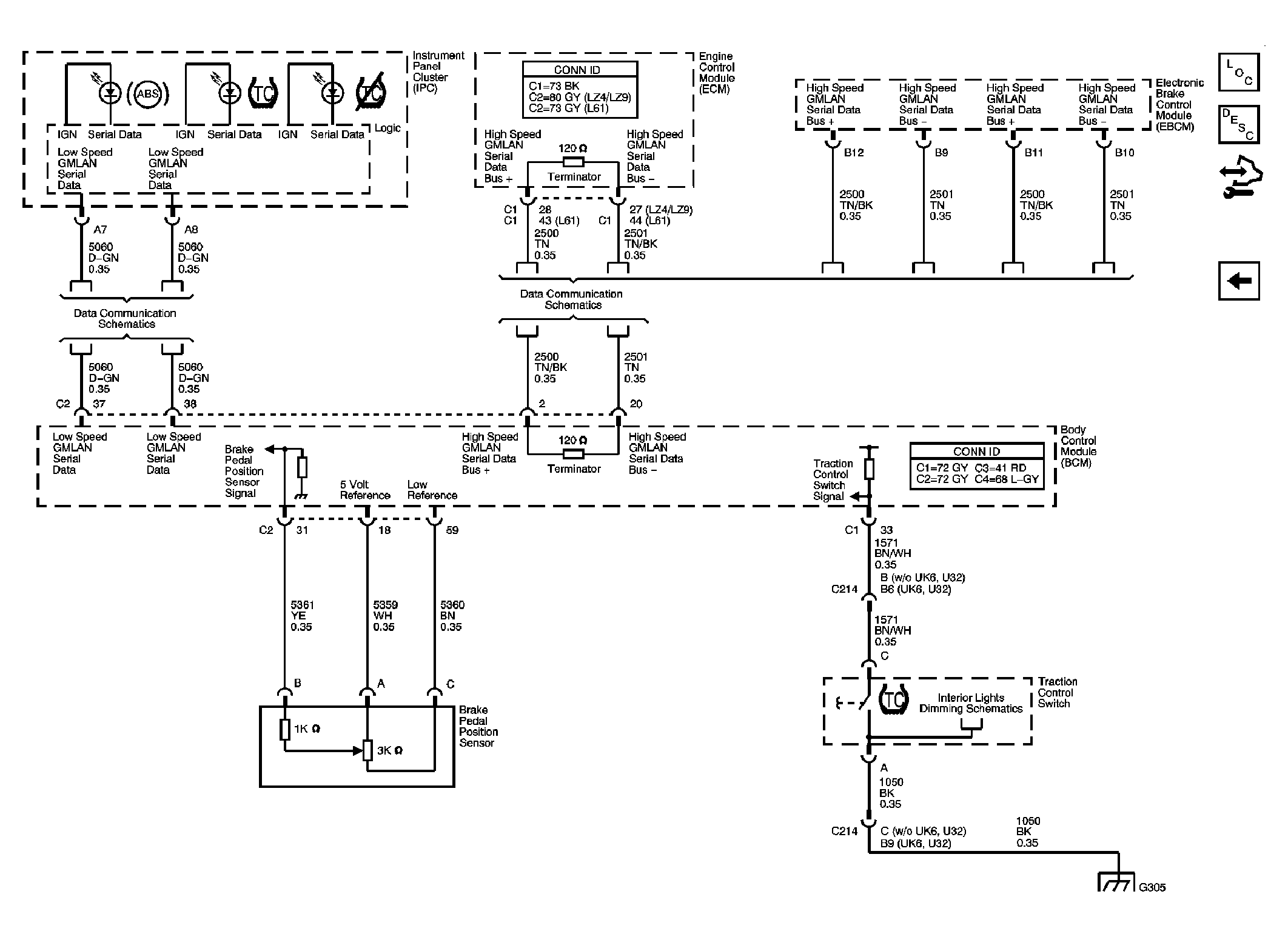

Fig 2: Brake Pedal Position Sensor, Data Link Communications and Traction Control Switch
GM1786861Courtesy of GENERAL MOTORS CORP.
