Splice Pack Connector End Views

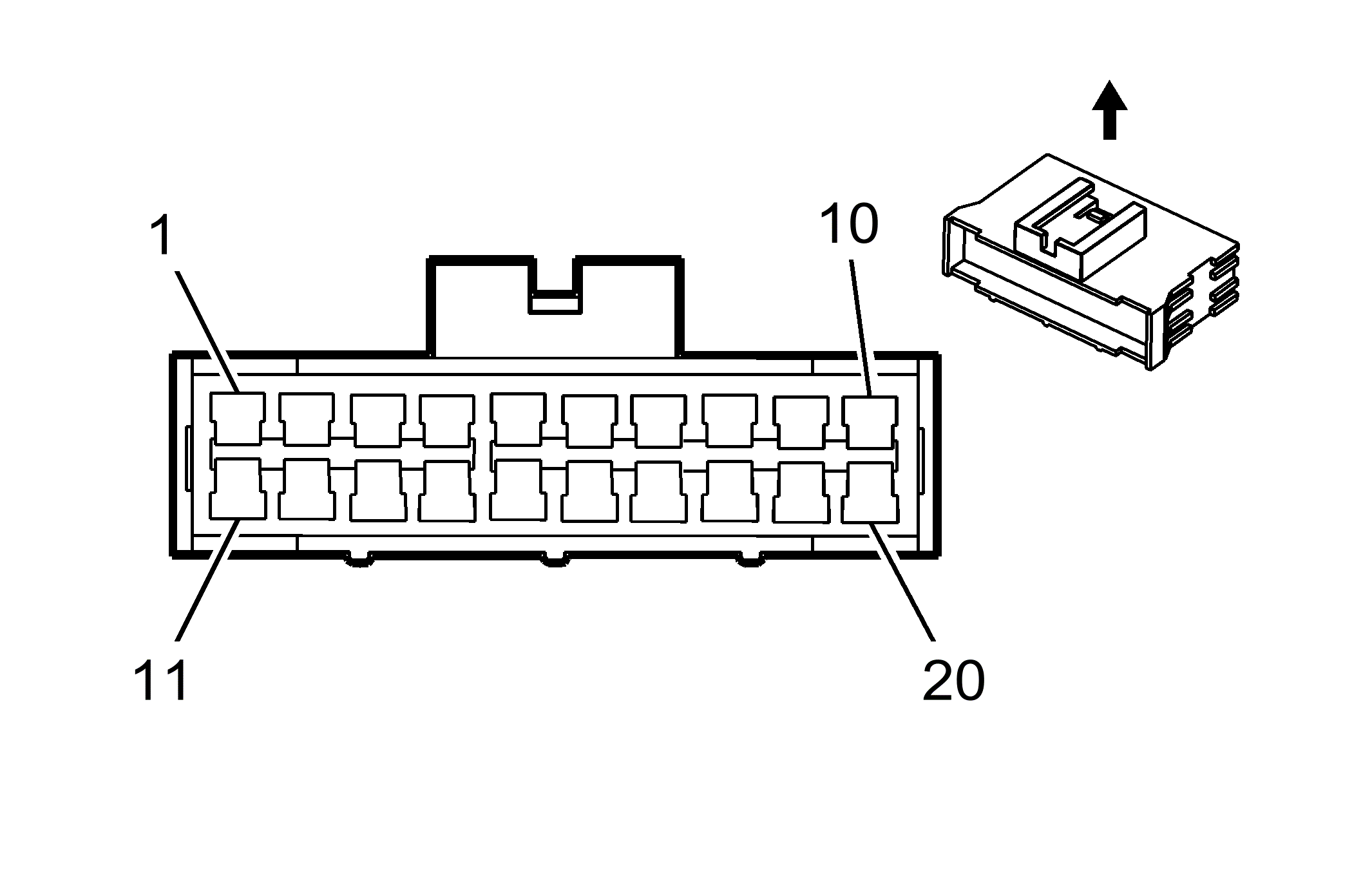

SP101

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808613/831225/808616
  • 20-Way
Pin Wire Color Circuit No. Function
1 L-BU/BK 1688 5-Volt Reference
2 L-BU/BK 1688 5-Volt Reference
3 L-BU/BK 1688 5-Volt Reference
4 L-BU/BK 1688 5-Volt Reference
5 - - Not Used
6 BK/WH 251 Ground
BK/WH 251 Ground
7 BK/WH 251 Ground
BK/WH 251 Ground
8 BK/WH 251 Ground
9 BK/WH 251 Ground
10 BK/WH 251 Ground
11-13 - - Not Used
14 OG/BK 469 Low Reference
15 OG/BK 469 Low Reference
16 OG/BK 469 Low Reference
OG/BK 469 Low Reference
17 YE/BK 469 Low Reference
18 D-GN/WH 817 Vehicle Speed Signal
19 D-GN/WH 817 Vehicle Speed Signal
20 D-GN/WH 817 Vehicle Speed Signal
SP201 (Except North America)

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808616/831725/808614
  • 20-Way
Pin Wire Color Circuit No. Function
1 BK 2250 Ground
2 BK 2250 Ground
3 BK 2250 Ground
4 - - Not Used
5 BK 2250 Ground
6 BK 2250 Ground
7 BK 2250 Ground
8 BK 2250 Ground
9-10 - - Not Used
11 BN/WH 33 Brake Warning Indicator Control
12 BN/WH 33 Brake Warning Indicator Control
13 BN/WH 33 Brake Warning Indicator Control
14 BN/WH 33 Brake Warning Indicator Control
15 - - Not Used
16 D-GN 905 Serial Data
17 D-GN 905 Serial Data
18 D-GN 905 Serial Data
19 D-GN 905 Serial Data
20 - - Not Used
SP201 (North America)

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808616/831225/808614
  • 20-Way
Pin Wire Color Circuit No. Function
1 BK 2250 Ground
2 BK 2250 Ground
3-4 - - Not Used
5 BK 2250 Ground
6 BK 2250 Ground
7 BK 2250 Ground
8 BK 2250 Ground
9 BK 2250 Ground
10 - - Not Used
11 BN/WH 33 Brake Warning Indicator Control
12 BN/WH 33 Brake Warning Indicator Control
13 - - Not Used
14 BN/WH 33 Brake Warning Indicator Control
15 BN/WH 33 Brake Warning Indicator Control
16 D-GN 905 Serial Data
17 D-GN 905 Serial Data
18 D-GN 905 Serial Data
19 D-GN 905 Serial Data
20 - - Not Used
SP202 (Except North America)

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808613/831225/808614
  • 20-Way
Pin Wire Color Circuit No. Function
1 BK 1250 Ground
2 - - Not Used
3 BK 1250 Ground
4 - - Not Used
5 BK 1250 Ground
6 BK 1250 Ground
7 BK 1250 Ground
8 BK 1250 Ground
9 BK 1250 Ground
10 BK 1250 Ground
11 OG 640 Battery Positive Voltage
12 OG 640 Battery Positive Voltage
13 OG 640 Battery Positive Voltage
14-15 - - Not Used
16 L-BU 1346 Headlamp Relay Supply Voltage
17 L-BU 1346 Headlamp Relay Supply Voltage
18 - - Not Used
19 L-BU 1346 Headlamp Relay Supply Voltage
20 L-BU 1346 Headlamp Relay Supply Voltage
SP202 (North America)

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808613/831225/808614
  • 20-Way
Pin Wire Color Circuit No. Function
1 BK 1250 Ground
2 BK 1250 Ground
3 BK 1250 Ground
4 BK 1250 Ground
5 BK 1250 Ground
6 BK 1250 Ground
7 BK 1250 Ground
8 BK 1250 Ground
9 BK 1250 Ground
10 BK 1250 Ground
11 OG 640 Battery Positive Voltage
12 OG 640 Battery Positive Voltage
13 OG 640 Battery Positive Voltage
14 OG 640 Battery Positive Voltage
15 - - Not Used
16 L-BU 1346 Headlamp Relay Supply Voltage
17 L-BU 1346 Headlamp Relay Supply Voltage
18-19 - - Not Used
20 L-BU 1346 Headlamp Relay Supply Voltage
SP203 (Except North America)

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808613/831225/808614
  • 20-Way
Pin Wire Color Circuit No. Function
1 BK 250 Ground
2 BK 250 Ground
3 BK 250 Ground
4 BK 250 Ground
5 - - Not Used
6 BK 250 Ground
7 BK 250 Ground
8 - - Not Used
9 BK 230 Instrument Panel Lamps Dimming Control
10 BK 230 Instrument Panel Lamps Dimming Control
11 D-GN/WH 817 Vehicle Speed Signal
12 D-GN/WH 817 Vehicle Speed Signal
13 D-GN/WH 817 Vehicle Speed Signal
14 D-GN/WH 817 Vehicle Speed Signal
15-20 - - Not Used
SP203 (North America)

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808613/831225/808614
  • 20-Way
Pin Wire Color Circuit No. Function
1 BK 250 Ground
2 BK 250 Ground
3 BK 250 Ground
4 BK 250 Ground
5 - - Not Used
6 BK 250 Ground
7 BK 250 Ground
8 - - Not Used
9 BK 250 Ground
10 BK 250 Ground
11 D-GN/WH 817 Vehicle Speed Signal
12 D-GN/WH 817 Vehicle Speed Signal
13 D-GN/WH 817 Vehicle Speed Signal
14 D-GN/WH 817 Vehicle Speed Signal
15 D-GN/WH 817 Vehicle Speed Signal
16 L-BU 20 Stop Lamp Supply Voltage
17 L-BU 20 Stop Lamp Supply Voltage
18 L-BU 20 Stop Lamp Supply Voltage
19 L-BU 20 Stop Lamp Supply Voltage
20 - - Not Used
SP204 (Except North America)

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808613/831225/808614
  • 20-Way
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 BN/WH 309 Right Park Lamp Supply Voltage
3 BN/WH 309 Right Park Lamp Supply Voltage
4 BN/WH 309 Right Park Lamp Supply Voltage
5 BN/WH 309 Right Park Lamp Supply Voltage
6 BN/WH 309 Right Park Lamp Supply Voltage
7 BN/WH 309 Right Park Lamp Supply Voltage
8 BN/WH 309 Right Park Lamp Supply Voltage
9 BN/WH 309 Right Park Lamp Supply Voltage
10 BN/WH 309 Right Park Lamp Supply Voltage
11 D-GN/WH 44 Instrument Panel Lamps Dimming Control
12 D-GN/WH 44 Instrument Panel Lamps Dimming Control
13 D-GN/WH 44 Instrument Panel Lamps Dimming Control
14 D-GN/WH 44 Instrument Panel Lamps Dimming Control
15 D-GN/WH 44 Instrument Panel Lamps Dimming Control
16 D-GN/WH 44 Instrument Panel Lamps Dimming Control
17 D-GN/WH 44 Instrument Panel Lamps Dimming Control
18 - - Not Used
19 D-GN/WH 44 Instrument Panel Lamps Dimming Control
20 - - Not Used
SP204 (North America)

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808613/831225/808614
  • 20-Way
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 BN/WH 309 Right Park Lamp Supply Voltage
3 BN/WH 309 Right Park Lamp Supply Voltage
4 BN/WH 309 Right Park Lamp Supply Voltage
5 BN/WH 309 Right Park Lamp Supply Voltage
6 BN/WH 309 Right Park Lamp Supply Voltage
7 BN/WH 309 Right Park Lamp Supply Voltage
8 BN/WH 309 Right Park Lamp Supply Voltage
9-10 - - Not Used
11 D-GN/WH 44 Instrument Panel Lamps Dimming Control
12 D-GN/WH 44 Instrument Panel Lamps Dimming Control
13 D-GN/WH 44 Instrument Panel Lamps Dimming Control
14 D-GN/WH 44 Instrument Panel Lamps Dimming Control
15 D-GN/WH 44 Instrument Panel Lamps Dimming Control
16 D-GN/WH 44 Instrument Panel Lamps Dimming Control
17 D-GN/WH 44 Instrument Panel Lamps Dimming Control
18-20 - - Not Used
SP301

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808613/831225/808616
  • 20-Way
Pin Wire Color Circuit No. Function
1 L-BU 14 Left Turn Signal Lamp Supply Voltage
2 L-BU 14 Left Turn Signal Lamp Supply Voltage
3 L-BU 14 Left Turn Signal Lamp Supply Voltage
4 L-BU 14 Left Turn Signal Lamp Supply Voltage
5 - - Not Used
6 D-BU 15 Right Turn Signal Lamp Supply Voltage
7 D-BU 15 Right Turn Signal Lamp Supply Voltage
8 D-BU 15 Right Turn Signal Lamp Supply Voltage
9 D-BU 15 Right Turn Signal Lamp Supply Voltage
10 D-BU 15 Right Turn Signal Lamp Supply Voltage
11 BN/WH 96 Windshield Wiper Switch Pulse Delay Signal
12 BN/WH 96 Windshield Wiper Switch Pulse Delay Signal
13 BN/WH 96 Windshield Wiper Switch Pulse Delay Signal
14 L-BU 20 Stop Lamp Supply Voltage
15 L-BU 20 Stop Lamp Supply Voltage
16 L-BU 20 Stop Lamp Supply Voltage
17 L-BU 20 Stop Lamp Supply Voltage
18 L-BU 263 Rear Compartment Lid Ajar Switch Signal
L-BU 263 Rear Compartment Lid Ajar Switch Signal
19 L-BU 263 Rear Compartment Lid Ajar Switch Signal
20 L-BU 263 Rear Compartment Lid Ajar Switch Signal
SP302

GM1480164Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ASIA 808613/831225/808616
  • 20-Way
Pin Wire Color Circuit No. Function
1 GY 295 Door Latch Actuator Lock Control
2 GY 295 Door Latch Actuator Lock Control
3 GY 295 Door Latch Actuator Lock Control
4 GY 295 Door Latch Actuator Lock Control
5 GY 295 Door Latch Actuator Lock Control
6 BN 294 Door Latch Actuator Unlock Control
7 BN 294 Door Latch Actuator Unlock Control
8 BN 294 Door Latch Actuator Unlock Control
9 BN 294 Door Latch Actuator Unlock Control
10 BN 294 Door Latch Actuator Unlock Control
11 PK/BK 581 Power Window Supply Voltage Driver Door
12 PK/BK 581 Power Window Supply Voltage Driver Door
13 PK/BK 581 Power Window Supply Voltage Driver Door
14 PK/BK 581 Power Window Supply Voltage Driver Door
15 - - Not Used
16 OG/BK 640 Battery Positive Voltage
OG/BK 640 Battery Positive Voltage
17 OG/BK 640 Battery Positive Voltage
18 OG/BK 640 Battery Positive Voltage
19 OG/BK 640 Battery Positive Voltage
20 - - Not Used
