Front Panel

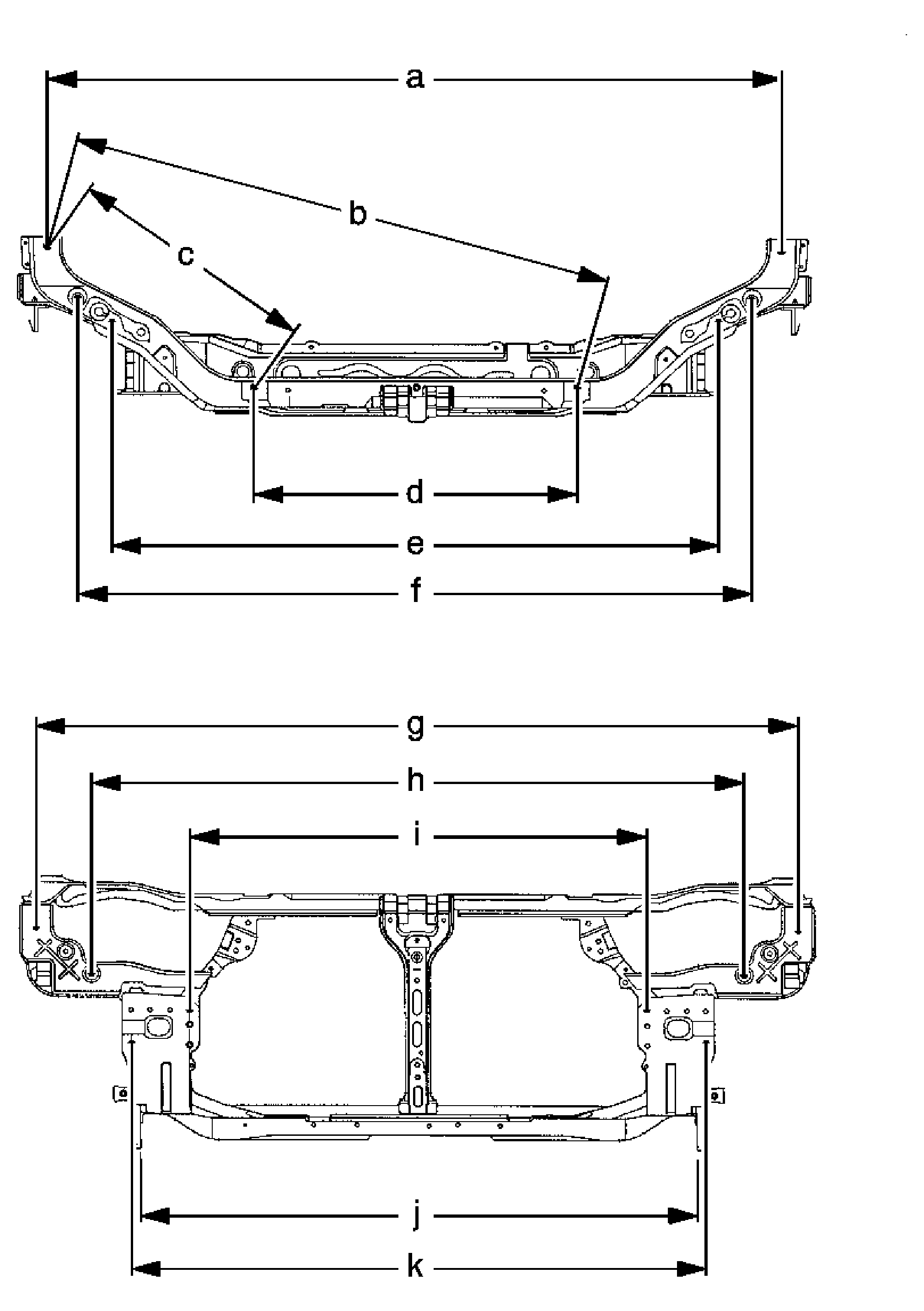

Fig 1: View Of Front Panel Body Dimensions
GM1309744Courtesy of GENERAL MOTORS CORP.
Points Dimensions (mm) Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A 1,463 57.6
B 1,094 43.1
C 499 19.6
D 648 25.5
E 1,211 47.7
F 1,345 53.0
G 1,514 59.6
H 1,298 51.1
I 916 36.0
J 1,106 43.5
K 1,146 45.1
