Back Panel Lower

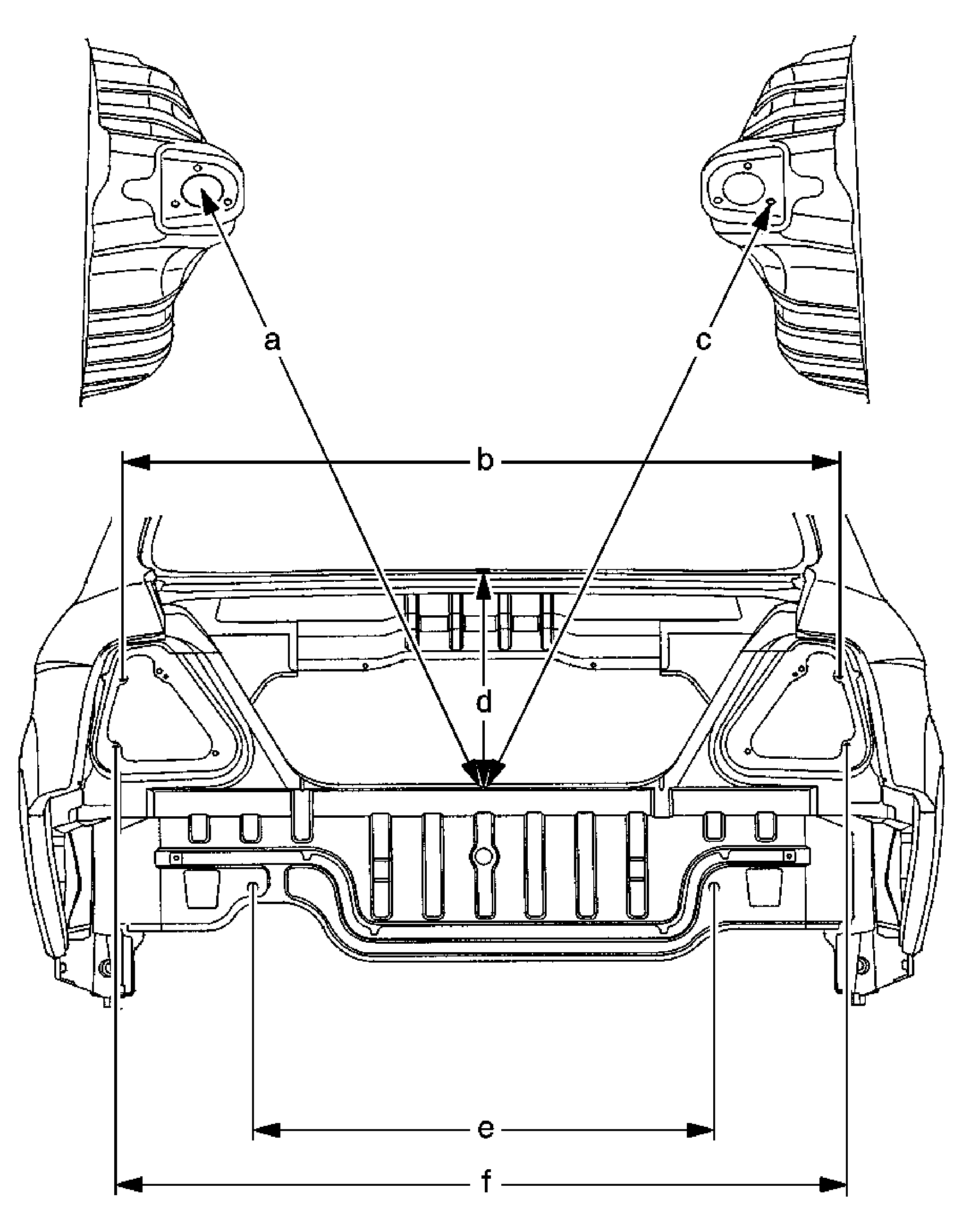

Fig 1: Identifying Lower Back Panel Dimensions
GM1308711Courtesy of GENERAL MOTORS CORP.
Points Dimension (mm) Dimension (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A 1,083 42.6
B 1,390 54.7
C 1,039 41.0
D 536 21.1
E 896 35.3
F 1,418 55.9
