Installation Procedure

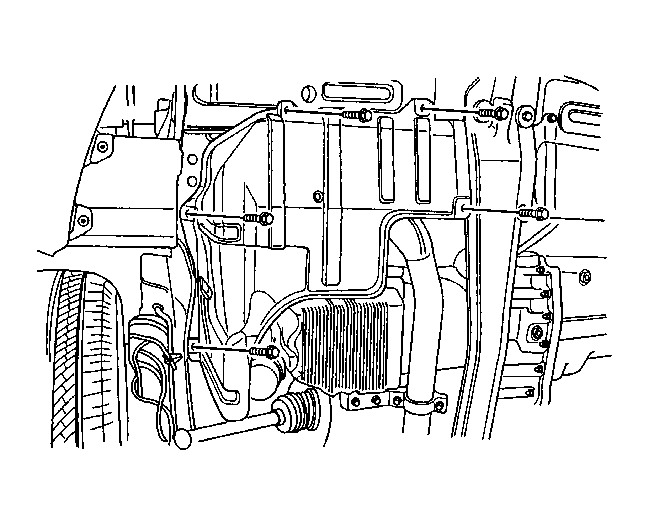

    Fig 1: View Of Engine Shield And Bolts
    GM1256785Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the engine cover with the bolts.

    Tighten:  Tighten the engine cover bolts to 10 N.m (89 lb in)  .

  2. Lower the vehicle.
