Automatic Transmission Shift Lock Control Schematics

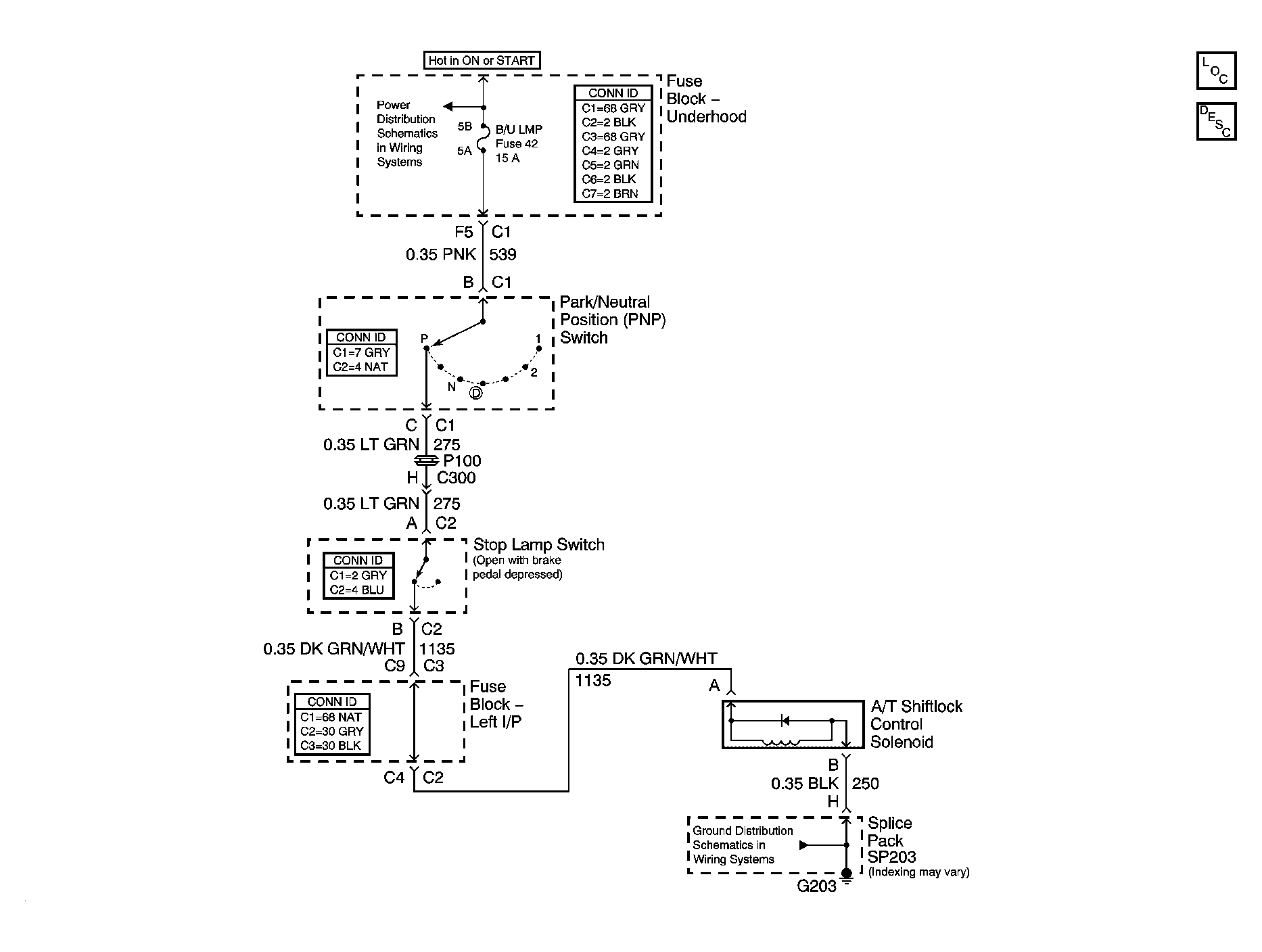

Fig 1: Automatic Transmission Shift Lock Control Schematic

GM784204

Courtesy of GENERAL MOTORS CORP.
