Harness Routing Views

Fig 1: Left Side of the Engine Compartment Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP101, G101
2	C101

Fig 2: Left Side of Engine Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP103, G103
2	Park/Neutral Position (PNP) Switch
3	C102

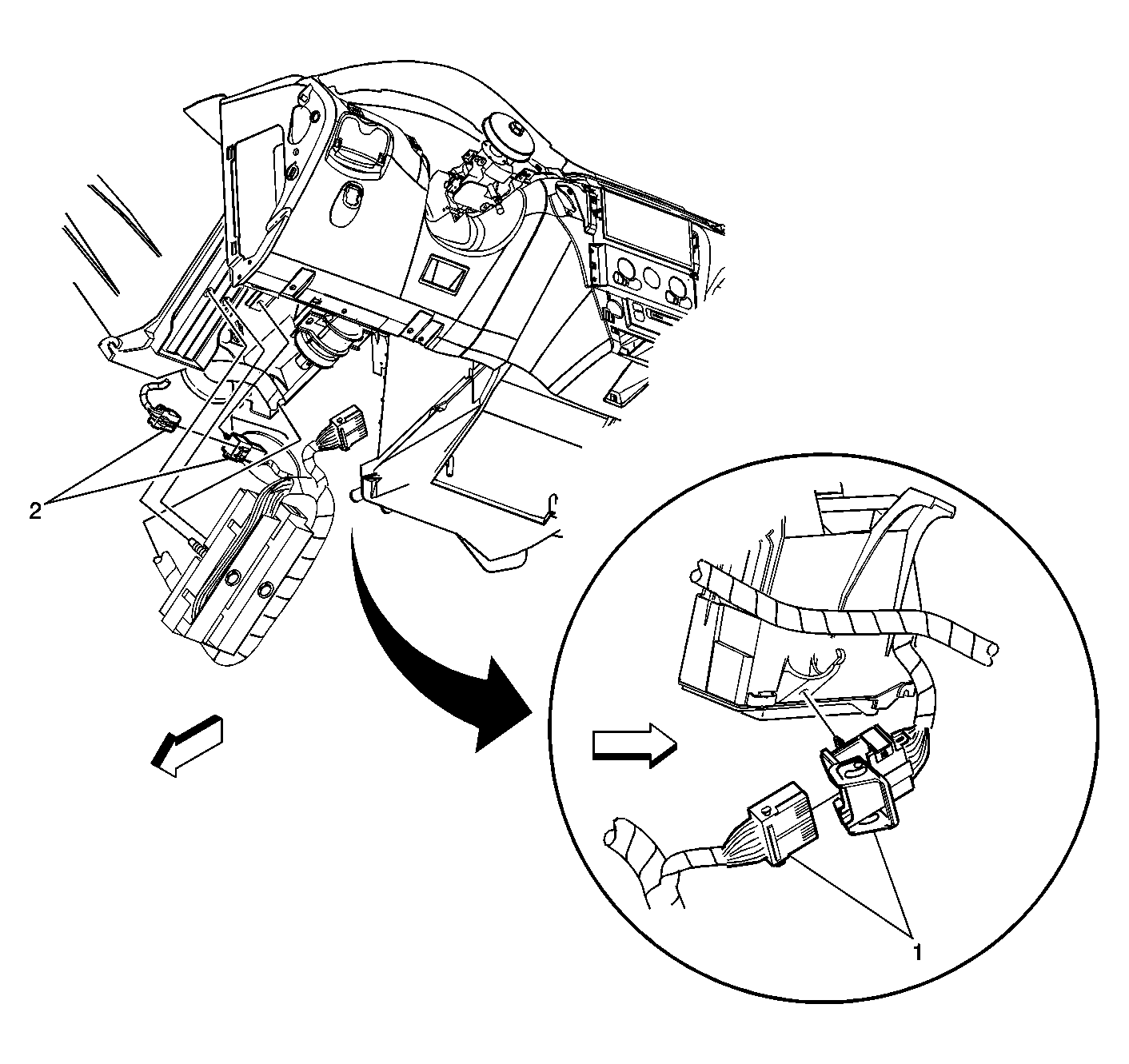

Fig 3: Below the Left Side of the IP, Near the Steering Column Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C200
2	C300

Fig 4: Steering Column Connectors Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch Connector
2	Ignition Switch Connectors
3	Passlock Cylinder Connector (If Equipped)
4	Turn/Headlamp/Wiper Switch Connectors
5	C206 (SIR Coil Harness to I/P Harness Connector)
6	SIR Coil Assembly

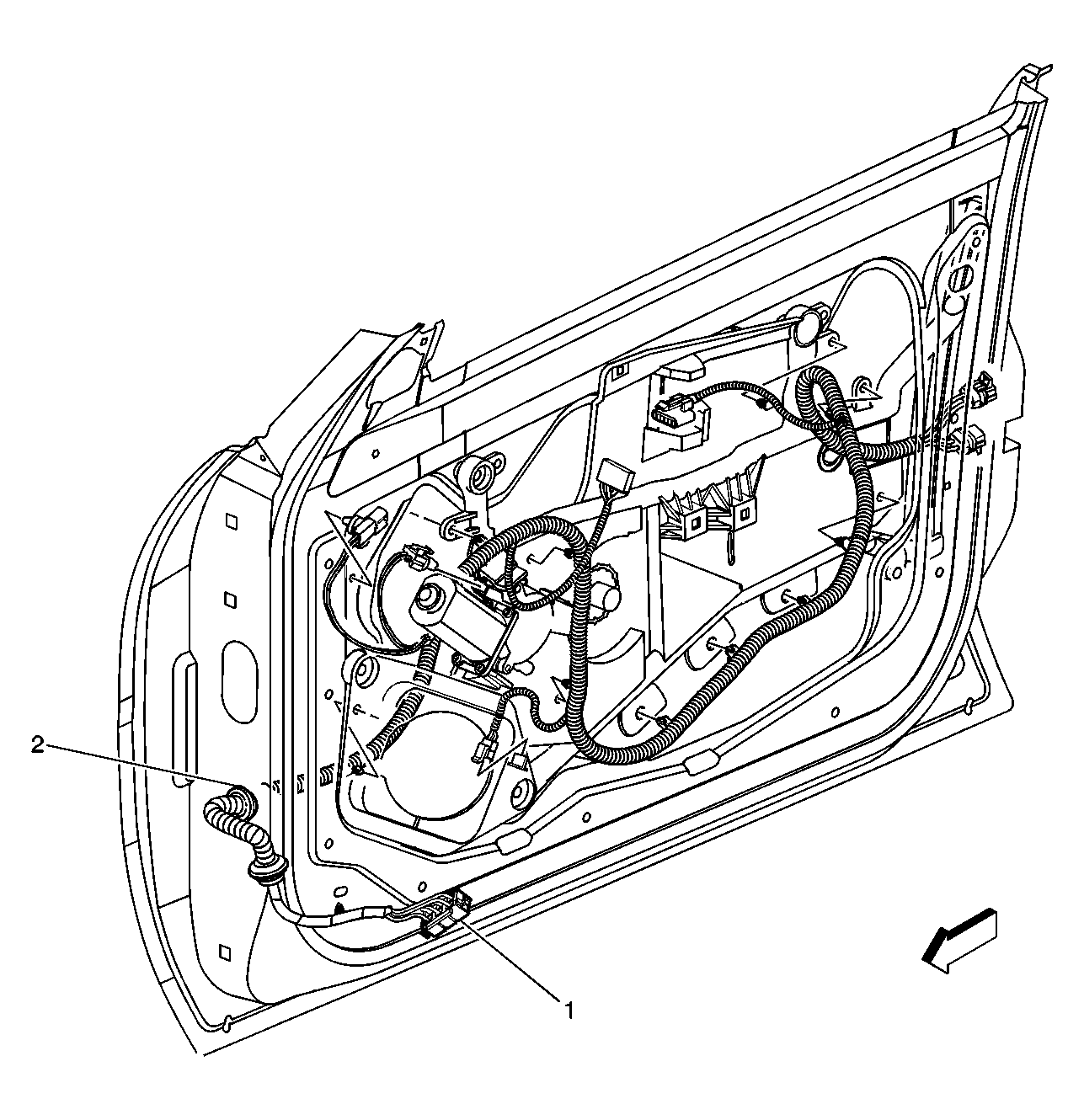

Fig 5: Left Door Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P500
2	C501
3	C500

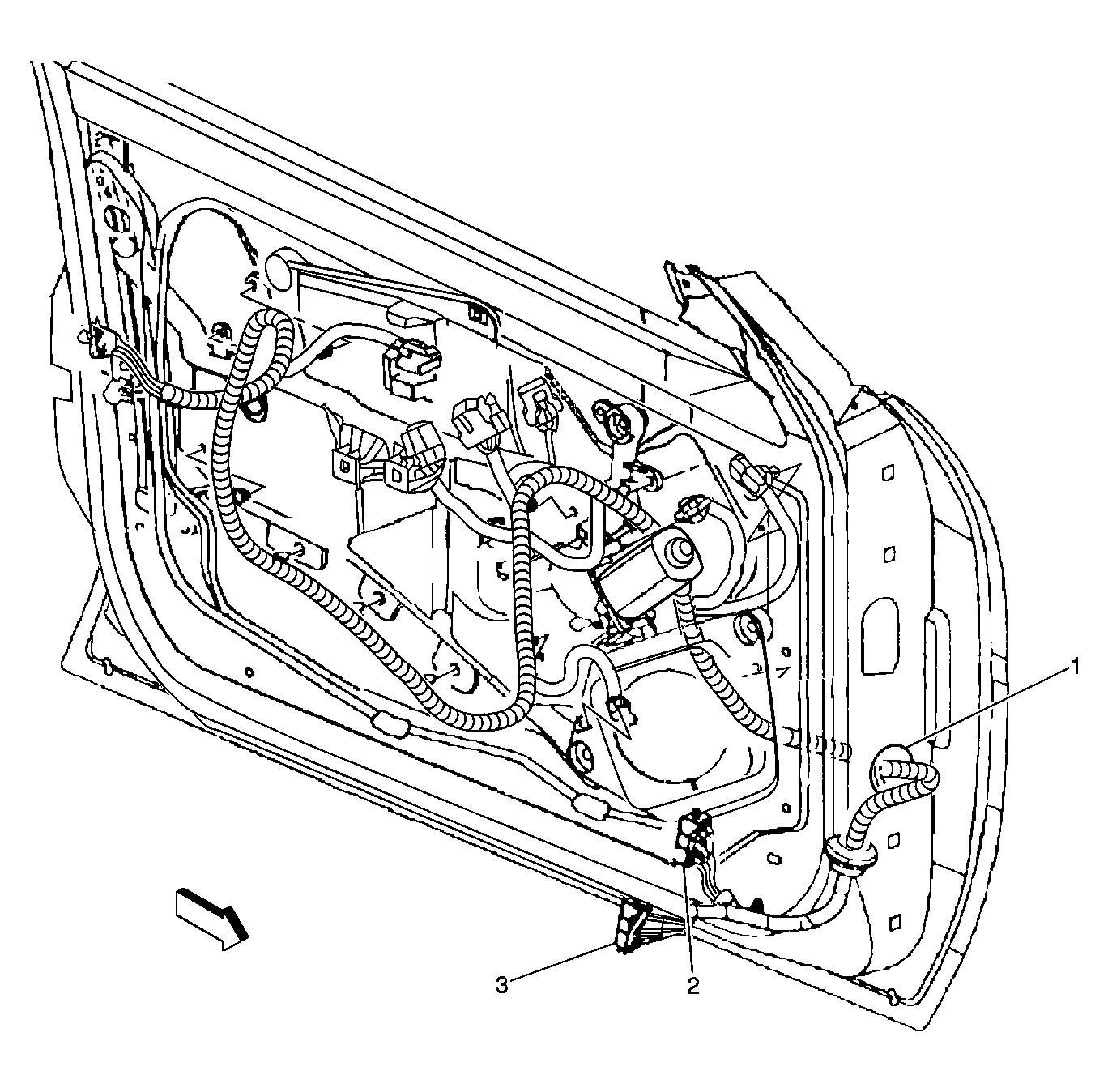

Fig 6: Right Door Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C600
2	P600

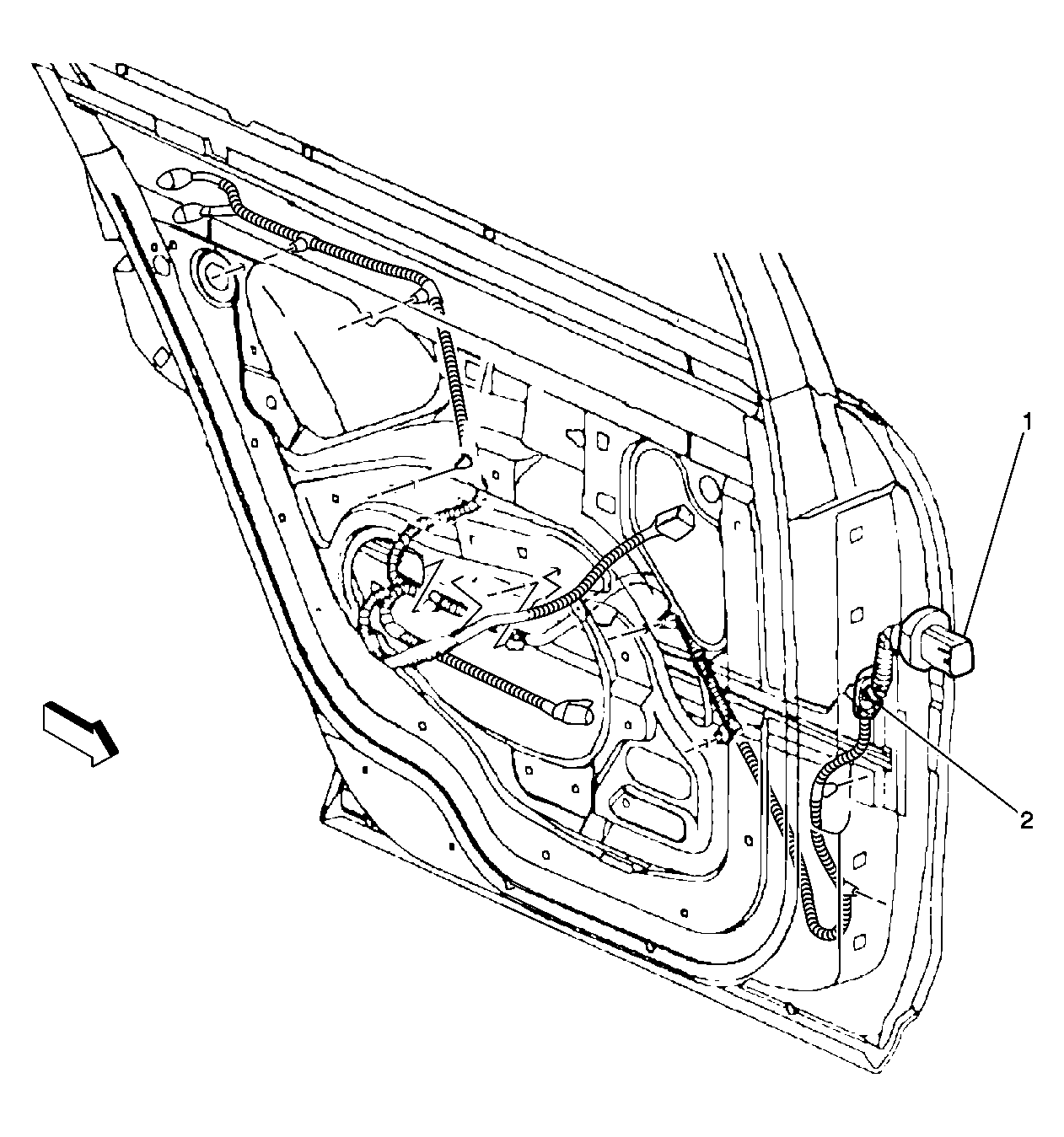

Fig 7: Left Rear Door (Right Rear Door Similar) Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C700
2	P700

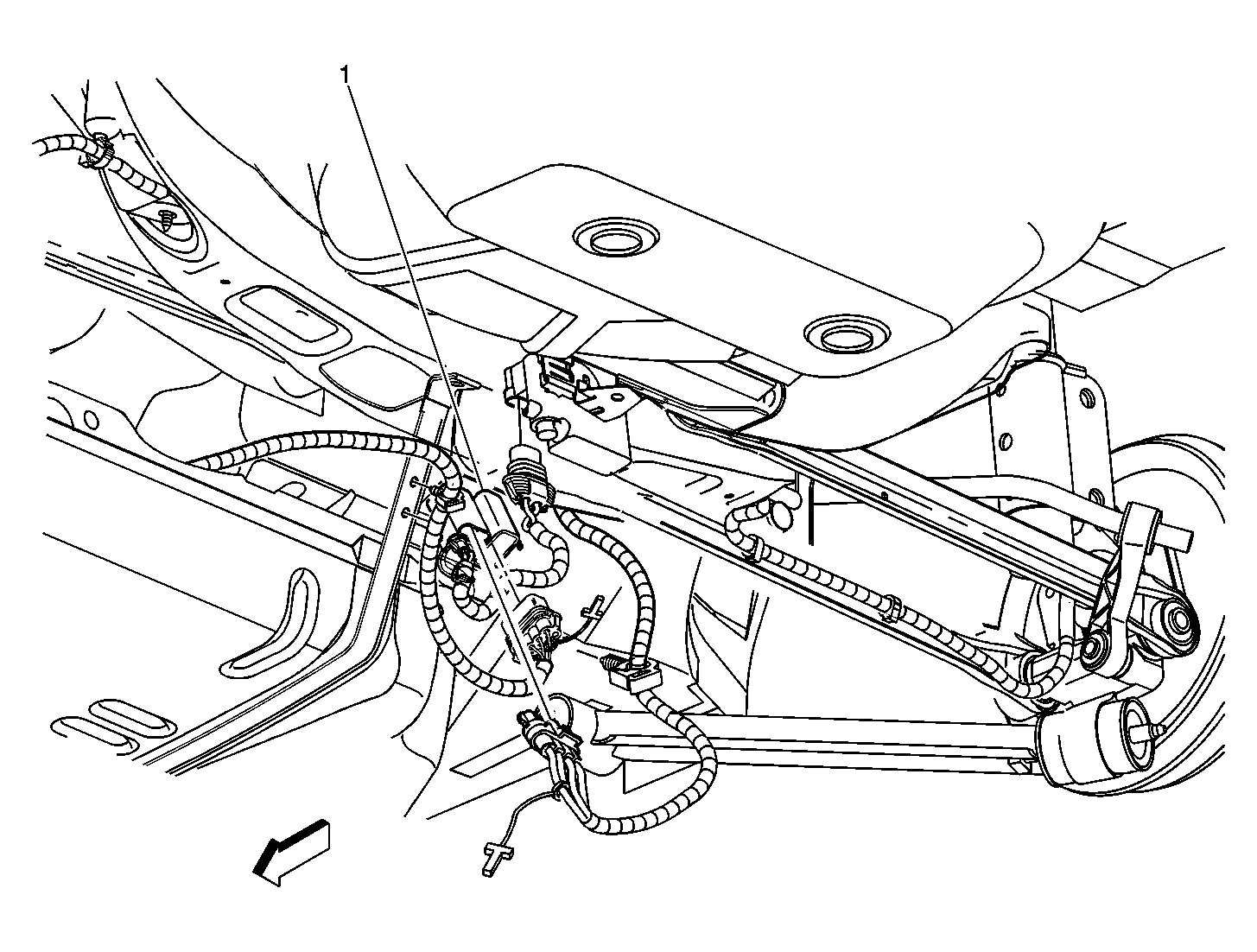

Fig 8: Under the Rear of the Vehicle Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C413

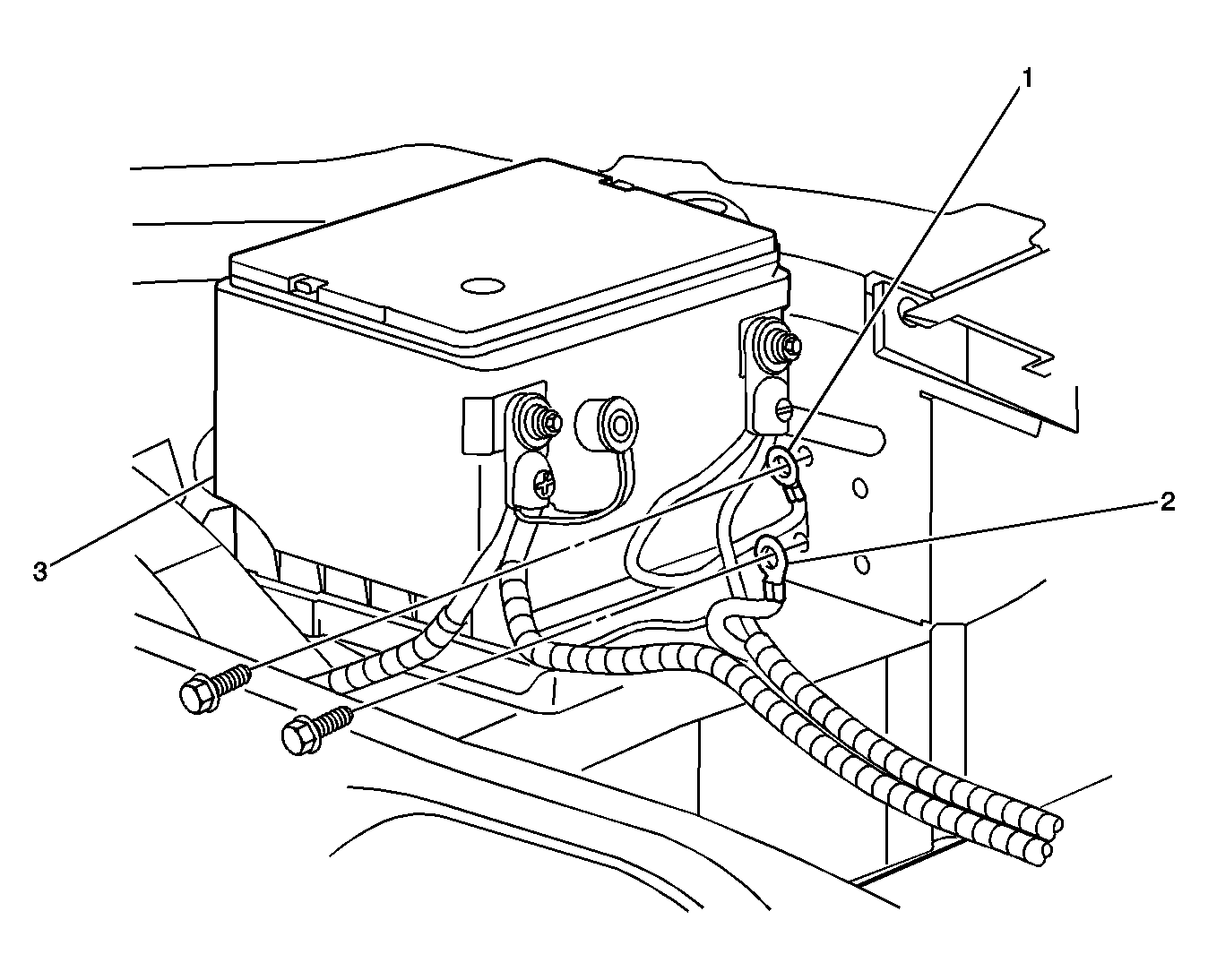

Fig 9: Left Side of Engine Compartment Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	G105 (Prior to 2004 model year)
3	Battery

Fig 10: Front of Engine Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP102, G102

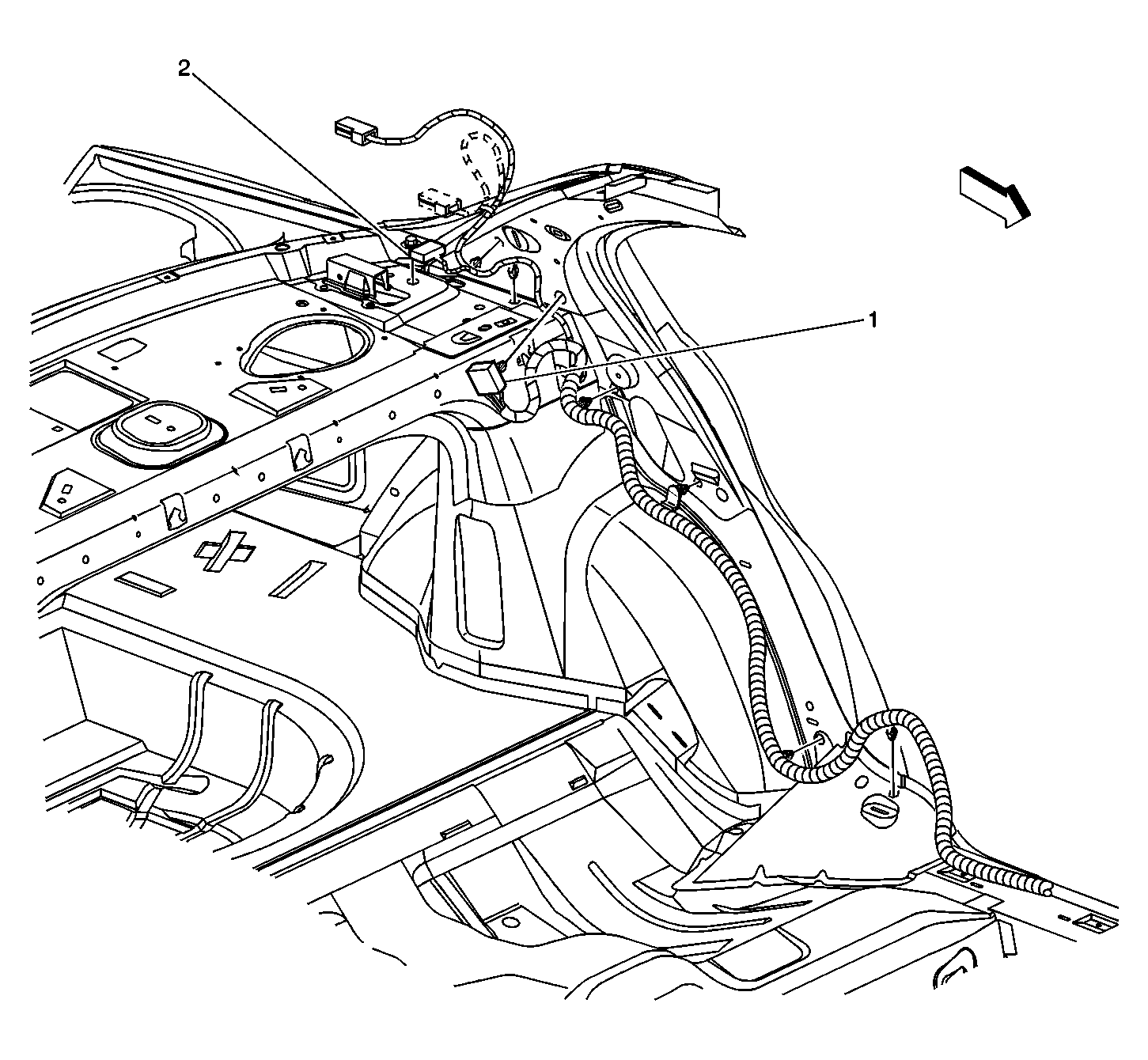

Fig 11: Right Side of the Passenger Compartment, Rear Package Shelf Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C413
2	SP402, G402

Fig 12: Under the Right Side of the Instrument Panel Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Resistor Connector
2	Blower Motor
3	Fuse Block - Right IP
4	Inflatable Restraint IP Module Connector
5	SP204, G204 (Prior to 2004 Model Year)
6	SP203, G203
7	Right Courtesy Lamp
8	Body Control Module (BCM)

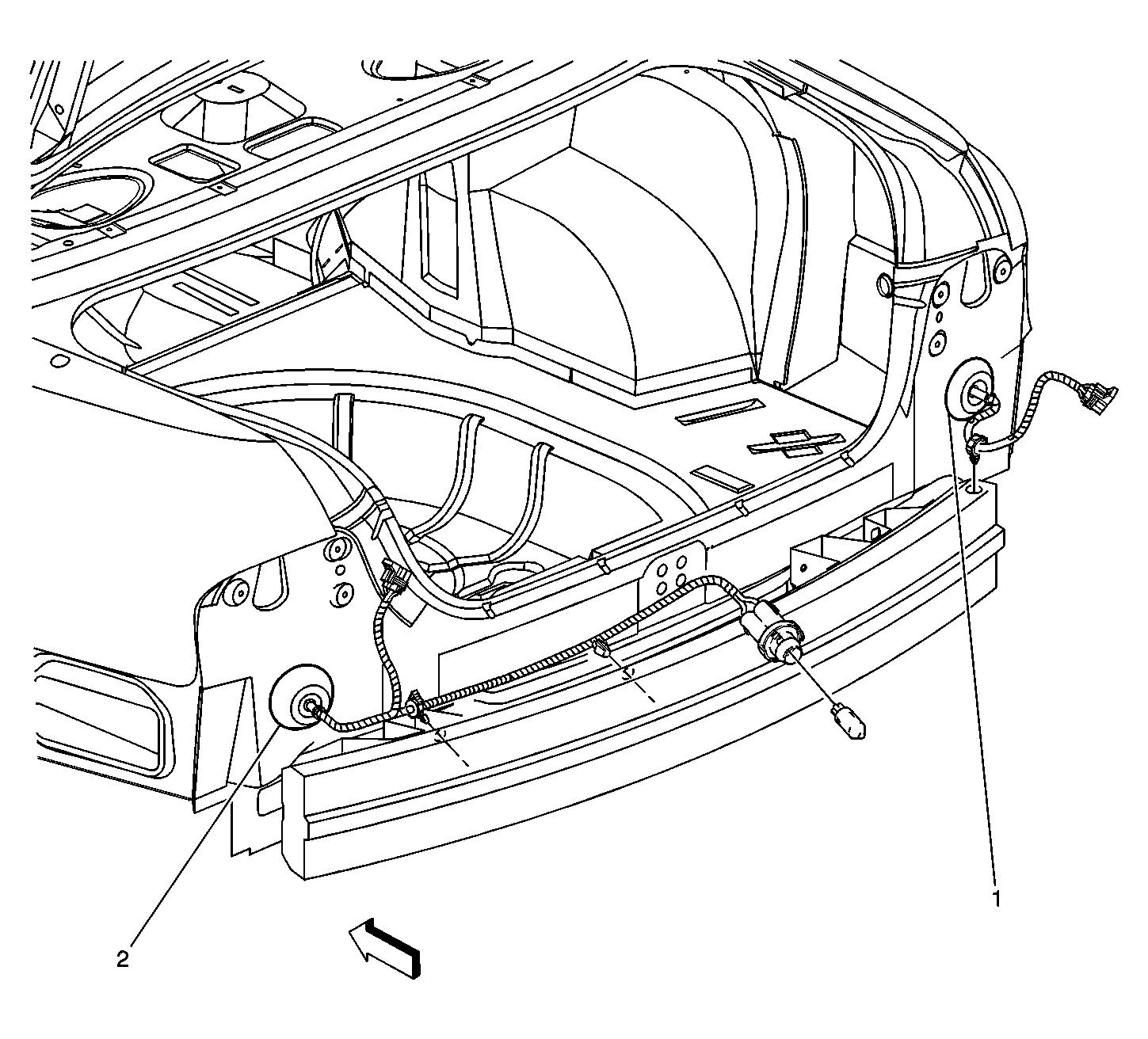

Fig 13: Rear Impact Bar Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P450
2	P400

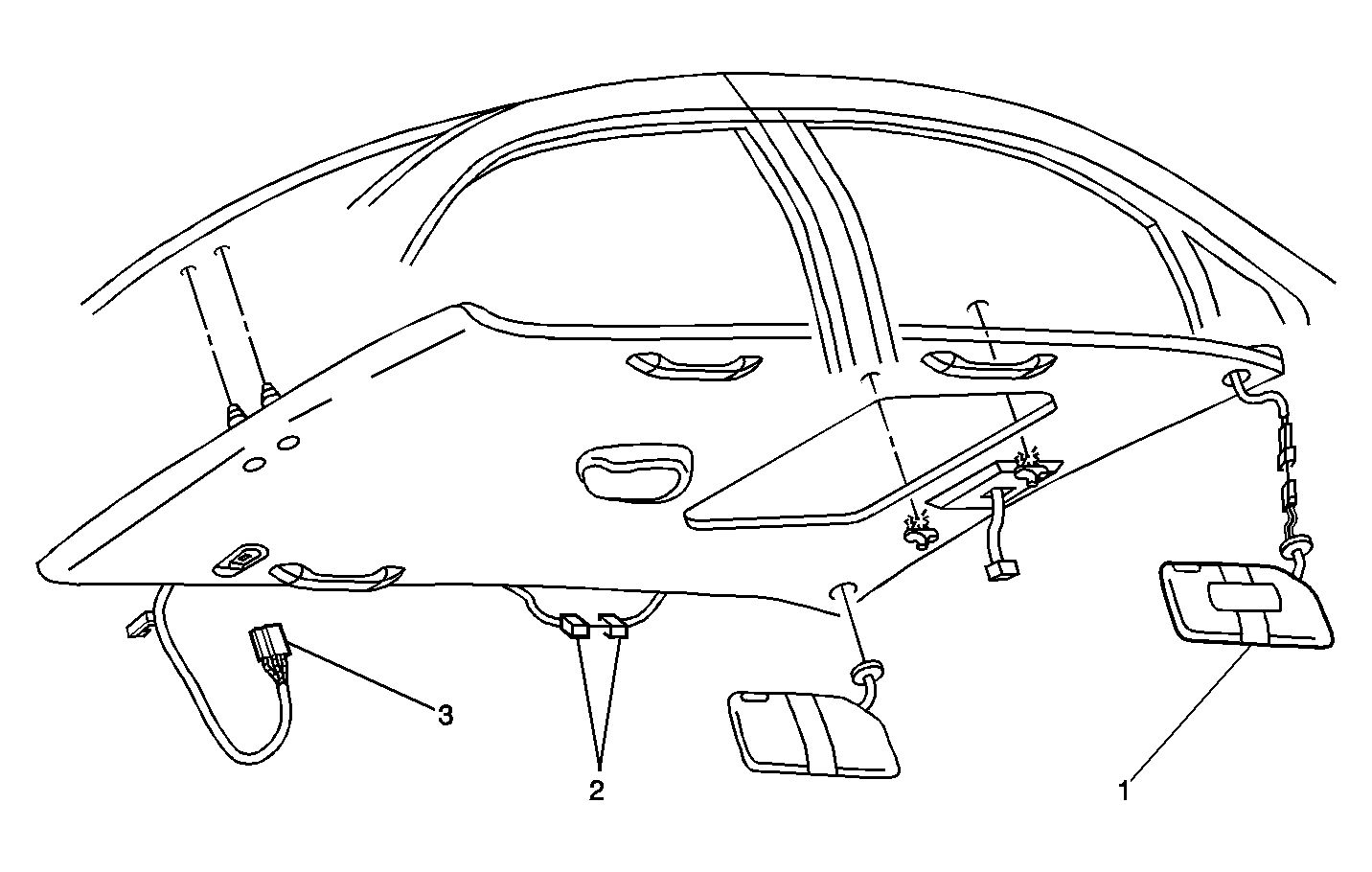

Fig 14: Headliner Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp - Right
2	C301
3	C400

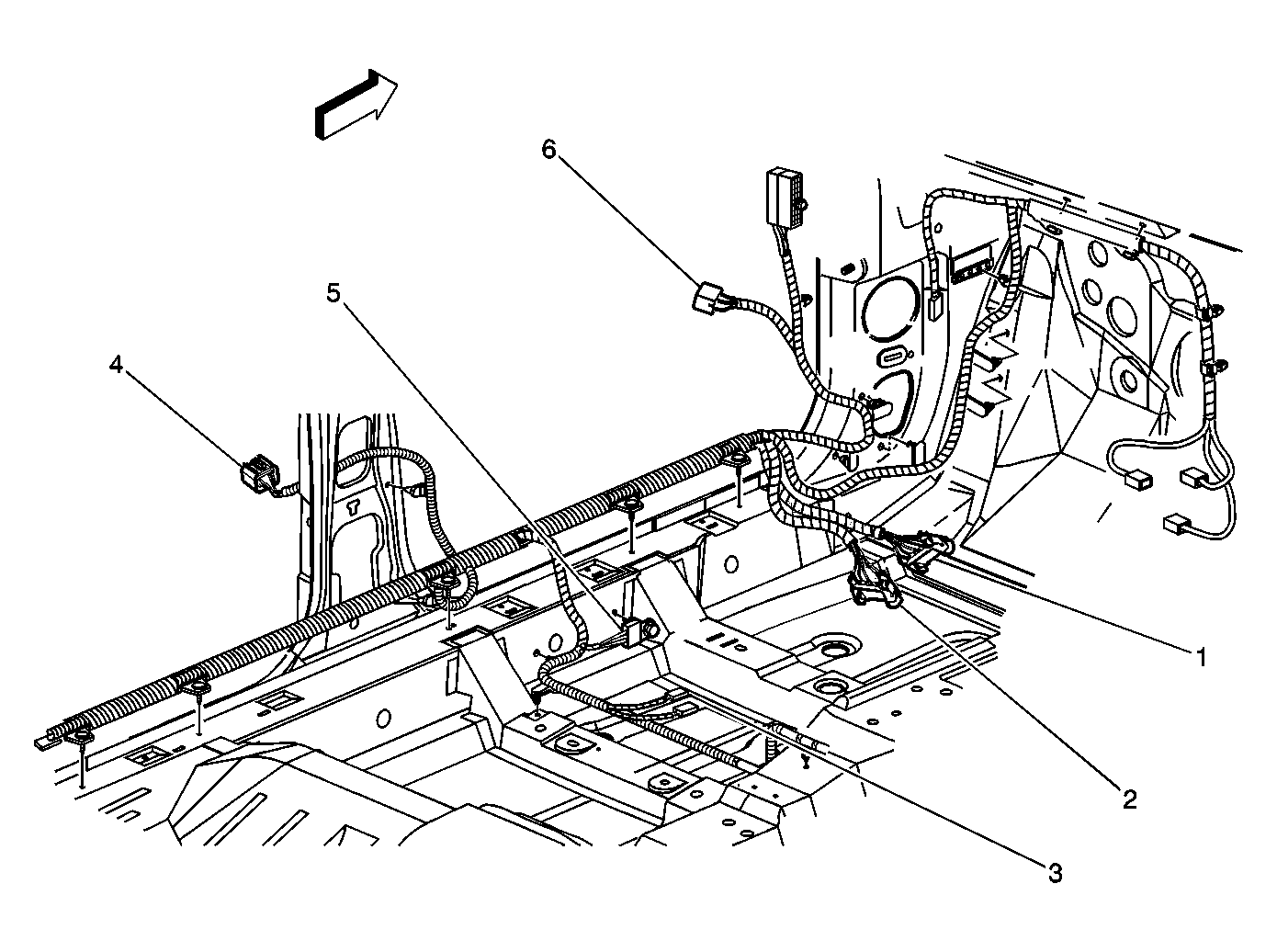

Fig 15: Left Side of the Passenger Compartment Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C500
2	C501
3	Seat Belt Buckle Connector
4	C700
5	SP301
6	C300

Fig 16: Left Side of the Passenger Compartment Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C400
2	SP401

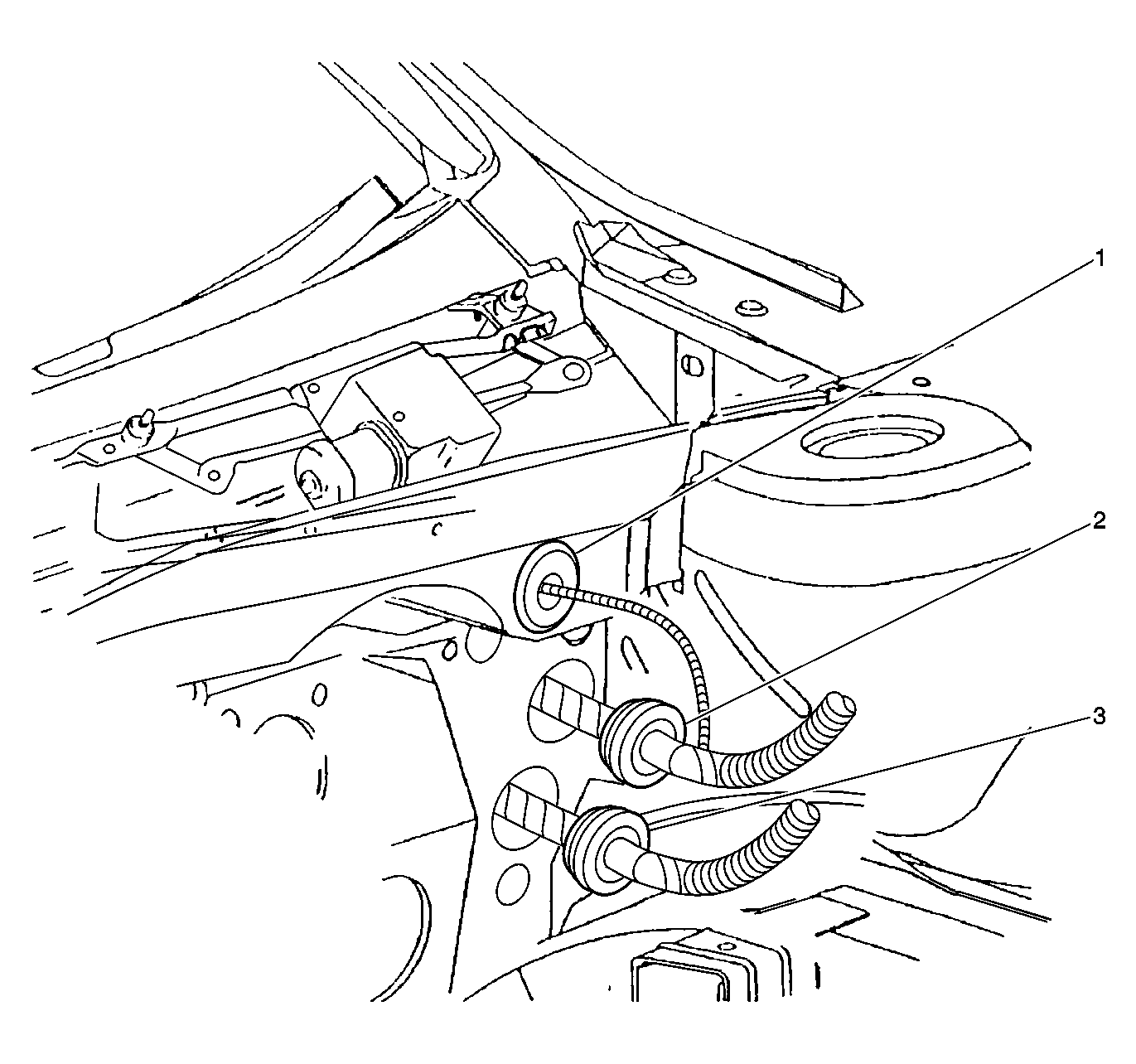

Fig 17: Rear of the Engine Compartment Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P101
2	P200
3	P100

Fig 18: IP Wiring Harness Junction Block, Right Side Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP302, G302
2	C800
3	SP303
4	C600

Fig 19: Left Side of the IP Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C274, Inflatable Restraint Steering Wheel Module Connector
2	SP201, G201
3	SP202, G202
