Fuse Block - Left I/P - Top View

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

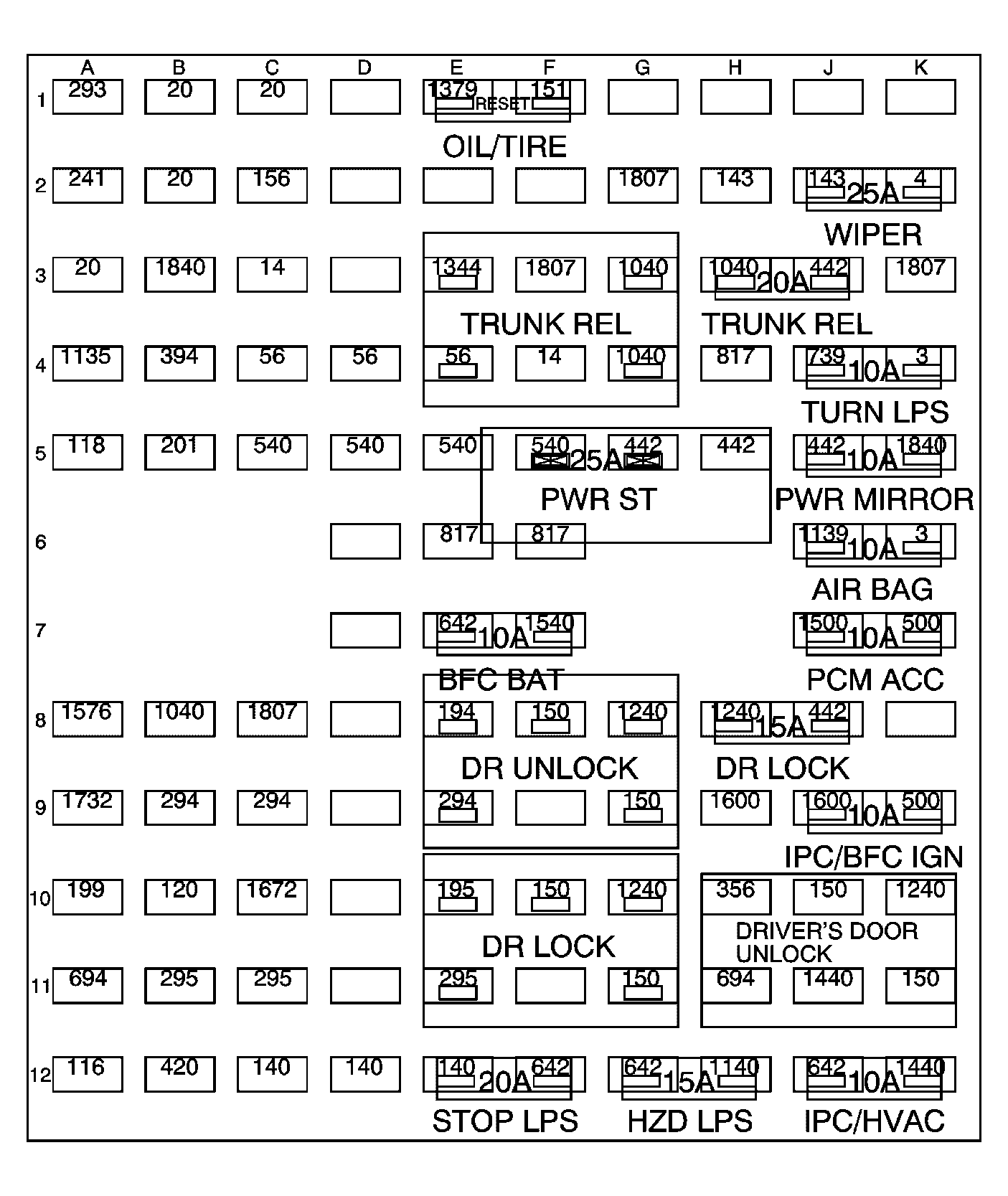

Fig 1: Fuse Block - Left I/P - Top View
GM812186Courtesy of GENERAL MOTORS CORP.
