Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

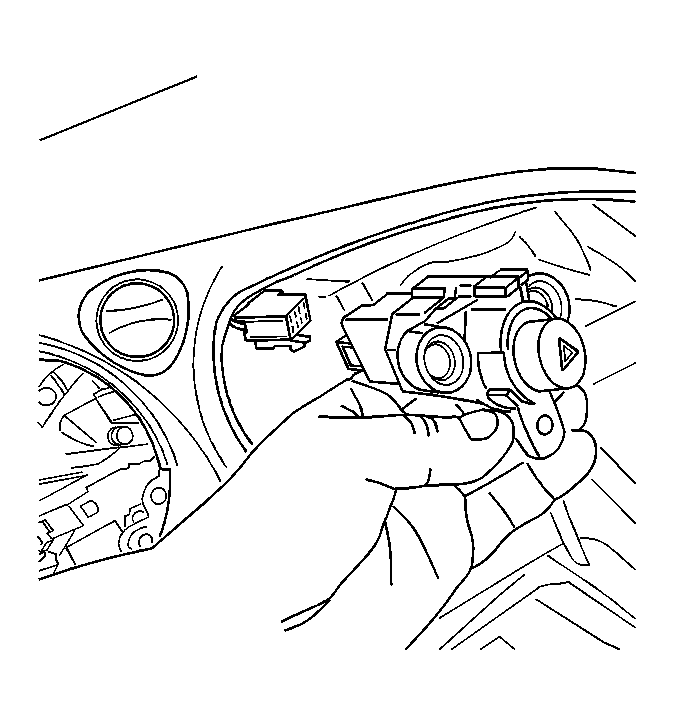

Fig 1: View Of Hazard Warning Switch & Electrical Connectors (Oldsmobile)

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the hazard warning switch.

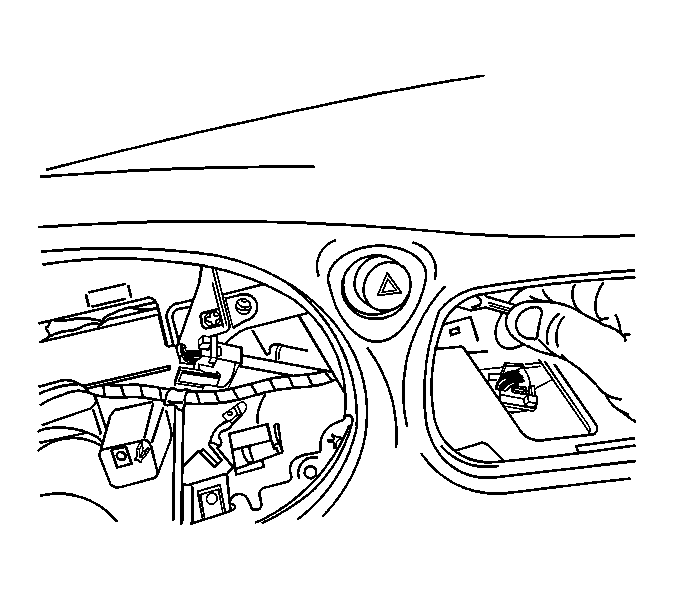

Fig 2: View Of Hazard Warning Switch & Center Air Outlet Opening (Oldsmobile)

Courtesy of GENERAL MOTORS CORP.

Position the hazard warning switch to the mounting points in the I/P.

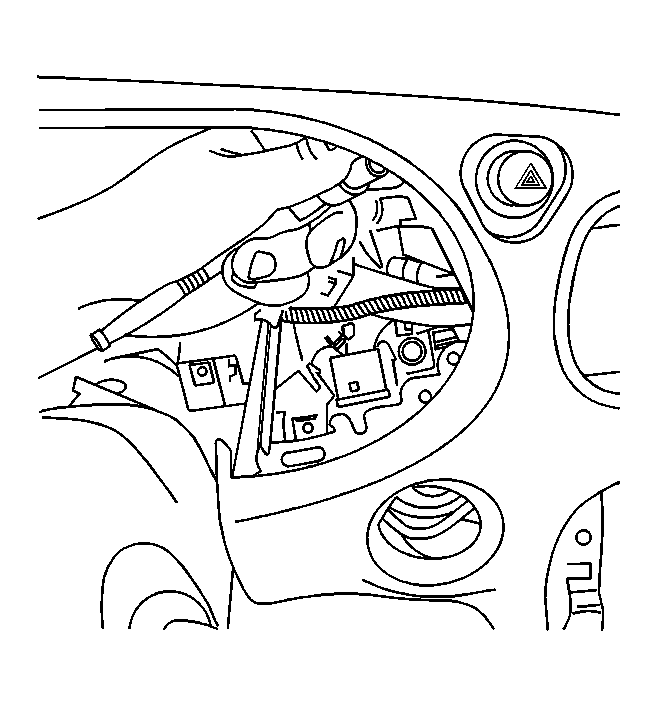

Fig 3: View Of Hazard Warning Switch & Bolts (Oldsmobile)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the left side bolt to the hazard warning switch through the I/P cluster pocket.
Tighten: Tighten the bolt to 3 N.m (27 lb in).

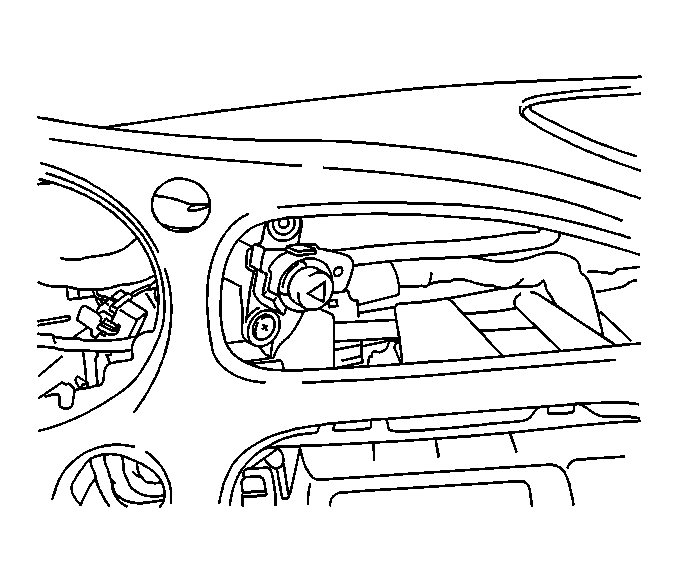

Fig 4: View Of Center Air Outlet Opening (Oldsmobile)

Courtesy of GENERAL MOTORS CORP.

Install the right side and center lower bolts to the hazard warning switch through the center air outlet opening.
Tighten: Tighten the bolt to 3 N.m (27 lb in).
Install the I/P cluster. Refer to Instrument Panel Cluster (IPC) Replacement in Instrument Panel, Gages and Console.
Install the I/P center air outlet. Refer to Air Outlet Replacement - Instrument Panel - Center (Pontiac) or Air Outlet Replacement - Instrument Panel - Center (Oldsmobile) in Heating, Ventilation and Air Conditioning.

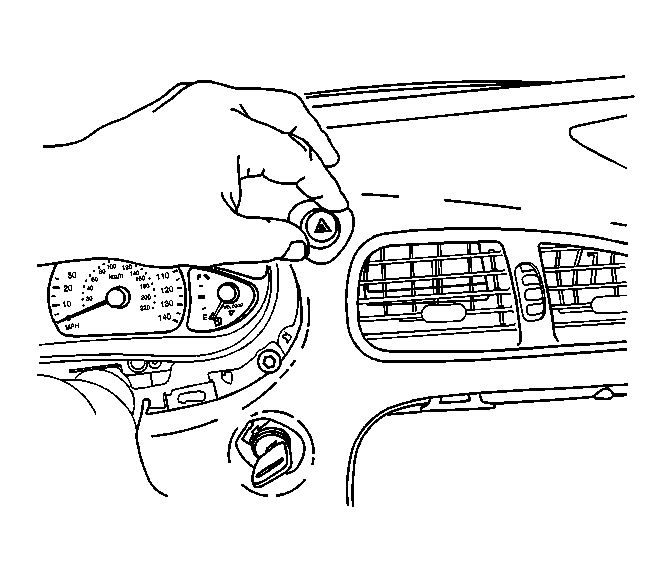

Fig 5: Installing Hazard Warning Switch Bezel To The I/P (Oldsmobile)

Courtesy of GENERAL MOTORS CORP.

Install the hazard warning switch bezel to the I/P. Press the bezel into place until fully seated.
