Removal Procedure

  1. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  2. Remove the rear window. Refer to Window Replacement - Rear Door .
  3. Disconnect the rear window regulator motor electrical connector.

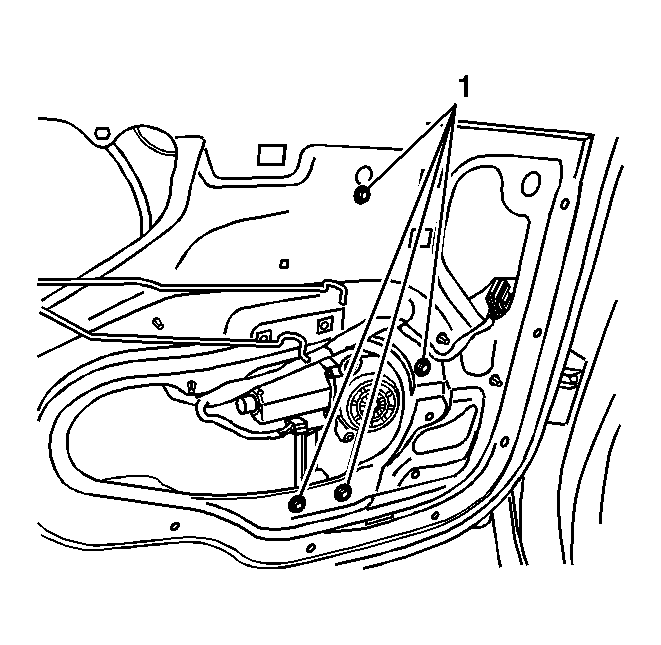

    4. Fig 1: Identifying Rear Window Regulator Bolts
    GM748079Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear window regulator bolts (1).

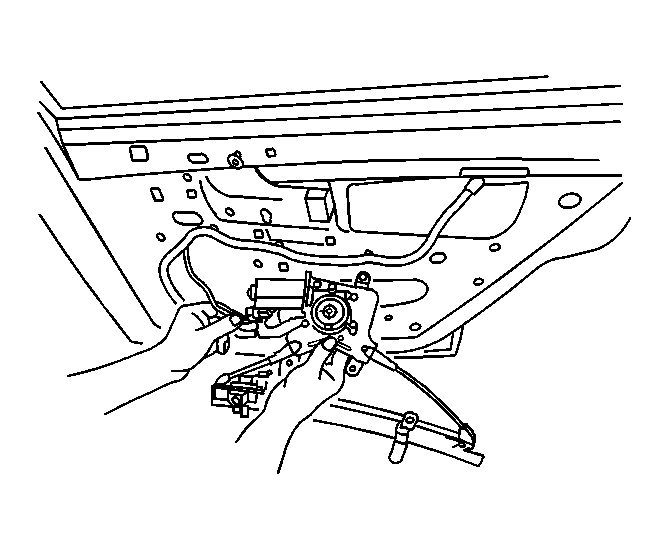

    5. Fig 2: View of Rear Window Regulator
    GM736565Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear window regulator from the door.
