Removal Procedure

  1. Remove the front door trim panel insert from the door. Refer to Trim Panel Insert Replacement - Front Door .
  2. Remove the front door handle bezel. Refer to Door Handle Bezel Replacement .
  3. Remove the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
  4. Use a flat bladed tool in order to remove the inside door pull handle plug.
  5. Remove the door trim panel screws from under the inside pull handle.

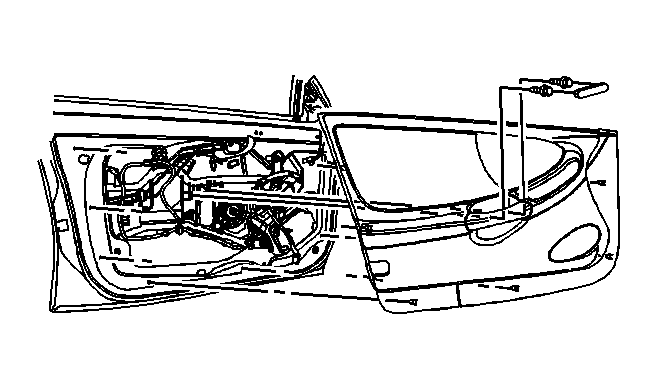

    6. Fig 1: View of Door Trim Panel
    GM747994Courtesy of GENERAL MOTORS CORP.
  6. Remove the window regulator handle, if equipped. Refer to Window Regulator Handle Replacement - Door .
  7. Using J 38778  and starting at the door bottom, disengage the door trim panel retainers. See Special Tools and Equipment .
  8. Lift up on the door trim panel to disengage it from the inner belt molding.
  9. Remove the door trim panel from the door.
