Removal Procedure

  1. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
    2. Fig 1: View Of Door Hinge & Door Check
    GM737652Courtesy of GENERAL MOTORS CORP.
  2. Remove the check link bolt.

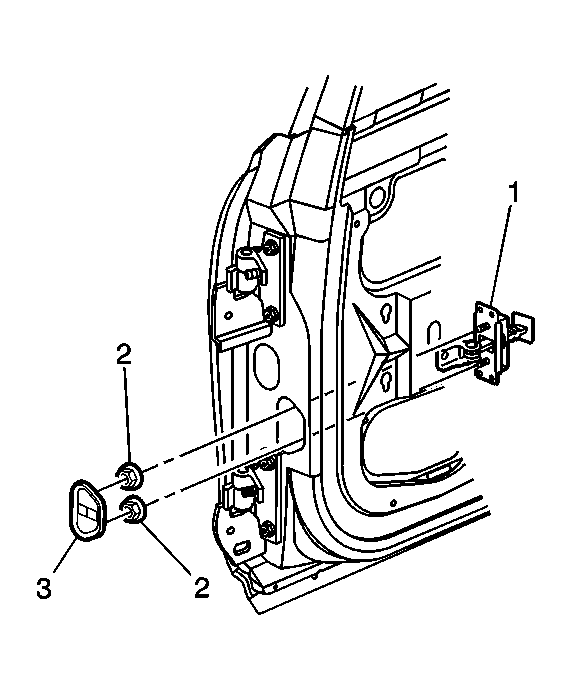

    3. Fig 2: View of Rear Door Check Link
    GM276409Courtesy of GENERAL MOTORS CORP.
  3. Using a small flat-bladed tool, remove the rear door check link grommet (3).
  4. Remove the check link nuts (2).
  5. Remove the check link from the rear door.
