Cruise Control Schematics

Fig 1: Power, Ground and Switch
GM783091Courtesy of GENERAL MOTORS CORP.

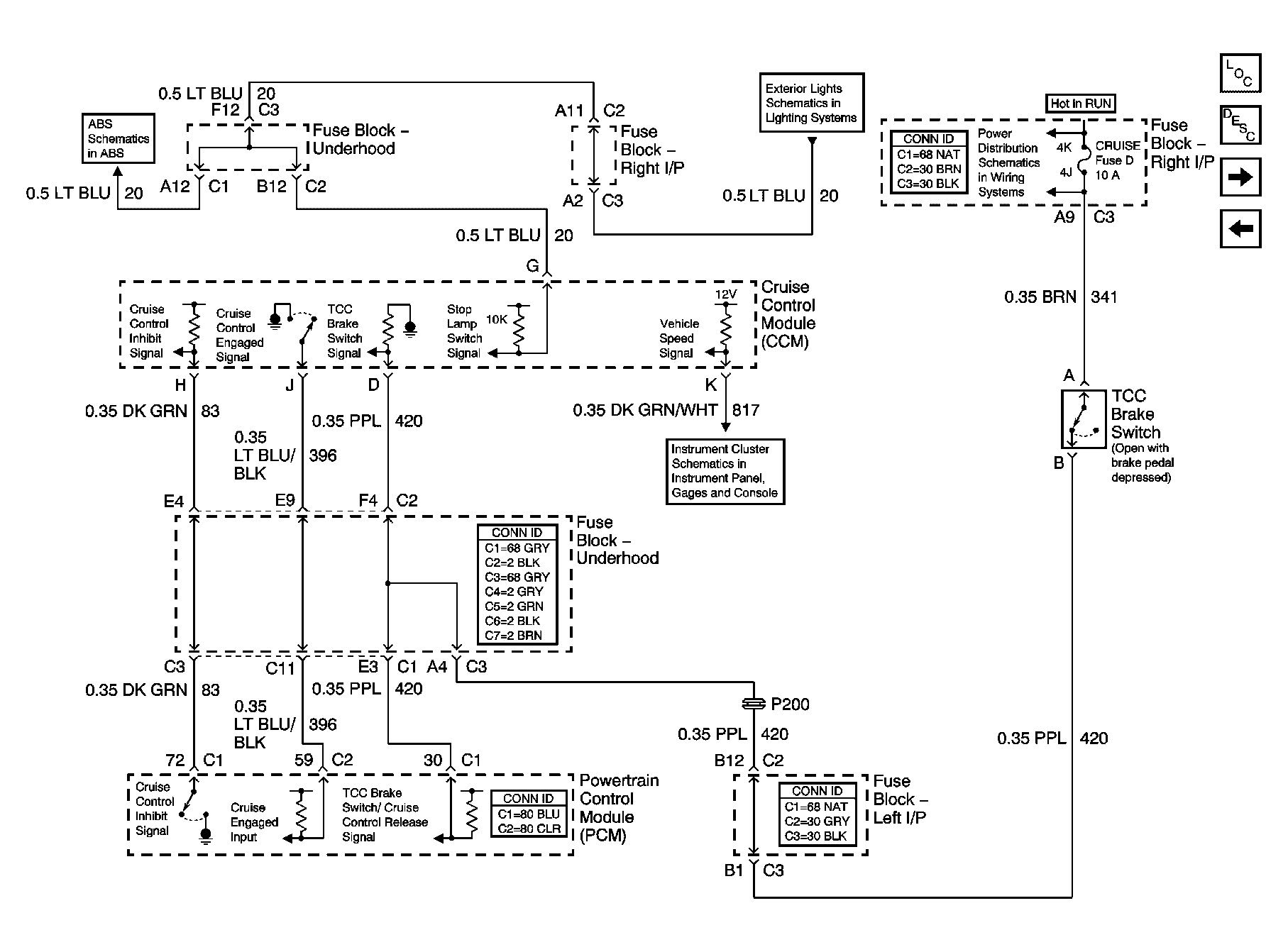

Fig 2: Brake Switch and Inhibit Signals
GM783088Courtesy of GENERAL MOTORS CORP.

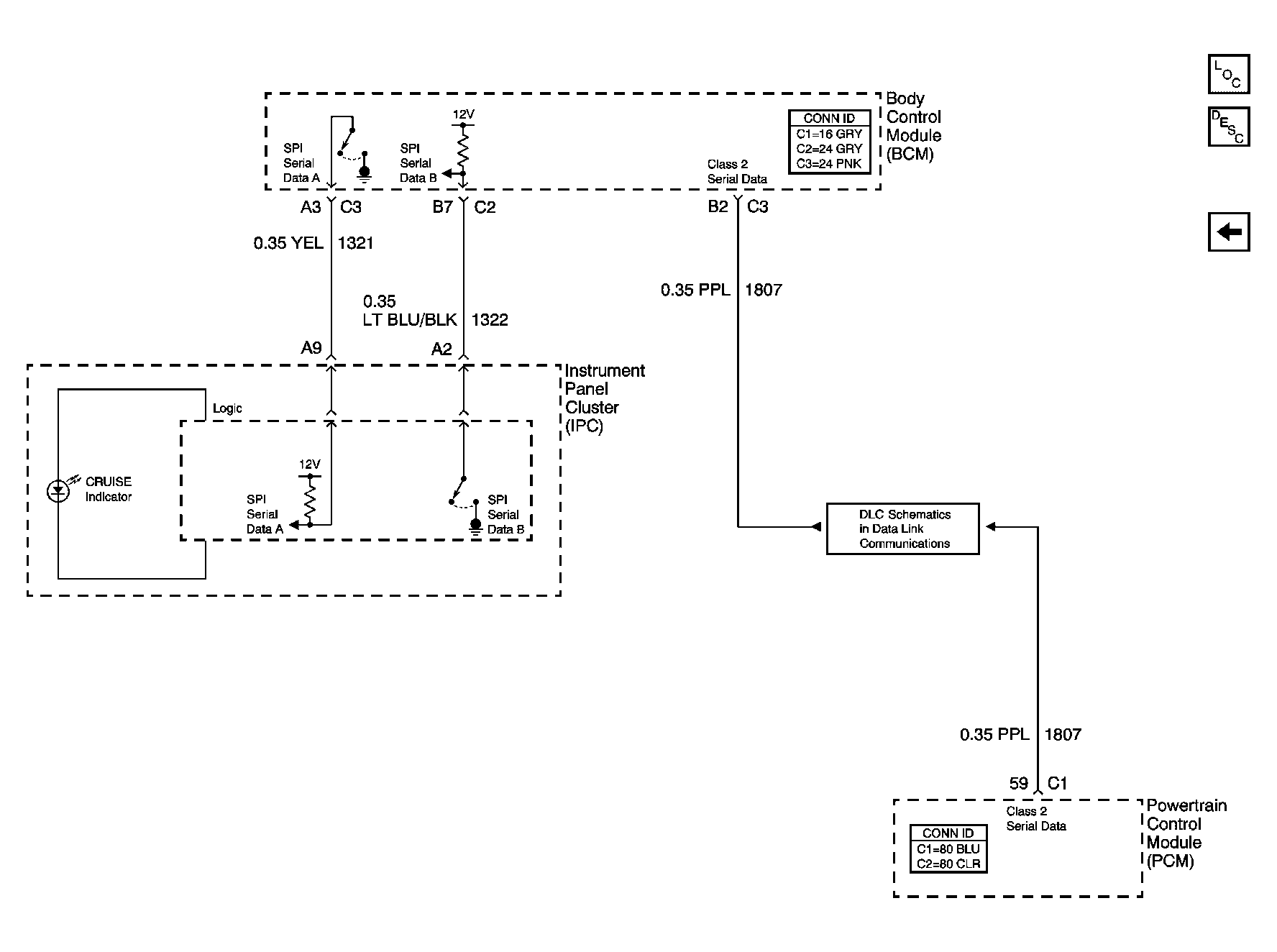

Fig 3: Cruise Control Indicator
GM800530Courtesy of GENERAL MOTORS CORP.
