Rear Window Defogger Grid Connector End Views

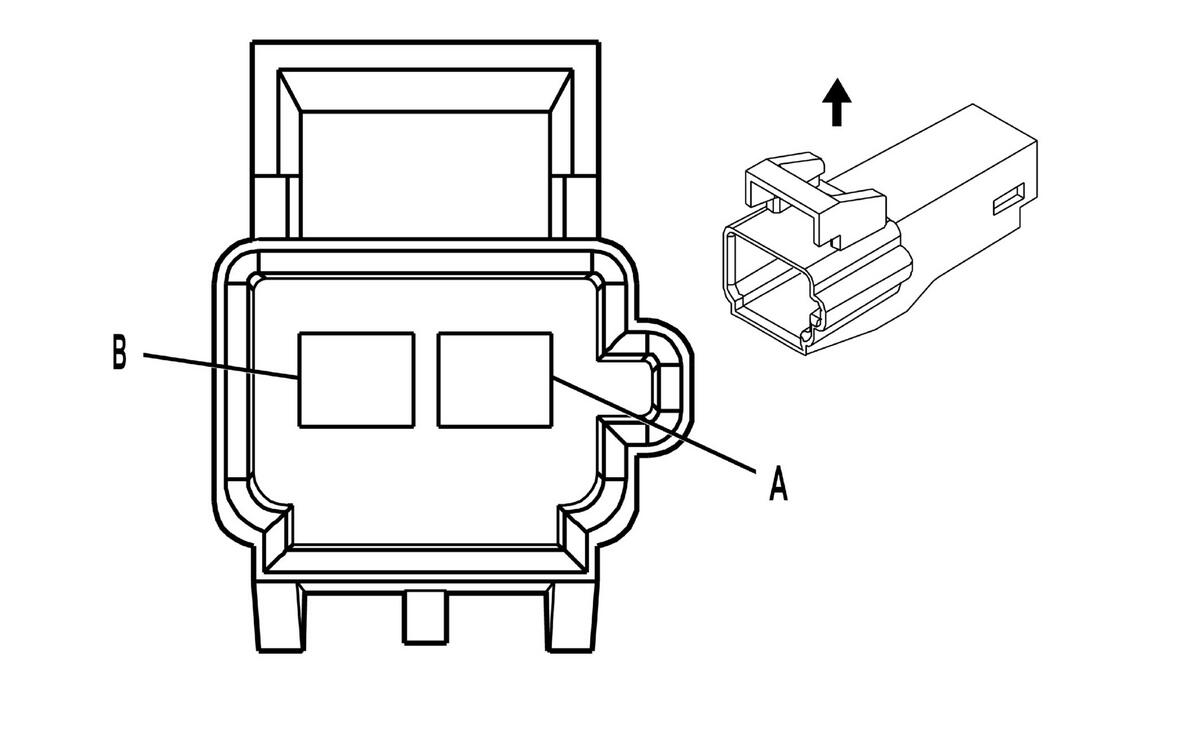

Rear Window Defogger Grid - Left (C49)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12129156 2-Way M Metri-Pack 280 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	PU	293	Rear Defog Element Supply Voltage
B	BK	850	Ground

Rear Window Defogger Grid - Right (C49)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12129156 2-Way M Metri-Pack 280 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	PU	293	Rear Defog Element Supply Voltage
B	BK	1050	Ground
