Installation Procedure

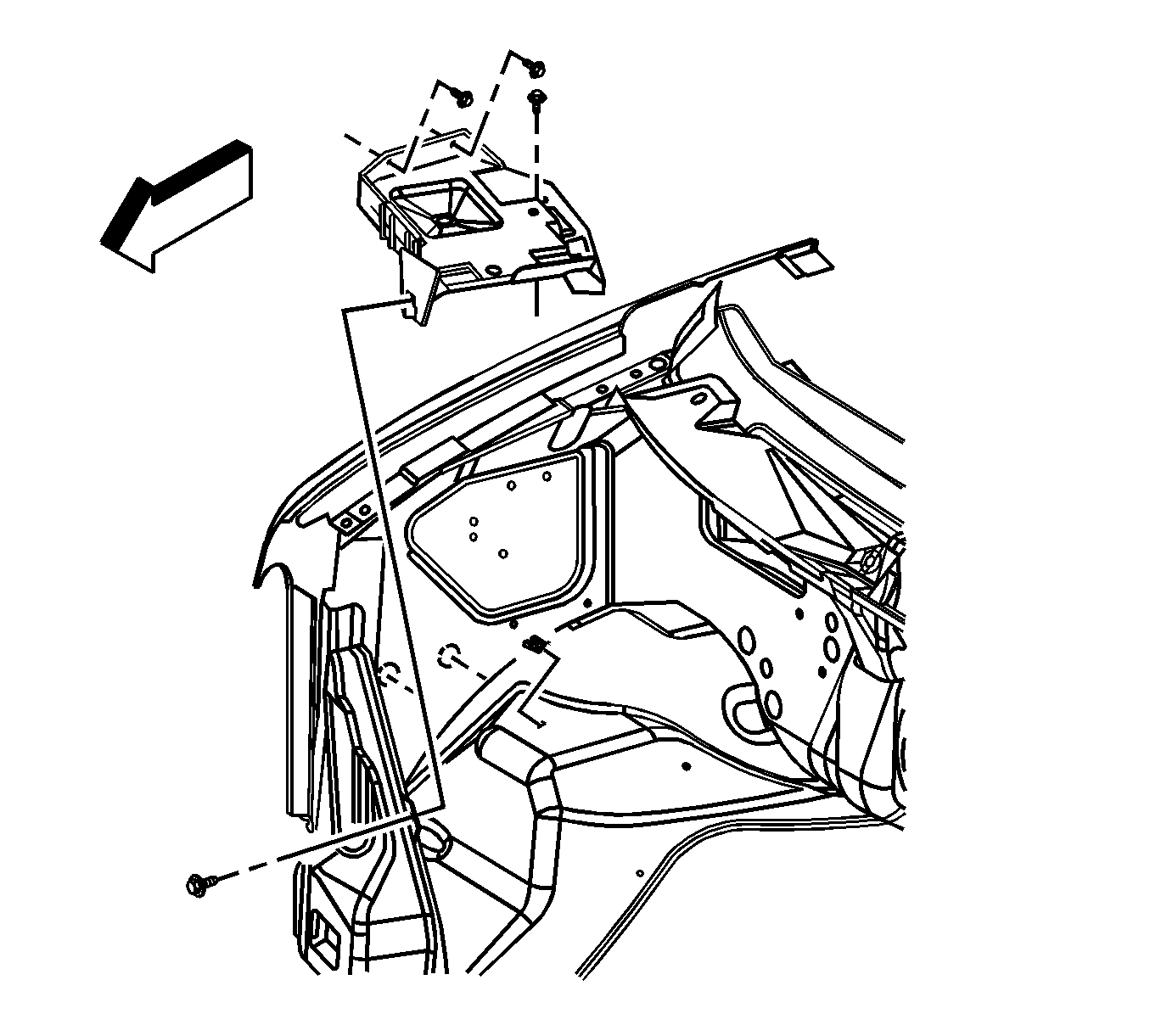

Fig 1: Removed Battery Tray And Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the battery tray to the vehicle.
Install the battery tray bolts.
Tighten: Tighten the battery tray bolts to 25 N.m (18 lb ft).

Fig 2: Removed Battery, Battery Hold-Down Retainer Bolt And Retainer

Courtesy of GENERAL MOTORS CORP.

Install the battery.
Install the battery hold-down retainer and bolt.
Tighten: Tighten the battery hold-down retainer bolt to 25 N.m (18 lb ft).

Fig 3: Battery Disconnect

Courtesy of GENERAL MOTORS CORP.

Install the positive battery cable to the battery with the battery terminal bolt.
Tighten: Tighten the battery terminal bolt to 17 N.m (13 lb ft).
Install the battery negative cable to the battery with the battery terminal bolts. Refer to Battery Negative Cable Disconnect/Connect Procedure .
Tighten: Tighten the battery terminal bolt to 17 N.m (13 lb ft).
Install the coolant recovery reservoir.
Tighten: Tighten the bolt to 11 N.m (97 lb in).
