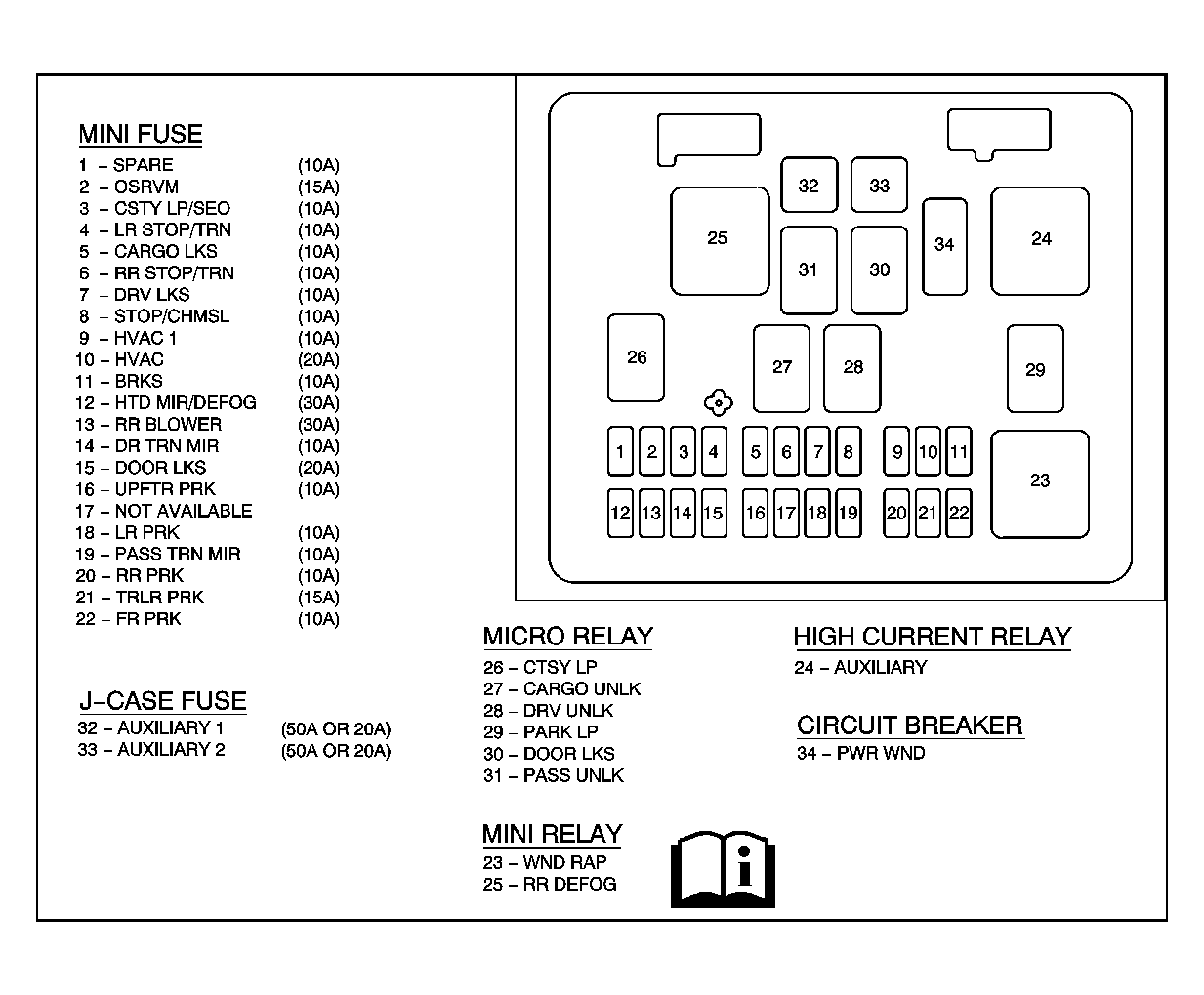

Fuse Block - Body Label
Fuse Block - Body - Label Usage
| No. | Fuse/Circuit Breaker | Rating | Description |
|---|---|---|---|
| 1 | SPARE Fuse | - | Not Used |
| 2 | OSRVM Fuse | 10A | Outside Rearview Mirror Switch |
| 3 | CTSY LP/SEO Fuse | 15A | CTSY LP Relay (YF7) |
| 4 | LR STOP/TRN Fuse | 10A | Tail Lamp Assembly - Left |
| 5 | CARGO LKS Fuse | 10A | CARGO UNLK Relay |
| 6 | RR STOP/TRN Fuse | 10A | Tail Lamp Assembly - Right |
| 7 | DRV LKS Fuse | 10A | DRV UNLK Relay |
| 8 | STOP/CHMSL Fuse | 10A | Center High Mounted Stop Lamp (CHMSL) and Cruise Control Module (CCM) |
| 9 | HVAC 1 Fuse | 10A | HVAC Control Assembly and Air Temperature Actuator |
| 10 | HVAC Fuse | 20A | HVAC Control Assembly |
| 11 | BRKS Fuse | 10A | Electronic Brake Control Module (EBCM) |
| 12 | HTD MIR/DEFOG Fuse | 30A | RR DEFOG Relay |
| 13 | RR BLOWER Fuse | 30A | Low/Med/High Speed Blower Motor Relays - Auxiliary |
| 14 | DR TRN MIR Fuse | 10A | Outside Rearview Mirror - Driver |
| 15 | DOOR LKS Fuse | 20A | DOOR LKS Relay |
| 16 | UPFTR PRK Fuse | 10A | C320 - Upfitter Wiring Harness |
| 17 | NOT AVAILABLE | - | Not Used |
| 18 | LR PRK Fuse | 10A | Tail Lamp Assembly - Left and License Lamp |
| 19 | PASS TRN MIR Fuse | 10A | Outside Rearview Mirror - Passenger |
| 20 | RR PRK Fuse | 10A | Tail Lamp Assembly - Right |
| 21 | TRLR PRK Fuse | 15A | Trailer Wiring Harness - (UY7) or C405 (Cutaway) |
| 22 | FR PRK Fuse | 10A | Inflatable Restraint I/P Module Disable Switch, Park/Turn signal Lamps - LF/RF and Marker Lamps - LF/RF |
| 23 | WND RAP Relay | - | PWR WND Circuit Breaker |
| 24 | AUXILIARY Relay | - | Upfitter wiring Harness - C321 |
| 25 | RR DEFOG Relay | - | Rear Window Defogger Grid - Left/Right |
| 26 | CTSY LP Relay | - | Courtesy/Reading Lamps, C320 (YF7), C405 (Cutaway), Dome Lamp (Cargo) |
| 27 | CARGO UNLK Relay | - | Mini Wedge (Door Jamb Switch) - Cargo |
| 28 | DRV UNLK Relay | - | Mini Wedge (Door Jamb Switch) - Driver |
| 29 | PARK LP Relay | - | FR PRK, LR PRK, RR PRK, TRLR PRK and UPFTR PRK Fuses |
| 30 | DOOR LKS Relay | - | Mini Wedge (Door Jamb Switch) - Driver/Front Passenger/Cargo and Door Lock Actuators - LR/RR |
| 31 | PASS UNLK Relay | - | Mini Wedge (Door Jamb Switch) - Front Passenger and Door Lock Actuators - LR/RR |
| 32 | AUXILIARY 1 Fuse | 50A | Upfitter Wiring Harness - C222, C321 |
| 20A | Cooling Fan (SEO) | ||
| 33 | AUXILIARY 2 Fuse | 50A | AUXILIARY Relay (YF7) |
| 20A | AUXILIARY Relay (SEO) | ||
| 34 | PWR WND Circuit Breaker | 25A | Window Switch - Driver/Front Passenger |
