Installation Procedure

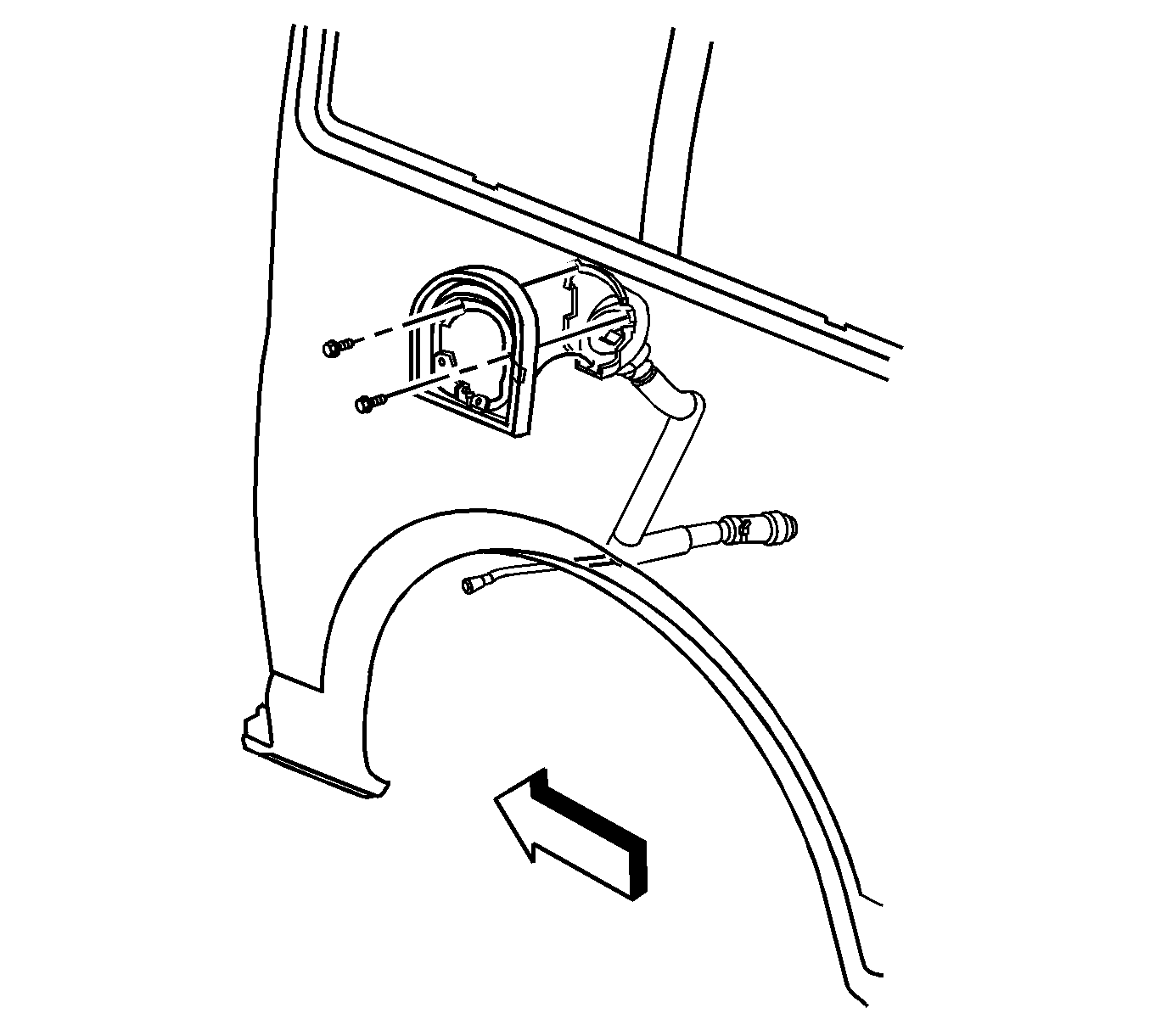

    Fig 1: Fuel Filler Pipe Assembly
    GM1198972Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel fill pipe to the fuel fill hose.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Align the fuel fill pipe to the fuel fill pipe housing.

    Tighten:  Tighten the fuel fill hose clamp to 2.75 N.m (24 lb in).

  3. Install the fuel filler tube ground strap bolt.

    Tighten:  Tighten the fuel filler tube ground strap bolt to 8 N.m (70 lb in).

  4. Lower the vehicle.
  5. Install the fuel fill pipe housing bolts and push-pin.

    Tighten:  Tighten the fuel fill pipe housing bolts to 6 N.m (53 lb in).

  6. Refill the fuel tank.
  7. Install the fuel filler cap.
