Ground Distribution Schematics

Fig 1: G100, G102, & G103 Schematic

GM655640

Courtesy of GENERAL MOTORS CORP.

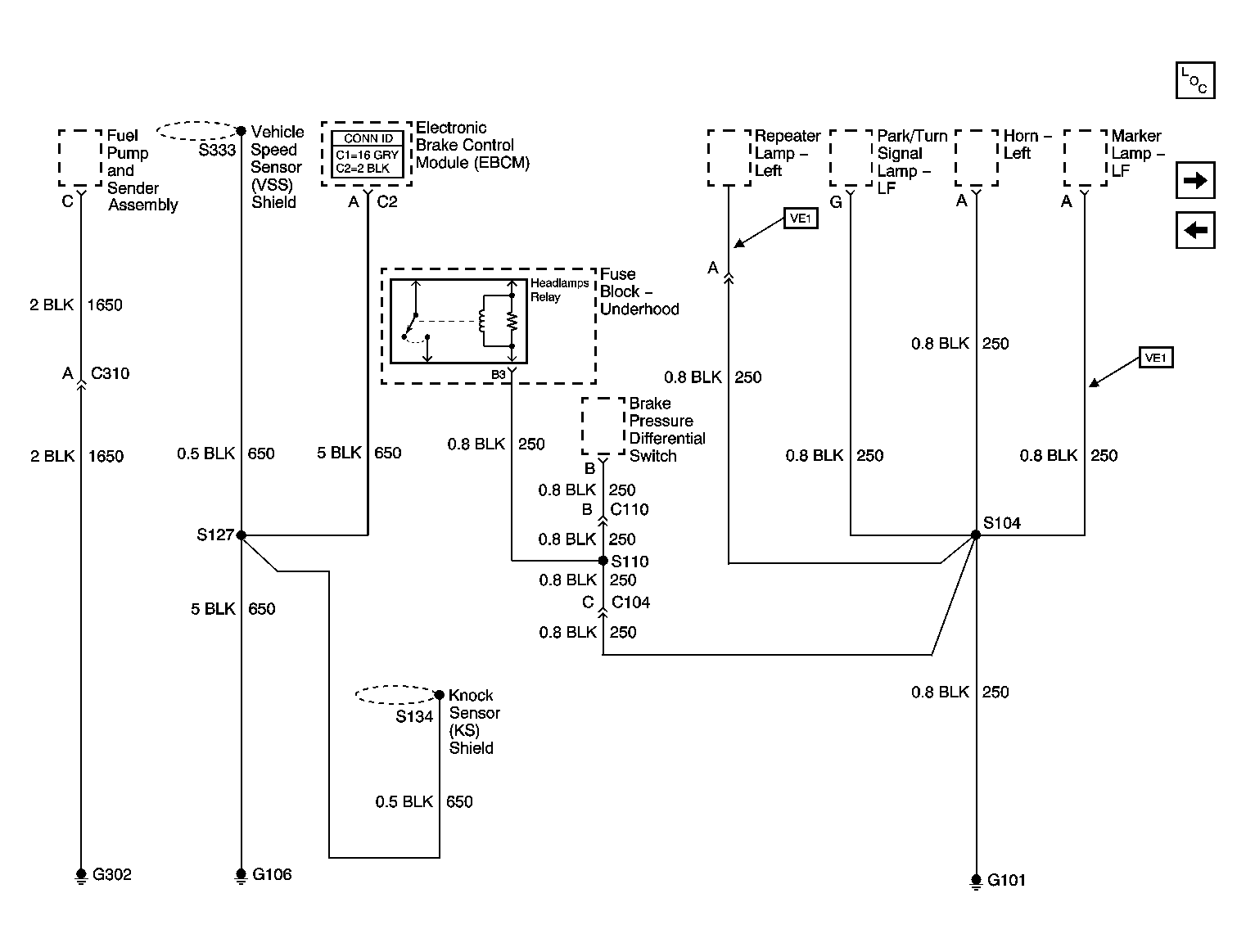

Fig 2: G100, G106, & G302 Schematic

GM655657

Courtesy of GENERAL MOTORS CORP.

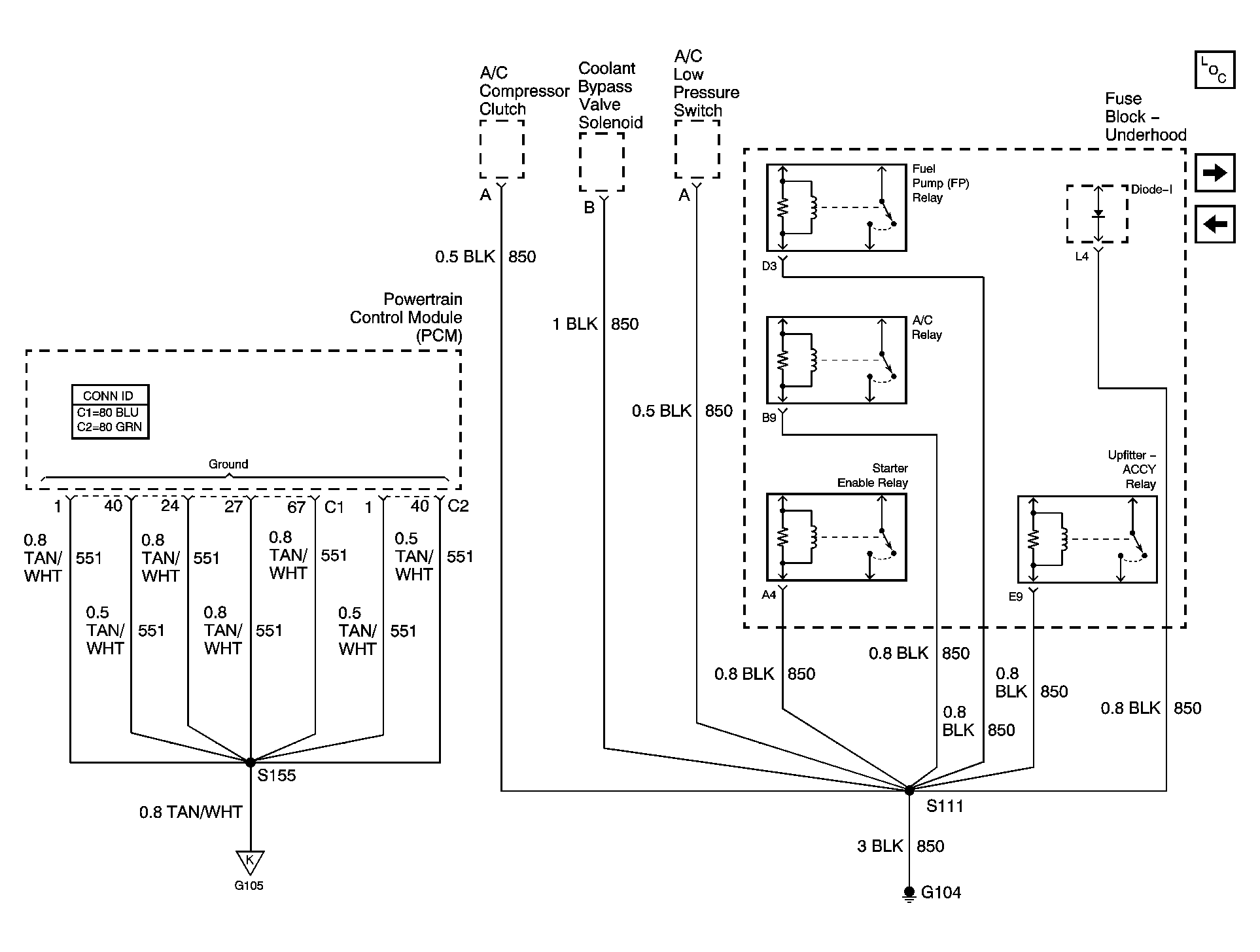

Fig 3: G104 Schematic

GM895891

Courtesy of GENERAL MOTORS CORP.

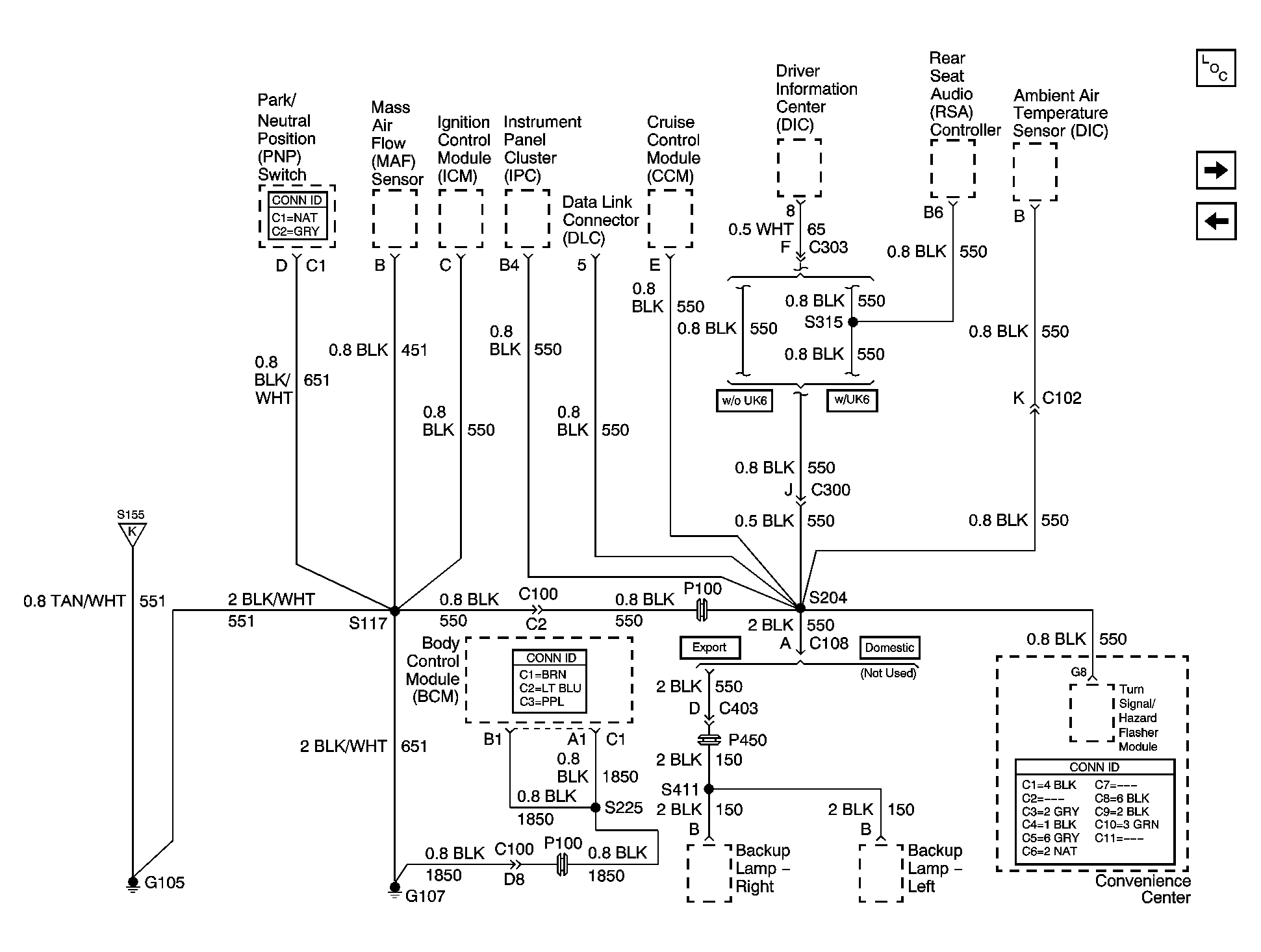

Fig 4: G105 & G107 Schematic

GM895893

Courtesy of GENERAL MOTORS CORP.

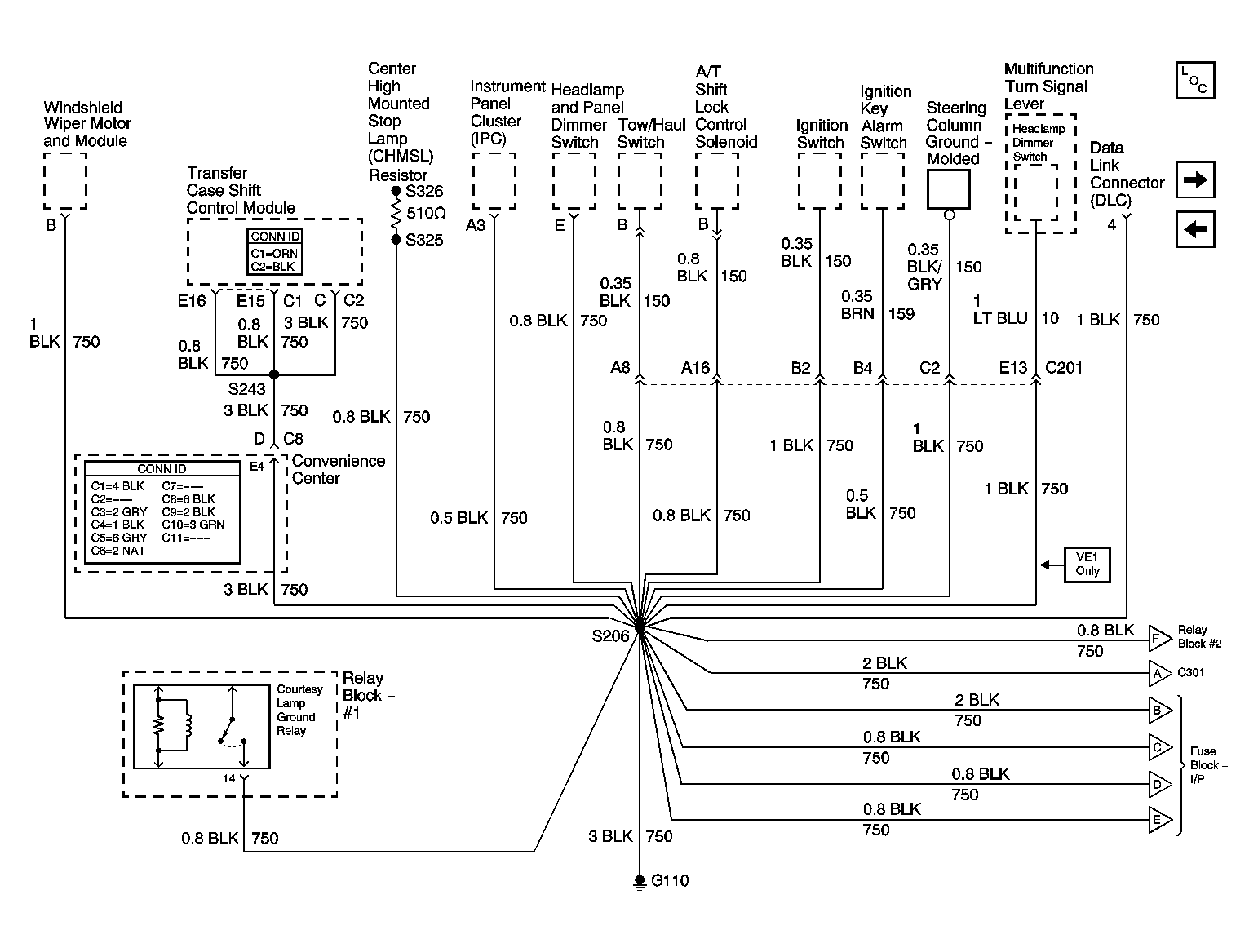

Fig 5: G110 Schematic - (1 Of 2)

GM655667

Courtesy of GENERAL MOTORS CORP.

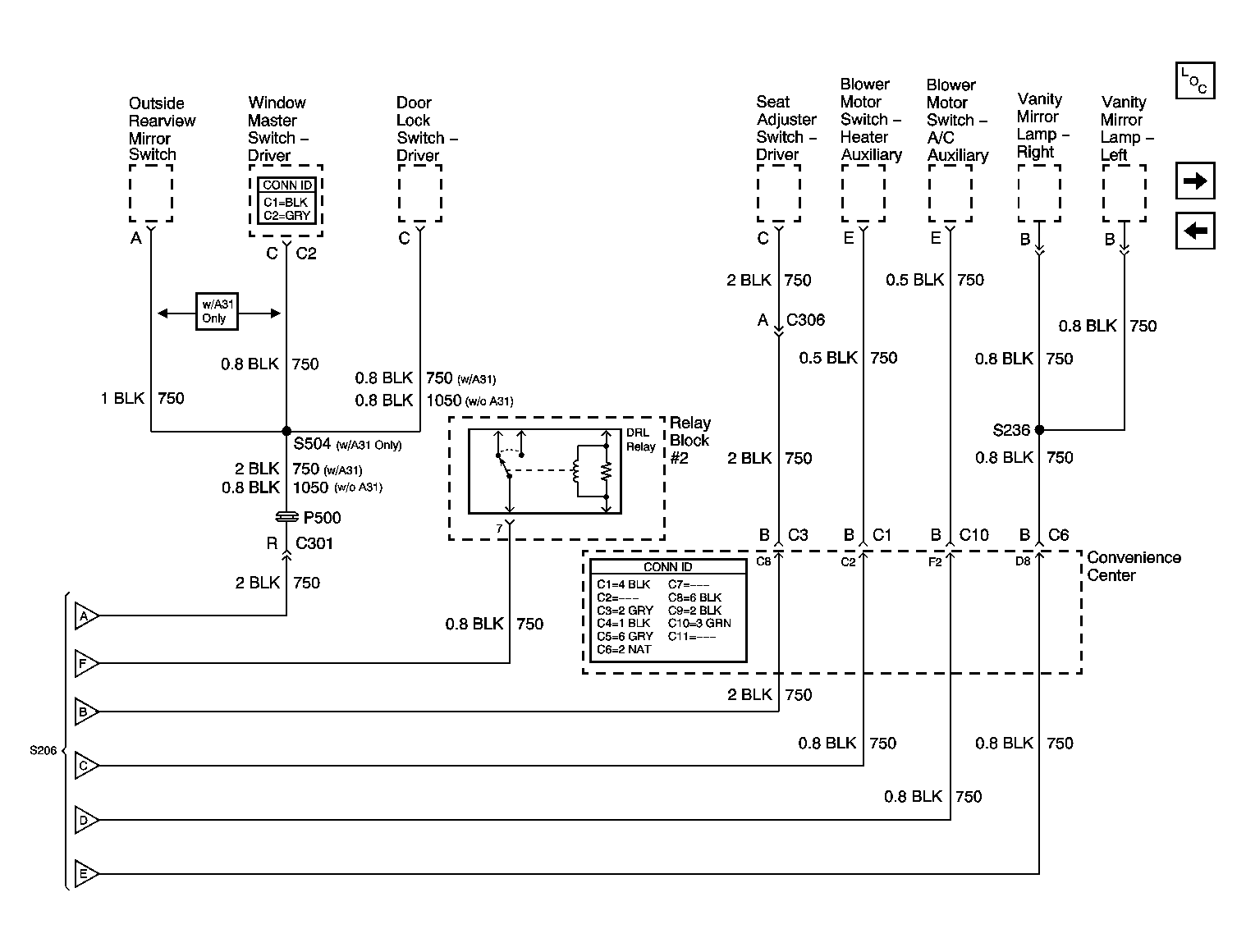

Fig 6: G110 Schematic - (2 Of 2)

GM655670

Courtesy of GENERAL MOTORS CORP.

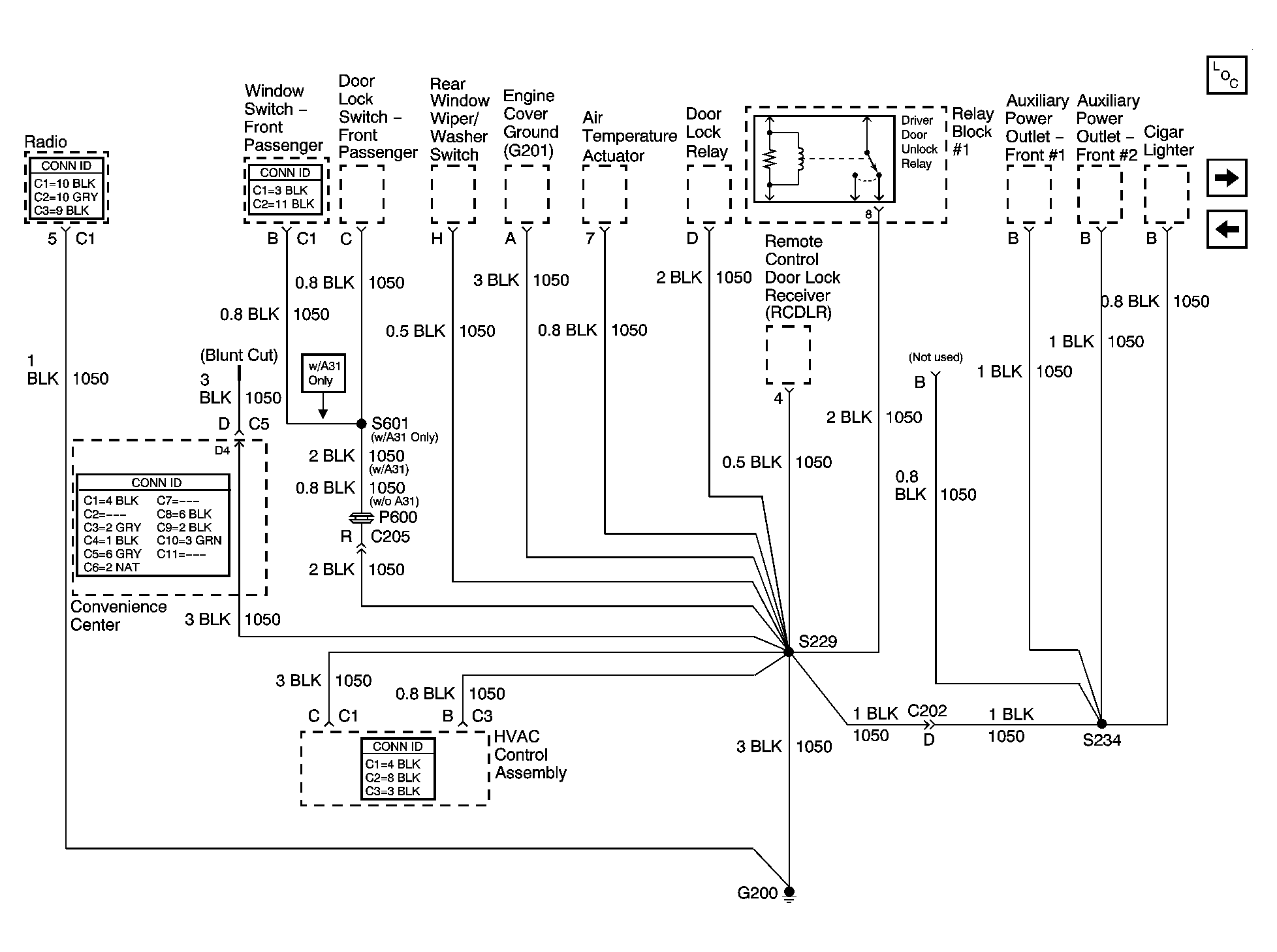

Fig 7: G200 Schematic

GM1225414

Courtesy of GENERAL MOTORS CORP.

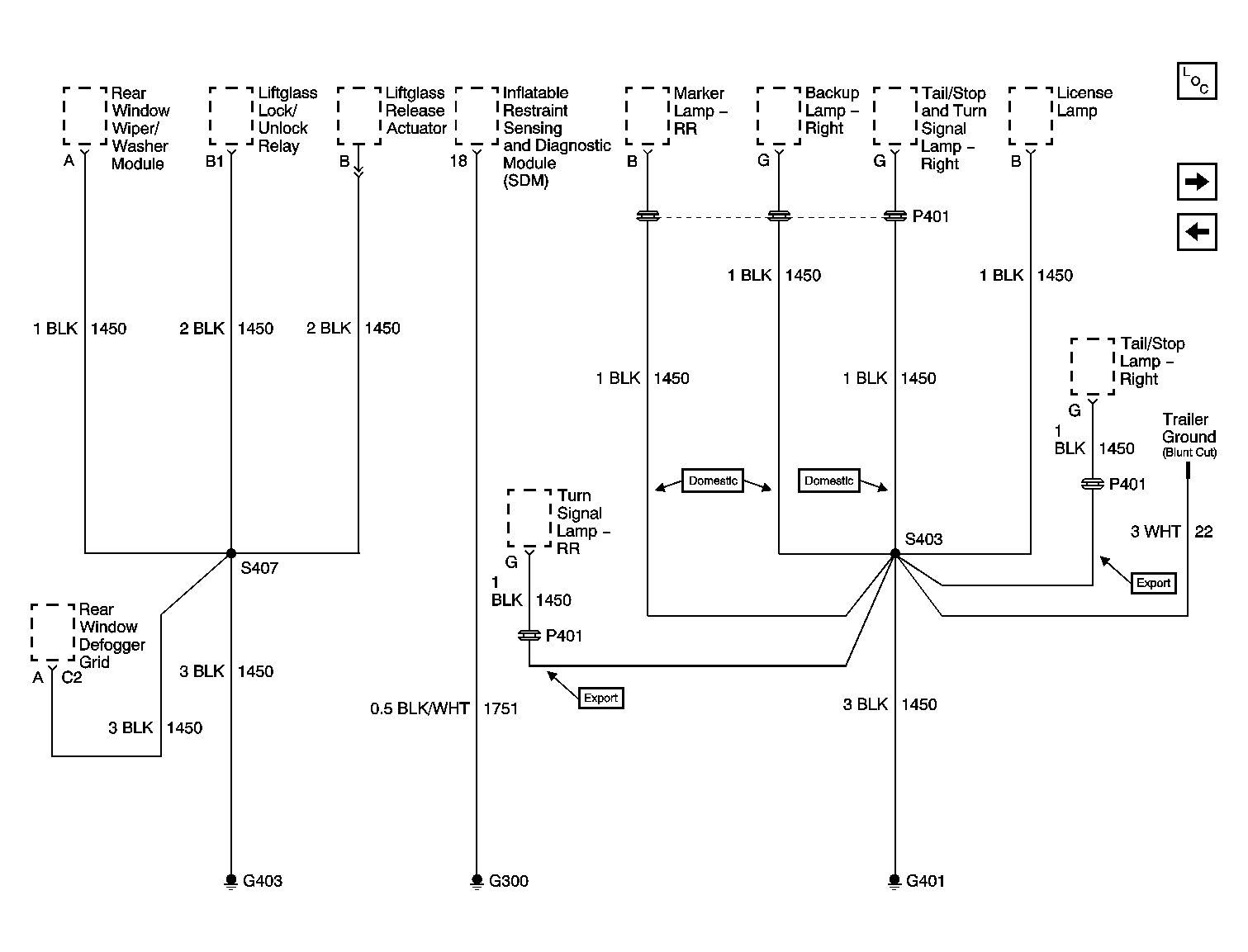

Fig 8: G300, G401, & G403 Schematic

GM655678

Courtesy of GENERAL MOTORS CORP.

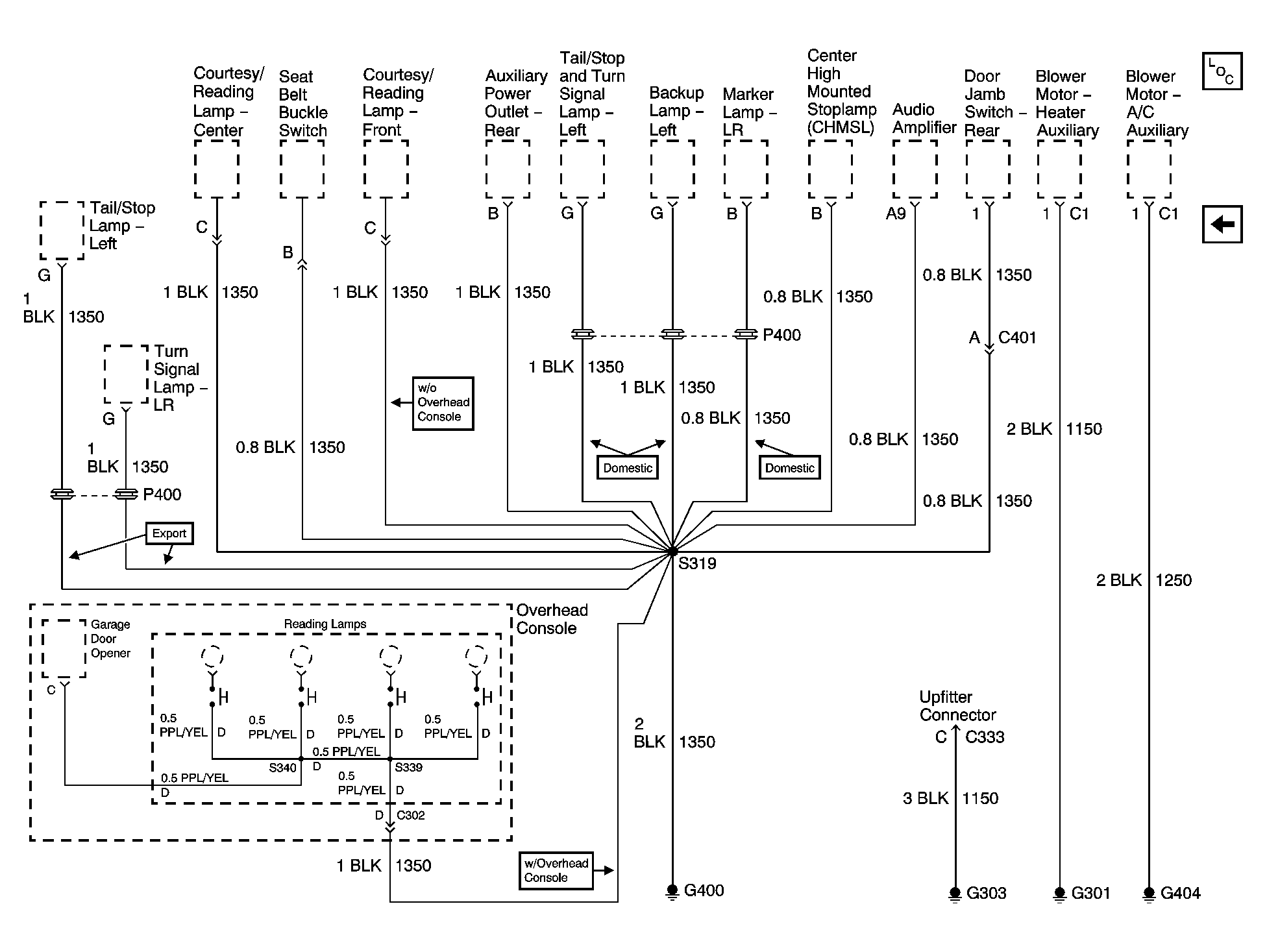

Fig 9: G301, G303, G400, & G404 Schematic

GM655683

Courtesy of GENERAL MOTORS CORP.
