ABS Schematics

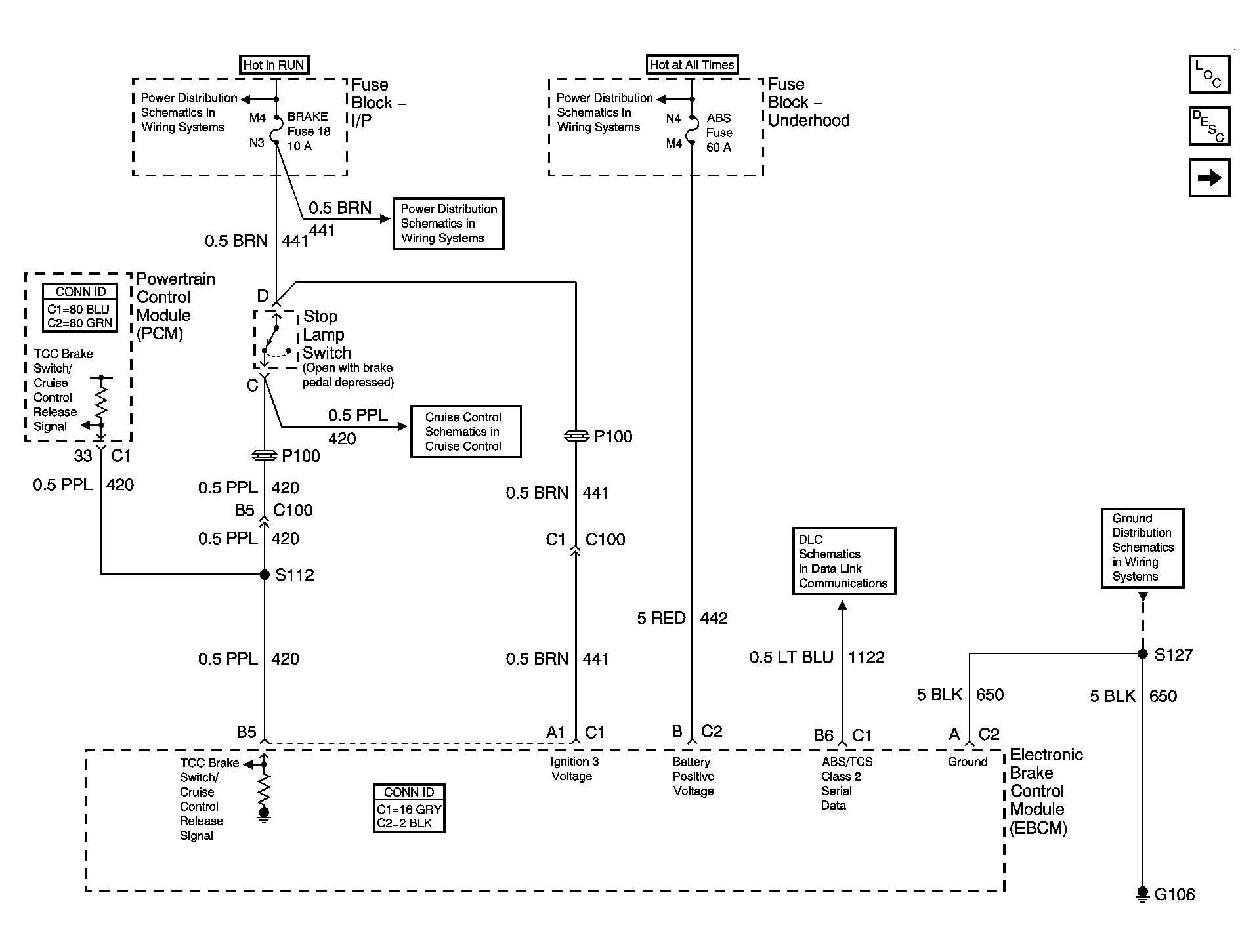

Fig 1: EBCM Power, Ground, & DLC Schematic

GM896065

Courtesy of GENERAL MOTORS CORP.

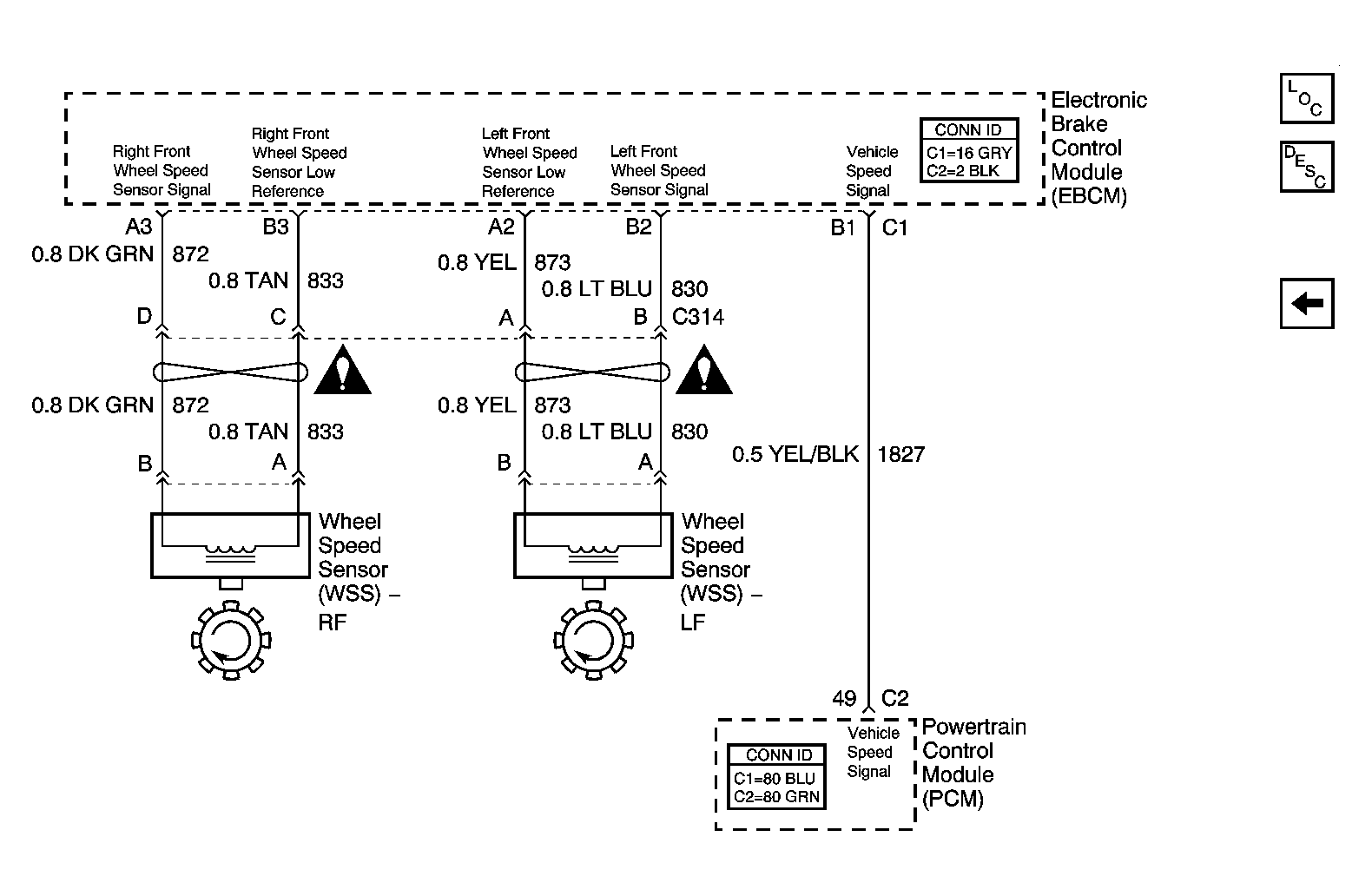

Fig 2: EBCM Controls Schematic

GM896069

Courtesy of GENERAL MOTORS CORP.
