Door Lock/Indicator Schematics

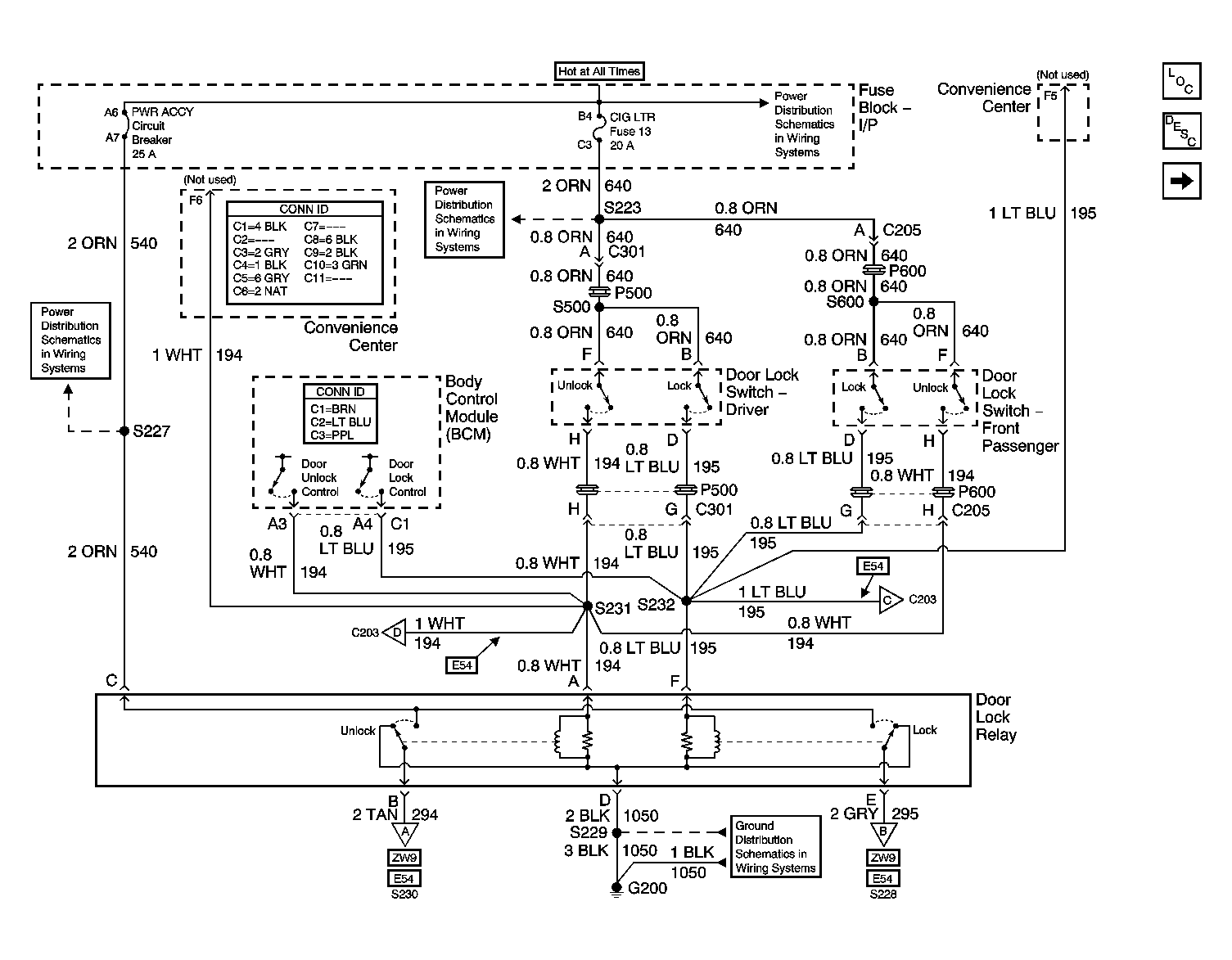

Fig 1: Door Lock Switches and Relay Schematic
GM634749Courtesy of GENERAL MOTORS CORP.

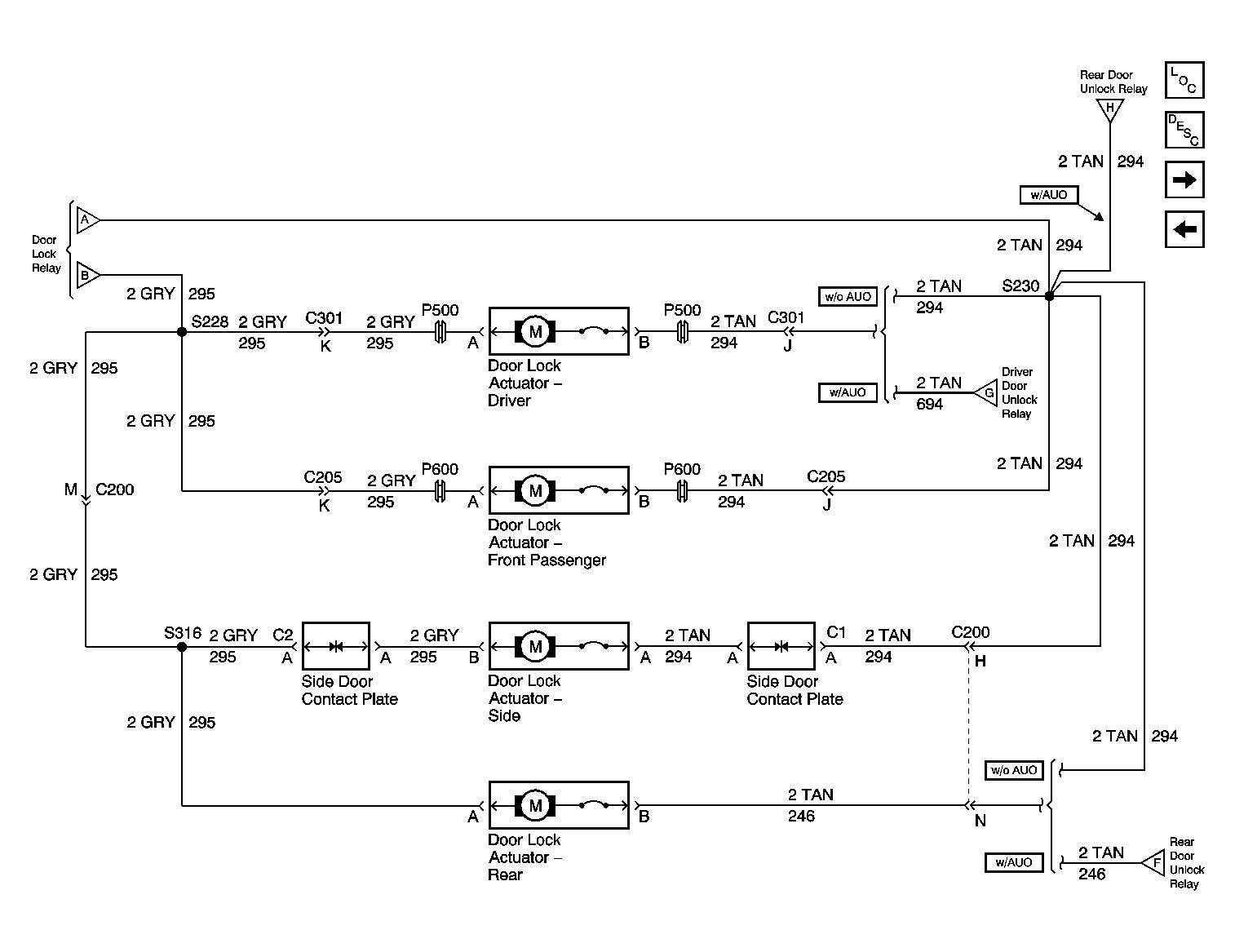

Fig 2: Door Lock Actuators (ZW9) Schematic
GM634753Courtesy of GENERAL MOTORS CORP.

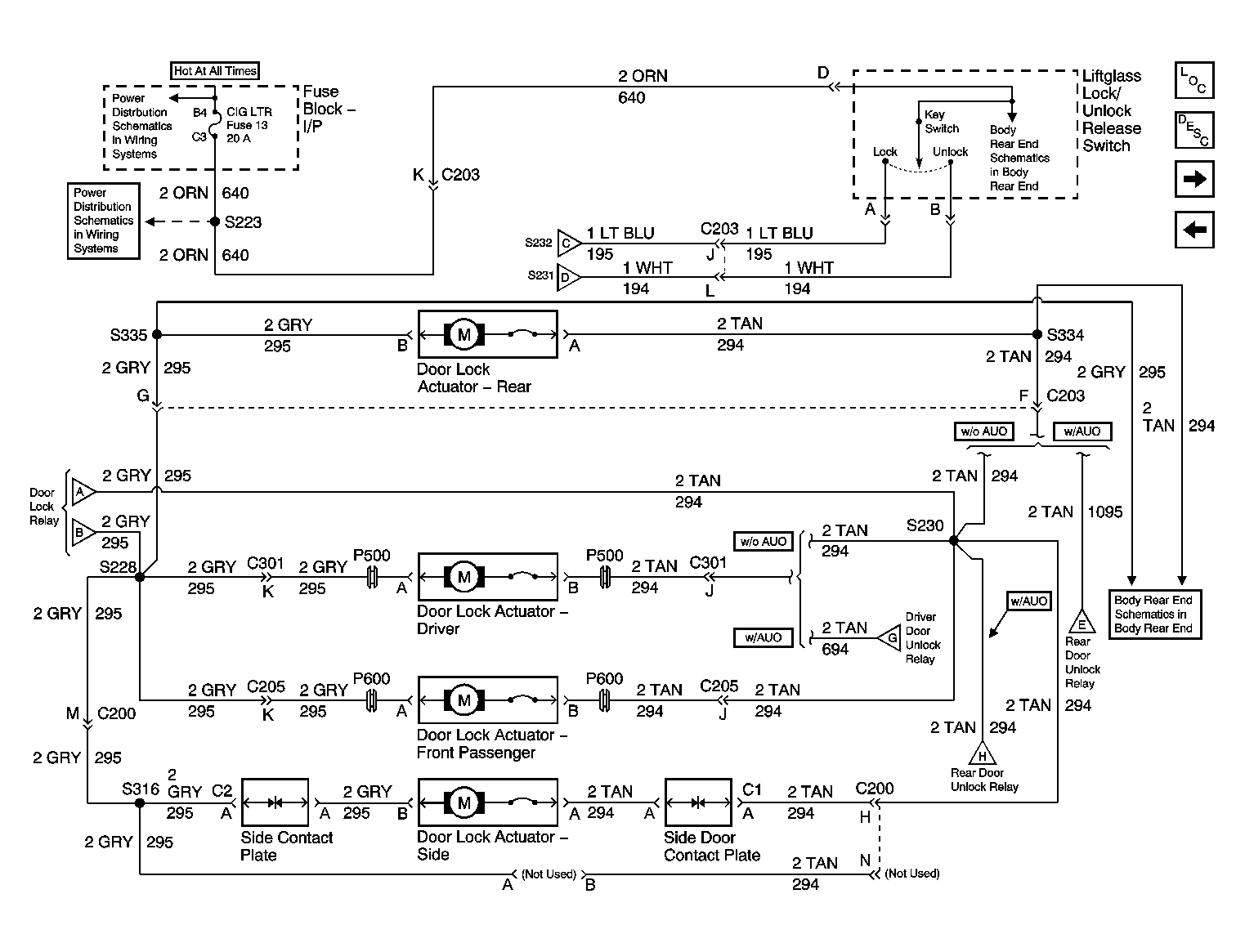

Fig 3: Door Lock Actuators (E54) Schematic
GM634755Courtesy of GENERAL MOTORS CORP.

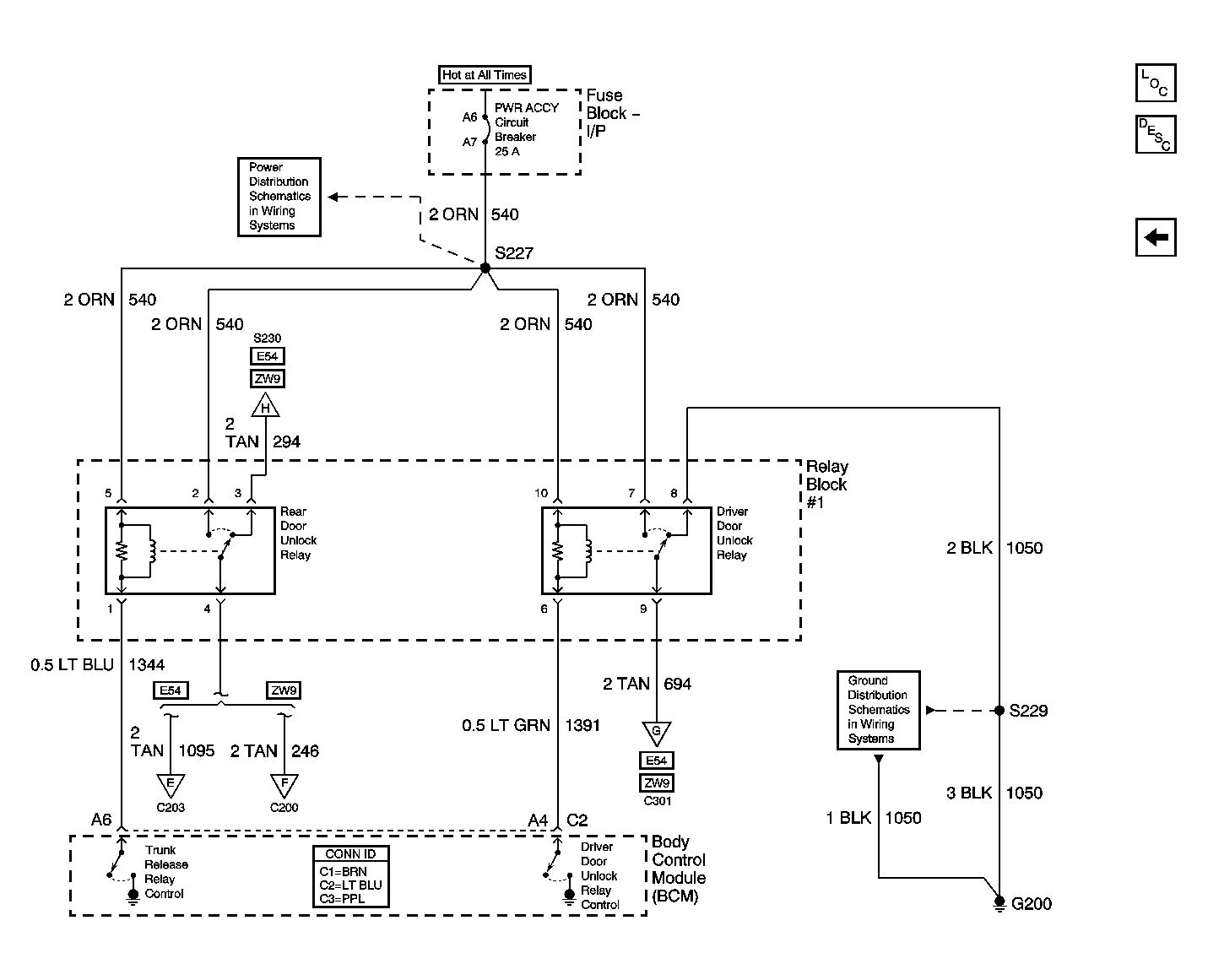

Fig 4: Door Unlock Relays Schematic
GM634756Courtesy of GENERAL MOTORS CORP.
