Removal Procedure

  1. Remove the trim panel. Refer to Trim Panel Replacement - Door .
  2. Remove the lock rod from the lock assembly to the lock control.
  3. Remove the lock rod from the lock cylinder to the lock control.
  4. Remove the lock rod from the outside handle to the lock control.
  5. Remove the lock control bolts (2).
  6. Remove the lock control (1) from the door.

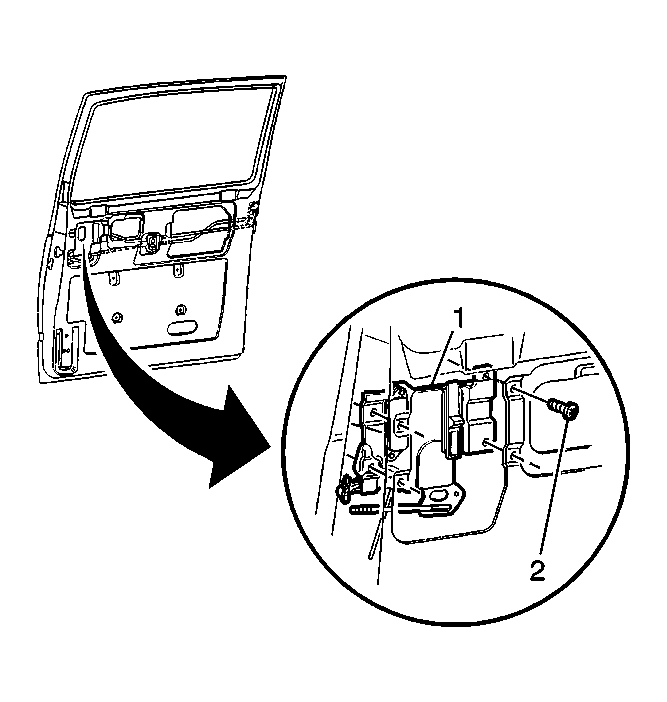

    Fig 1: Expanded View Of Sliding Door Lock Control Bolts
    GM324173Courtesy of GENERAL MOTORS CORP.
