Installation Procedure

  1. Connect the power seat switch electrical connector.

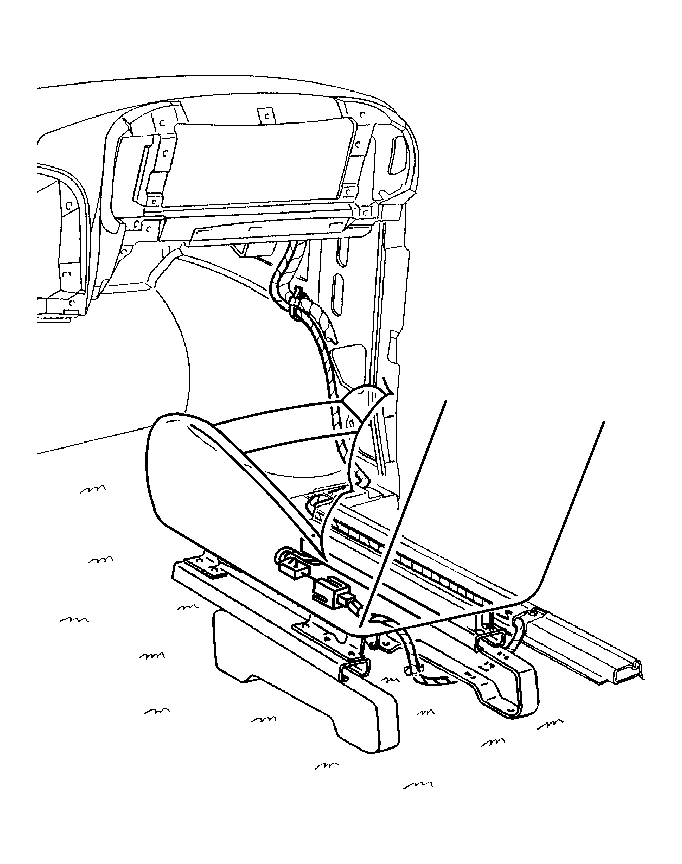

    Fig 1: View Of Power Seat Switch Electrical Connector
    GM300124Courtesy of GENERAL MOTORS CORP.
  2. Install the power seat switch.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screws that retain the power seat switch to the seat.

    Tighten:  Tighten the power seat switch retaining screws to 2 N.m (18 lb in).

    Fig 2: Identifying Power Seat Switch Screws
    GM300121Courtesy of GENERAL MOTORS CORP.
