Automatic Transaxle Service, Removal & Installation -- 4T65-E: Specifications
FASTENER TIGHTENING SPECIFICATIONS
| Description of Usage | Ref No. (1) | Qty | Size | Specification | |||
|---|---|---|---|---|---|---|---|
| Metric | English | ||||||
| 2-1 Servo to Case | 103 | 3 | M8x1.25x25 | 25 N.m | 18 lb ft | ||
| Accumulator Cover to Case | 131 | 11 | M6x1.0x28 | 12 N.m | 106 lb in | ||
| Case Cover to Case | 434 | 3 | M6x1.0x40 | 12 N.m | 106 lb in | ||
| Case Cover to Case | 436 | 3 | M6x1.0x30 | 12 N.m | 106 lb in | ||
| Case Cover to Driven Sprocket Support | 435 | 3 | M8x1.25x50 | 25 N.m | 18 lb ft | ||
| Case Cover to Driven Sprocket Support (TORX®) | 433 | 1 | M6x1.0x32 | 12 N.m | 106 lb in | ||
| Case to Drive Sprocket Support | 524 | 4 | M8x1.25x23 | 25 N.m | 18 lb ft | ||
| Case Extension to Case | 5 | 4 | M10x1.5x35 | 36 N.m | 26 lb ft | ||
| Case Side Cover to Case | 56 | 9 | M8x1.25x25 | 25 N.m | 18 lb ft | ||
| Case Side Cover to Case (Stud) | 58 | 4 | M8x1.25x25 | 25 N.m | 18 lb ft | ||
| Case Side Cover to Case (TORX® Special) | 57 | 4 | M8x1.25x21 | 25 N.m | 18 lb ft | ||
| Detent Spring to Case Cover | 805 | 1 | M6x1.0x16 | 12 N.m | 106 lb in | ||
| Forward Band Servo Cover to Case | 12 | 3 | M6x1.0x20 | 12 N.m | 106 lb in | ||
| Manual Shaft/Detent Nut | 803 | 1 | M 10x1.5 | 32 N.m | 23 lb ft | ||
| Oil Cooler Quick Connector | 62 | 1 | 1/4-18 NPSF | 38 N.m | 28 lb ft | ||
| Oil Cooler Quick Connector with Checkball | 61 | 1 | 3/8-18 NPSF | 38 N.m | 28 lb ft | ||
| Oil Pan to Case | 23 | 20 | M6x1.0x18 | 14 N.m | 10 lb ft | ||
| Oil Pressure Test Hole Plug | 38 | 1 | 1/8-27 NPTF | 12 N.m | 106 lb in | ||
| Pump Body to Case | 206 | 2 | M6x1.0x95 | 16 N.m | 11 lb ft | ||
| Pump Cover to Case Cover | 207 | 9 | M6x1.0x85 | 12 N.m | 106 lb in | ||
| Pump Cover to Pump Body | 205 | 1 | M6x1.0x20 | 8 N.m | 70 lb in | ||
| Speed Sensor to Case | 9 | 1 | M8x1.25x12 | 12 N.m | 106 lb in | ||
| TFP Switch to Case | 379 | 1 | M6x1.0x95 | 16 N.m | 11 lb ft | ||
| TFP Switch to Case Cover | 375 | 3 | M6x1.0x60 | 12 N.m | 106 lb in | ||
| TFP Switch to Valve Body | 381 | 2 | M6x1.0x20 | 8 N.m | 70 lb in | ||
| Transaxle Brace Bolts to Engine | - | - | - | 43 N.m | 32 lb ft | ||
| Transaxle Brace Bolts to Transaxle | - | - | - | 43 N.m | 32 lb ft | ||
| Transaxle Mount Bracket Bolts | - | - | - | 95 N.m | 70 lb ft | ||
| Transaxle Mount Lower Nuts to Transaxle Mount Frame Bracket | - | - | - | 47 N.m | 35 lb ft | ||
| Transaxle Mount Upper Nuts | - | - | - | 47 N.m | 35 lb ft | ||
| Valve Body to Case | 374 | 3 | M6x1.0x65 | 12 N.m | 106 lb in | ||
| Valve Body to Case | 384 | 1 | M6x1.0x85 | 12 N.m | 106 lb in | ||
| Valve Body to Case Cover | 376 | 1 | M6x1.0x30 | 12 N.m | 106 lb in | ||
| Valve Body to Case Cover | 378 | 3 | M6x1.0x55 | 12 N.m | 106 lb in | ||
| Valve Body to Case Cover (TORX®) | 377 | 2 | M6x1.0x45 | 12 N.m | 106 lb in | ||
| Valve Body to Driven Sprocket Support | 380 | 1 | M8x1.25x90 | 25 N.m | 18 lb ft | ||
|
|||||||
TRANSMISSION GENERAL SPECIFICATIONS

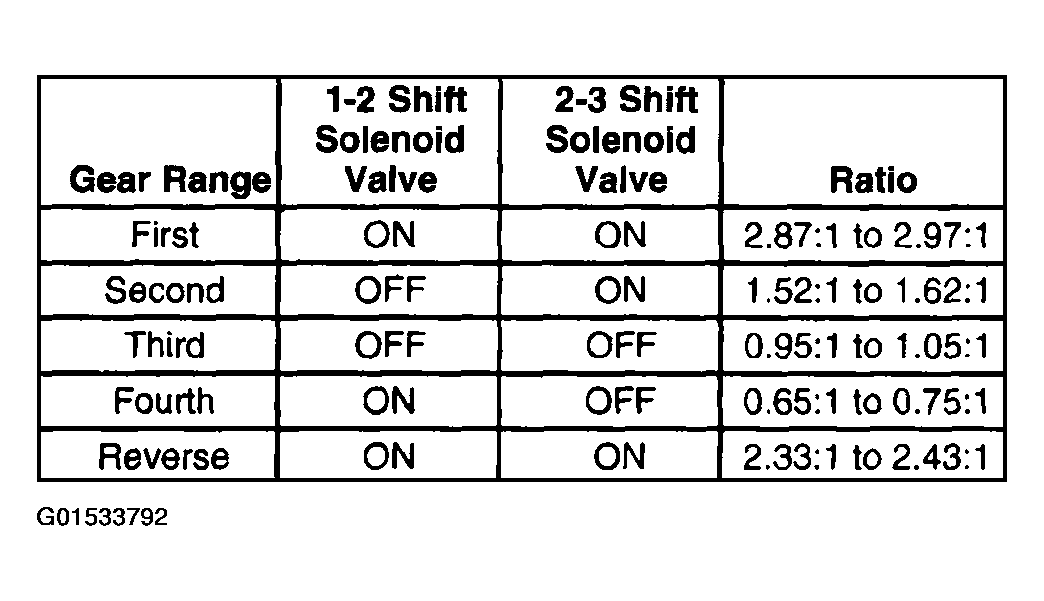

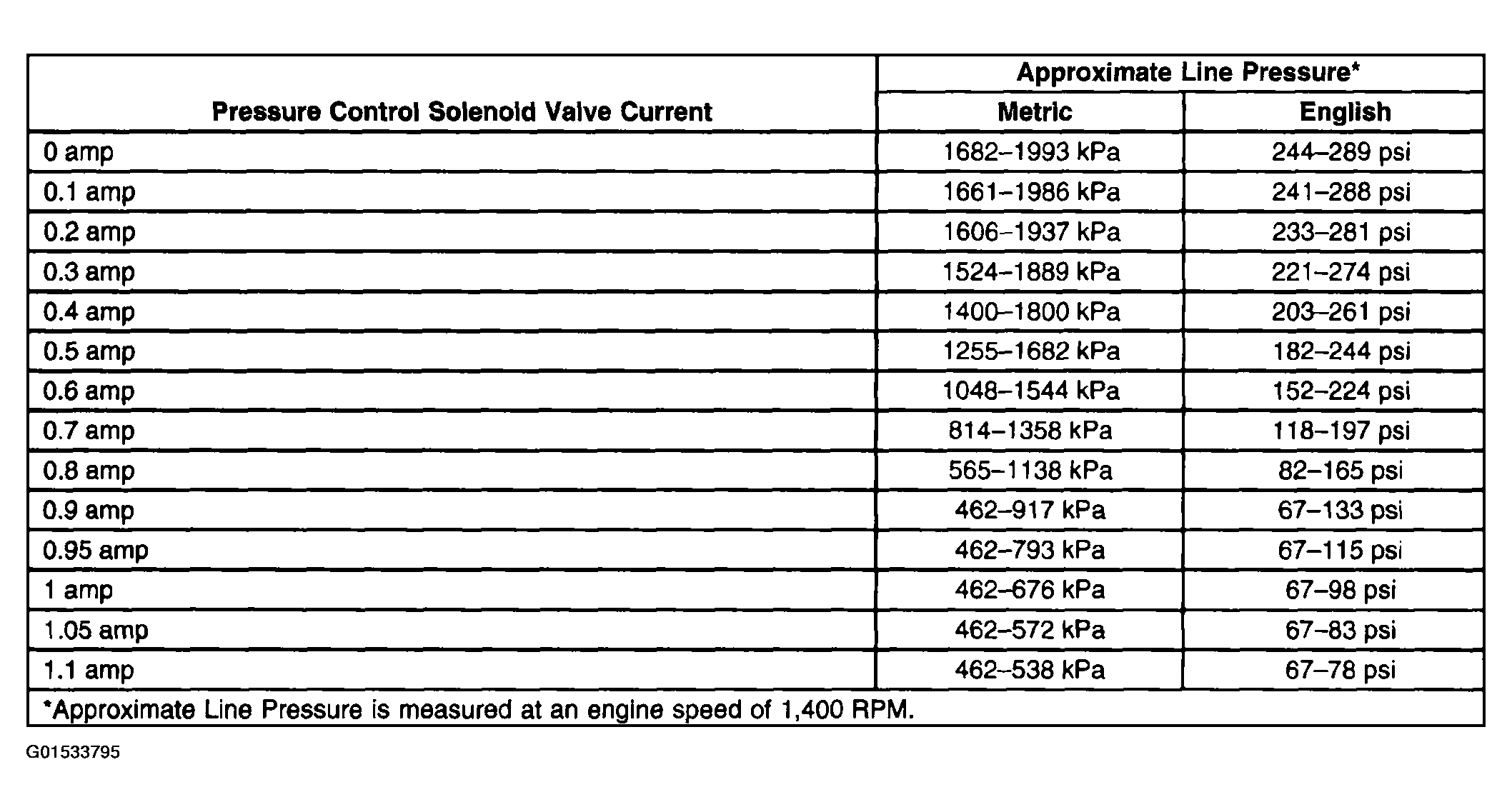

| Name | Hydra-matic 4T65-E |
|---|---|
| RPO Codes | M15, M76 |
| Production Location | Warren, MI |
| Vehicle Platform Engine/Transmission Usage | U |
| Transaxle Drive | Transverse Mounted Front Wheel Drive |
| 1st Gear Ratio | 2.921:1 |
| 2nd Gear Ratio | 1.568:1 |
| 3rd Gear Ratio | 1.000:1 |
| 4th Gear Ratio | 0.705:1 |
| Reverse | 2.385:1 |
| Torque Converter Size Diameter of Torque Converter Turbine | 245 mm (M15, M76) |
| Pressure Taps | Line Pressure |
| Transaxle Fluid Type | DEXRON® III |

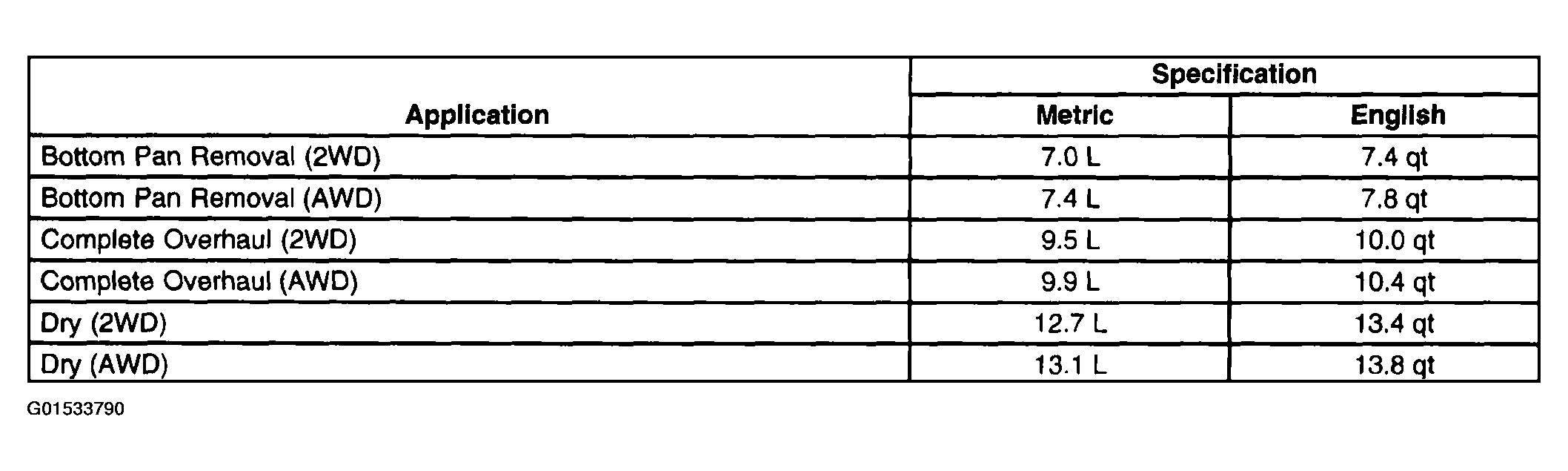

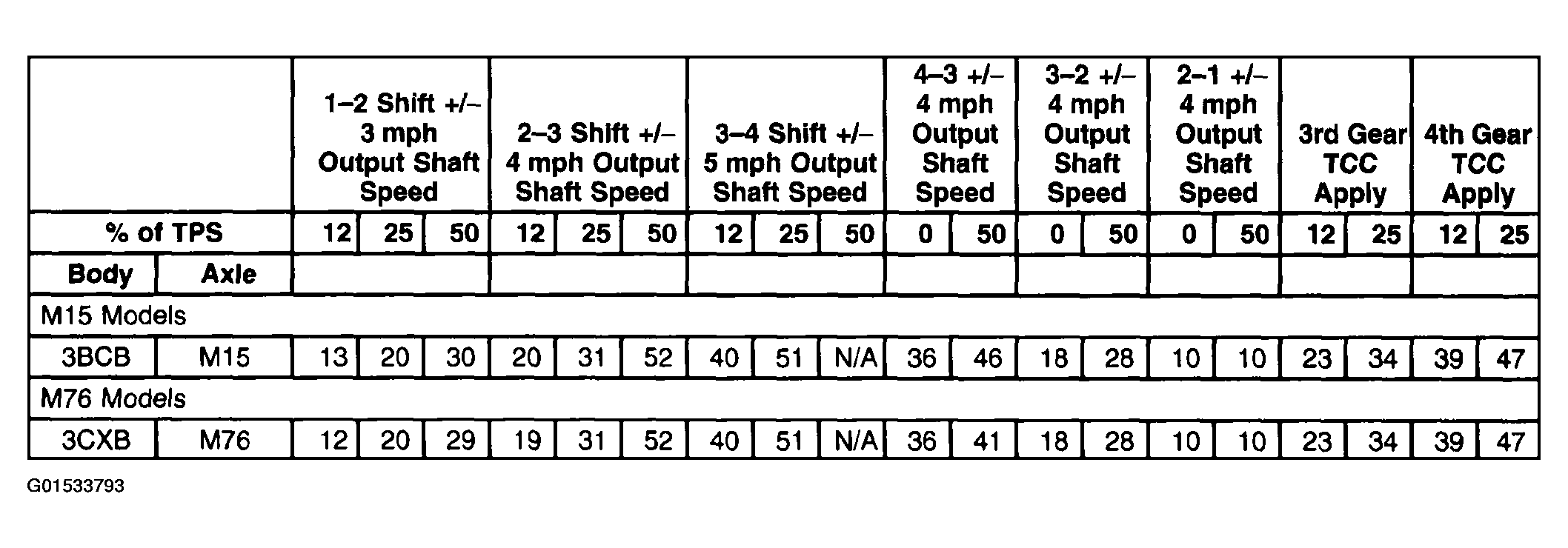

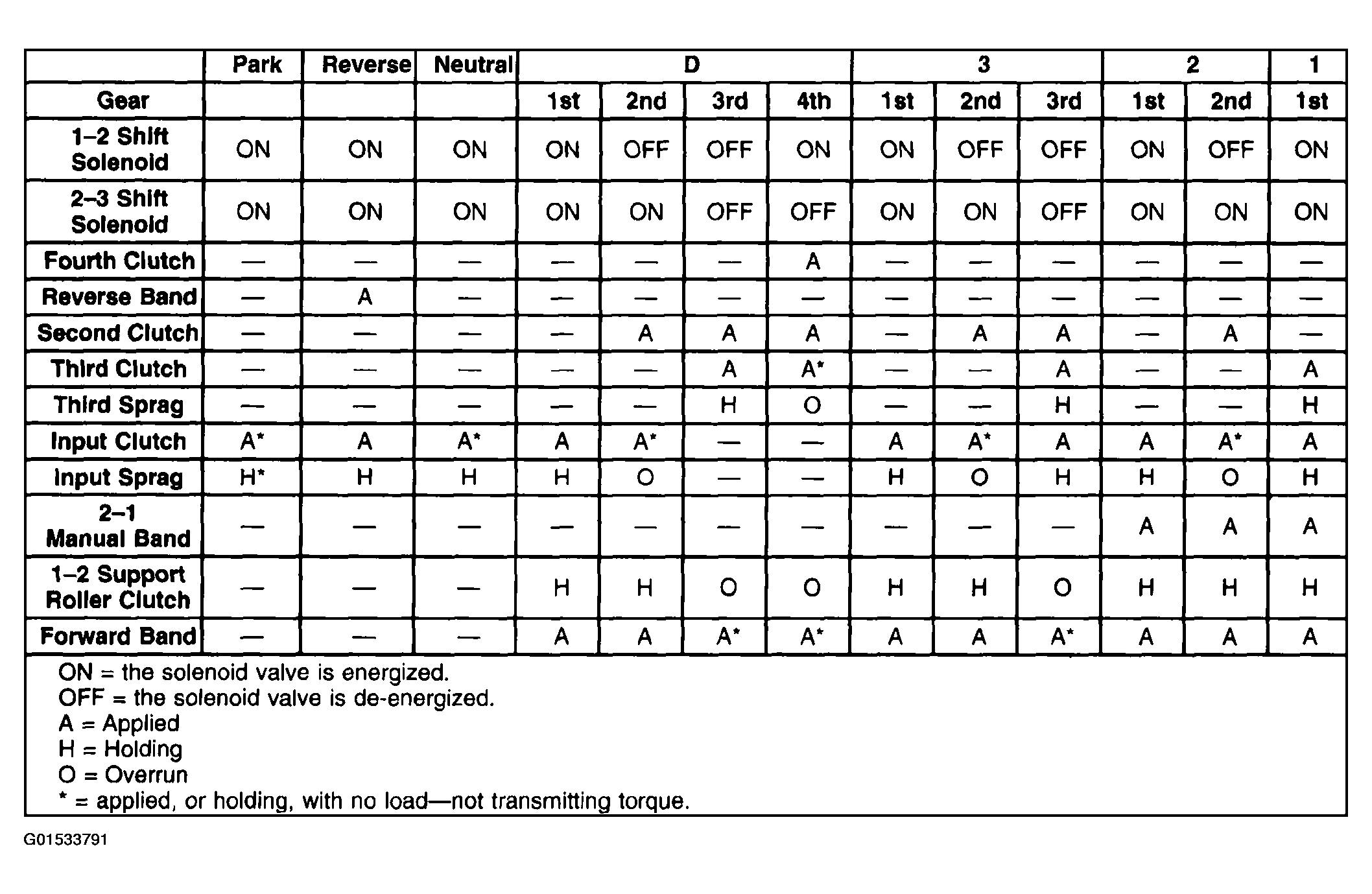

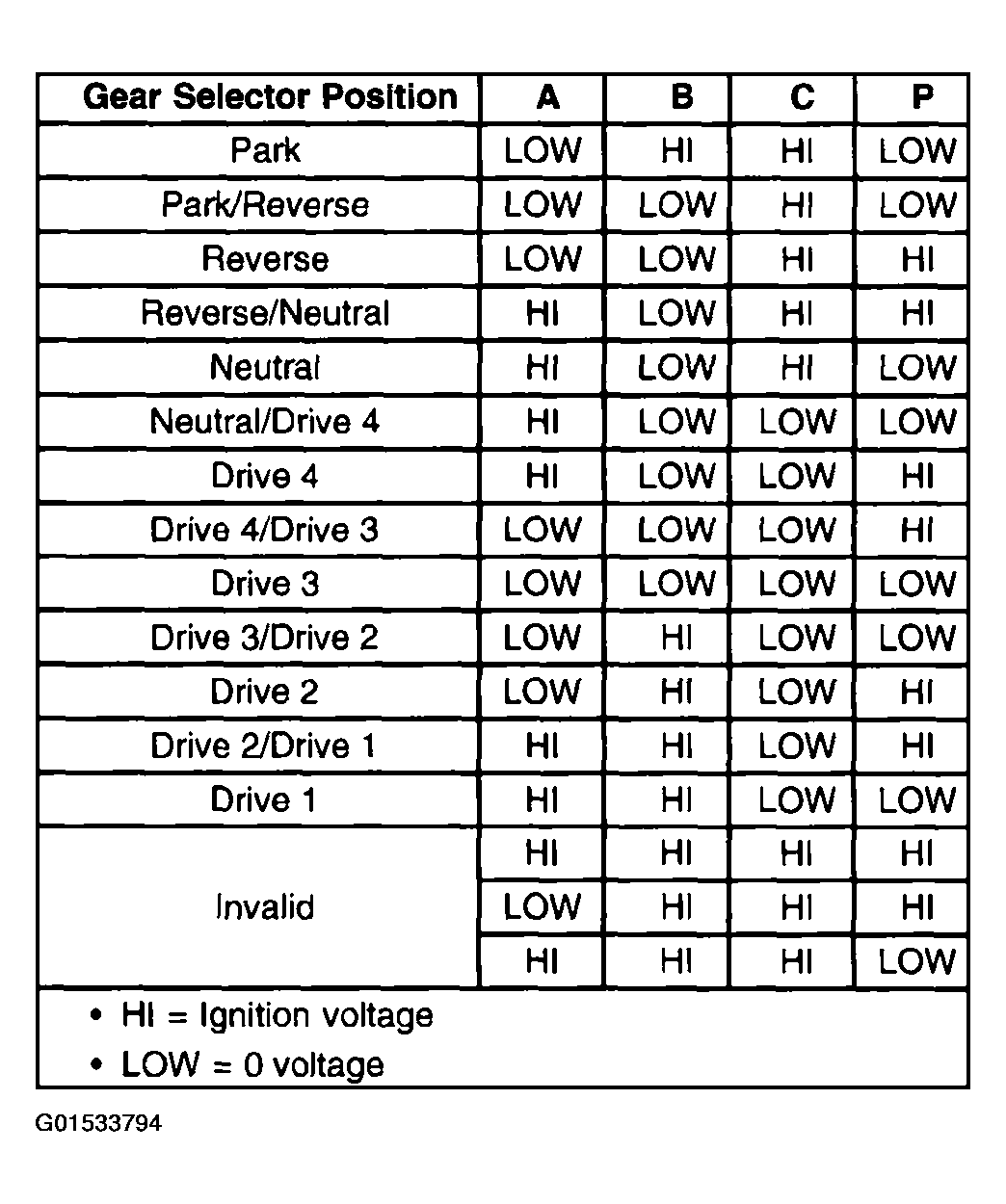

| Transaxle Fluid Capacity Approximate | Bottom Pan Removal: 7.0 L (7.4 qts) Complete Overhaul: 9.5 L (10.0 qts) Dry: 12.7 L (13.4 qts) |
| Transaxle Type: 4 | Four Forward Gears |
| Transaxle Type: T | Transverse Mount |
| Transaxle Type: 65 | Product Series |
| Transaxle Type: E | Electronic Controls |
| Chain Ratios Designates Number of Teeth on the Drive/Driven Sprockets | 35/35 |
| Final Drive Ratios | 3.29 |
| Overall Final Drive Ratios | 3.29 |
| Position Quadrant | P, R, N, D, 3, 2, 1 |
| Case Material | Die Cast Aluminum |
| Transaxle Weight Dry | 87.9 kg (194.2 lbs) |
| Transaxle Weight Wet | 97.0 kg (214.4 lbs) |
| Maximum Trailer Towing Capacity | 907 kg (2000 lbs) |
| Maximum Gross Vehicle Weight (QVW) | 2903 kg (6,400 lbs) |
