Installation Procedure

  1. Install the pressure control solenoid (322).
  2. Connect the transaxle wiring harness.
  3. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .

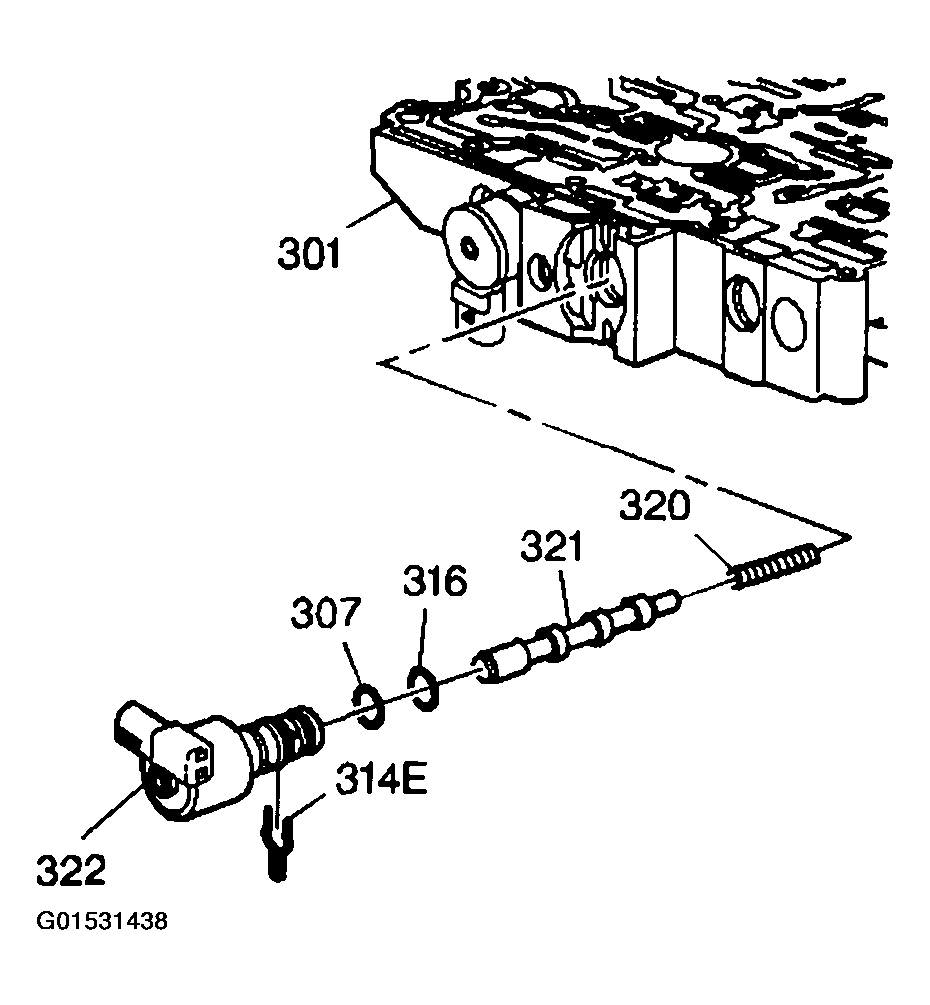

    Fig 1: Installing Pressure Control Solenoid
    G01531438Courtesy of GENERAL MOTORS CORP.
