Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the pressure test hole plug (38).

    Tighten

    Tighten the plug (38) to 12 N.m (106 lb in).

  2. Install the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL in Removal and Installation in Engine Performance.

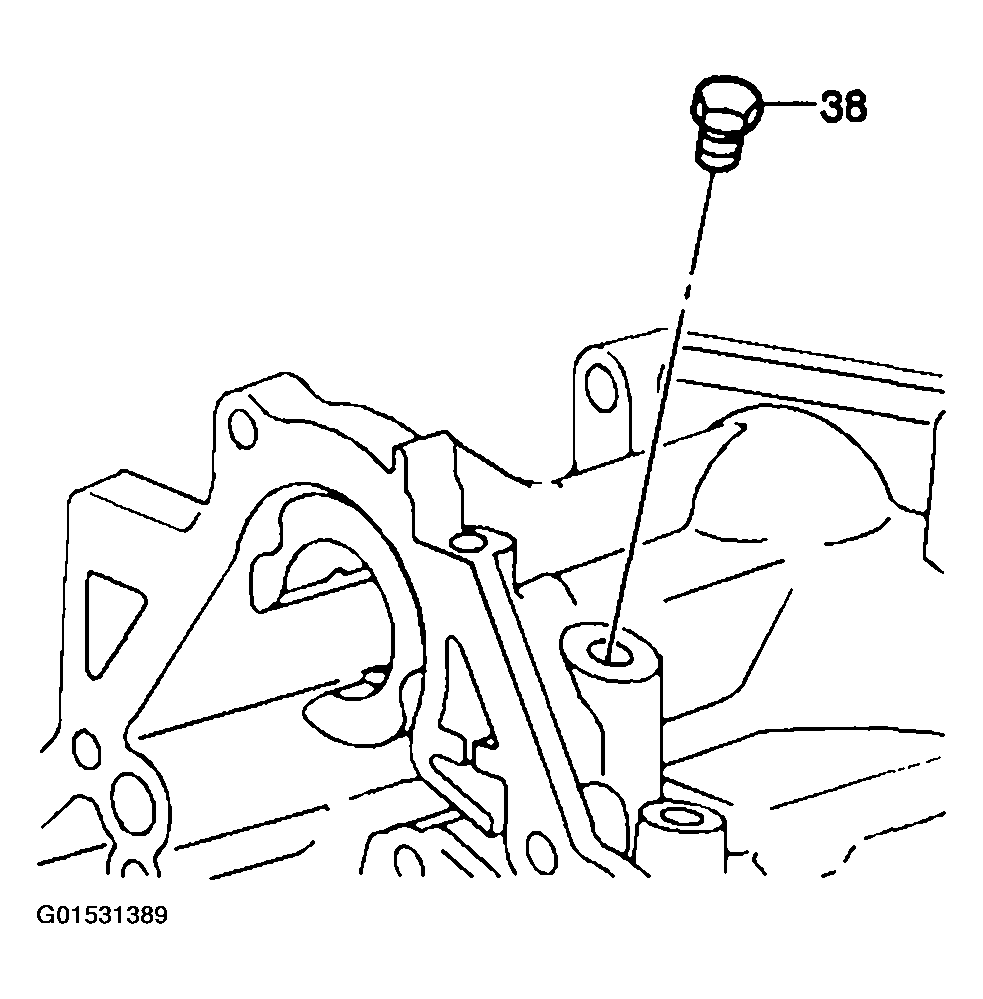

    Fig 1: Installing Pressure Test Hole Plug
    G01531389Courtesy of GENERAL MOTORS CORP.
