DTC P0717: Input Speed Sensor Circuit Low Input: Notes

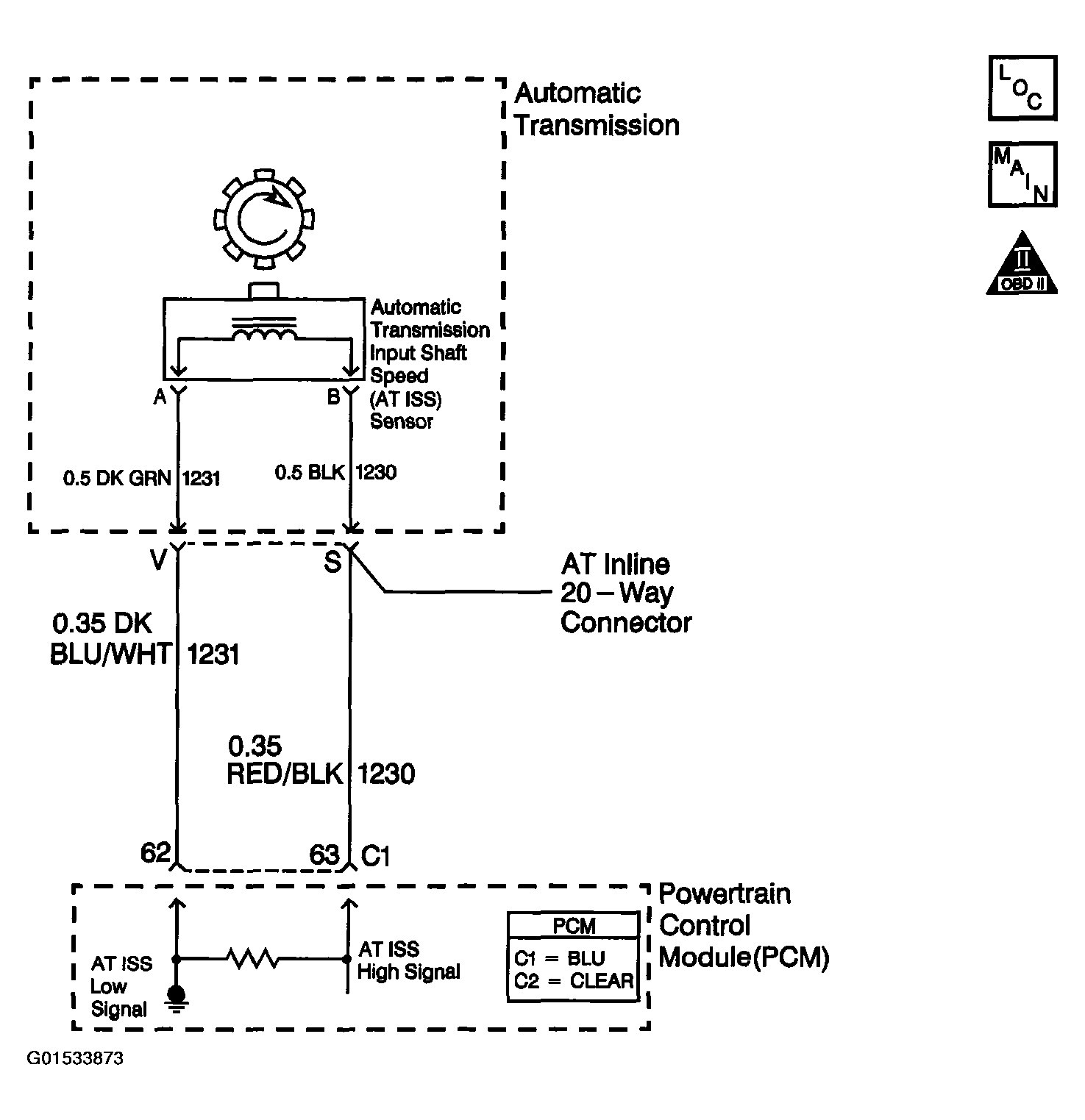

Fig 1: DTC P0717

G01533873

Courtesy of GENERAL MOTORS CORP.
