Disassembled Views

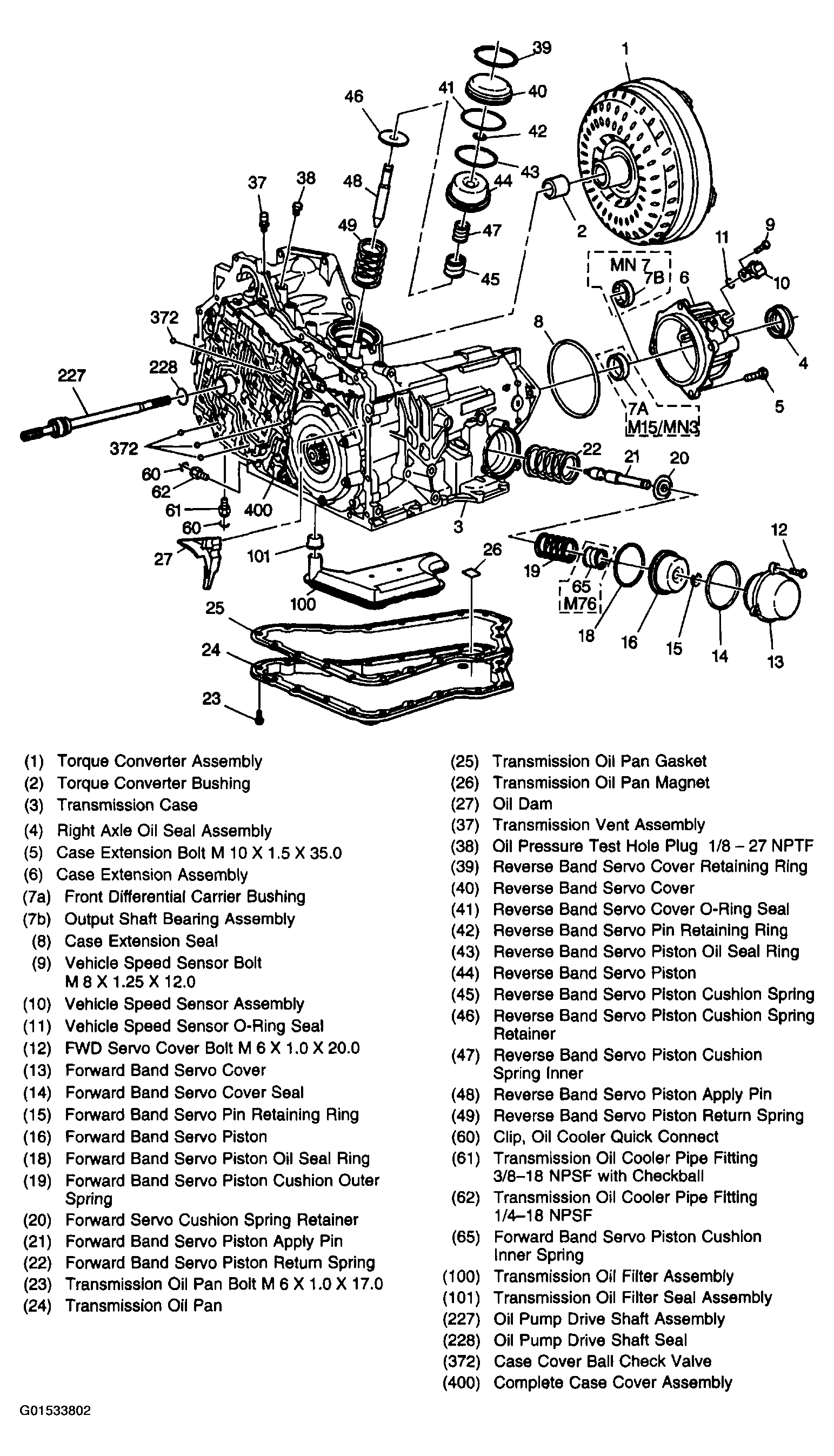

Fig 1: Case And Associated Parts Disassembled View (1 of 4)

Courtesy of GENERAL MOTORS CORP.

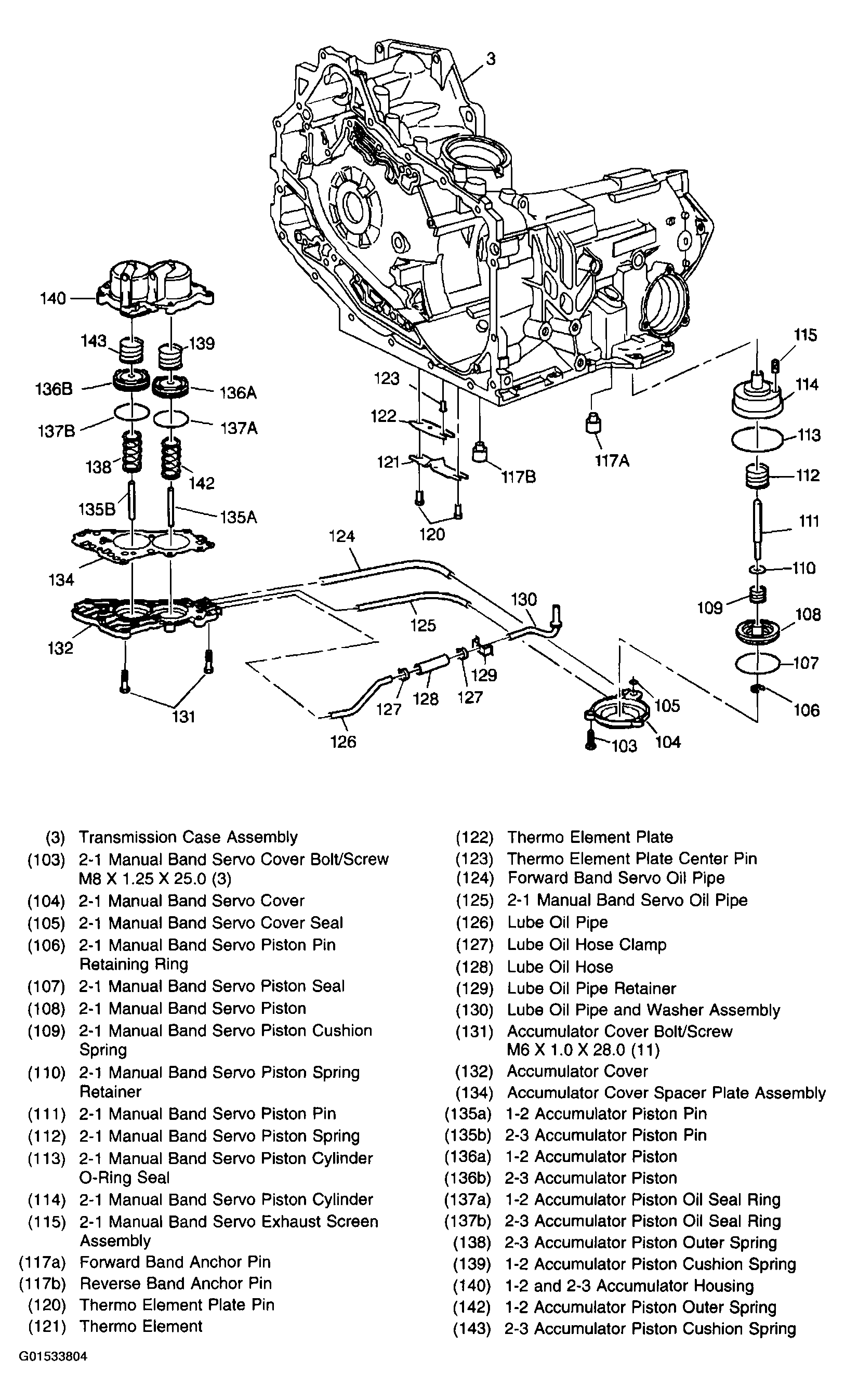

Fig 2: Case and Associated Parts Disassembled View (2 of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Case and Associated Parts Disassembled View (3 of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Case and Associated Parts Disassembled View (4 of 4)

Courtesy of GENERAL MOTORS CORP.

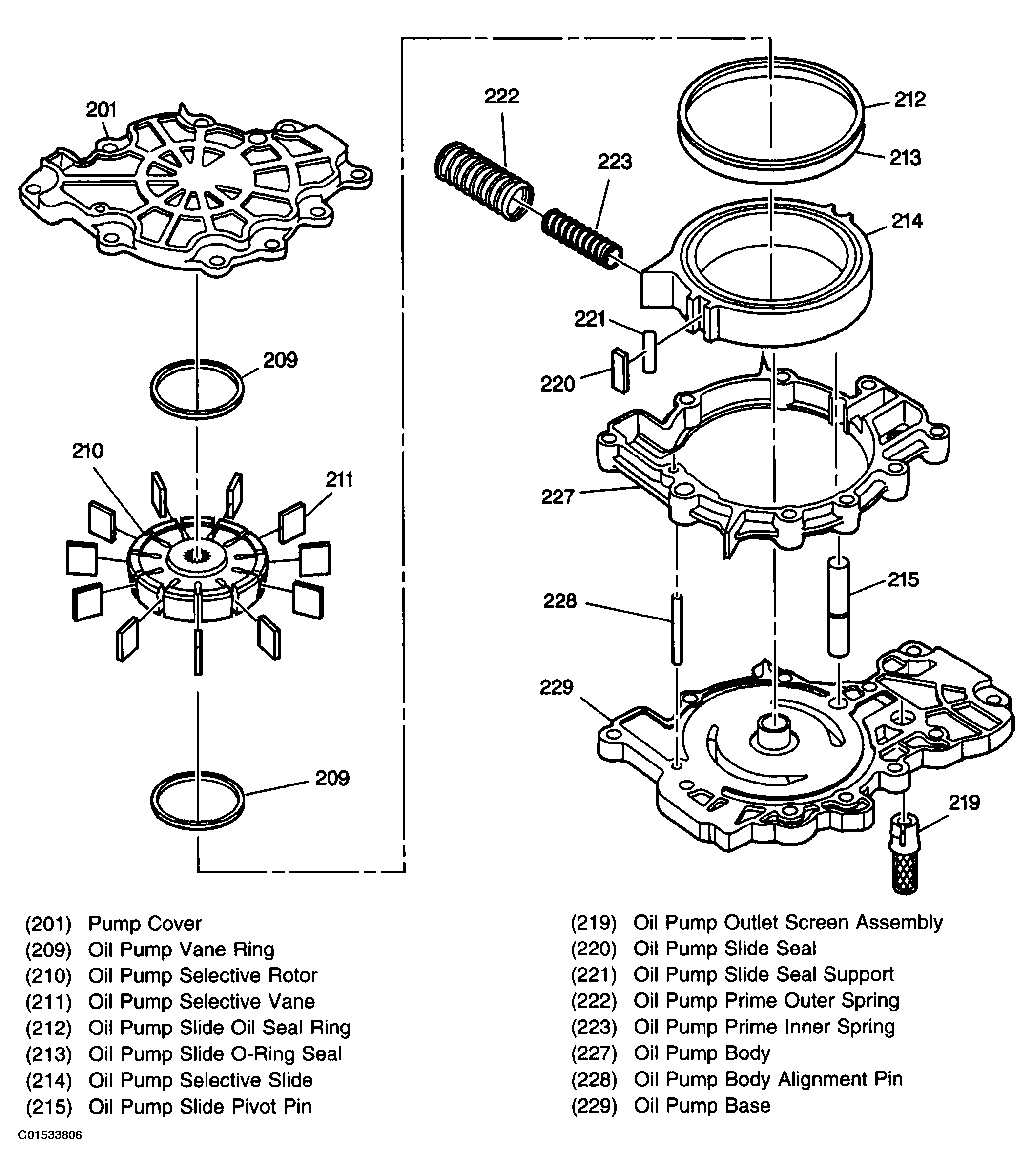

Fig 5: Oil Pump Assembly - 2 Piece Pump Disassembled View

Courtesy of GENERAL MOTORS CORP.

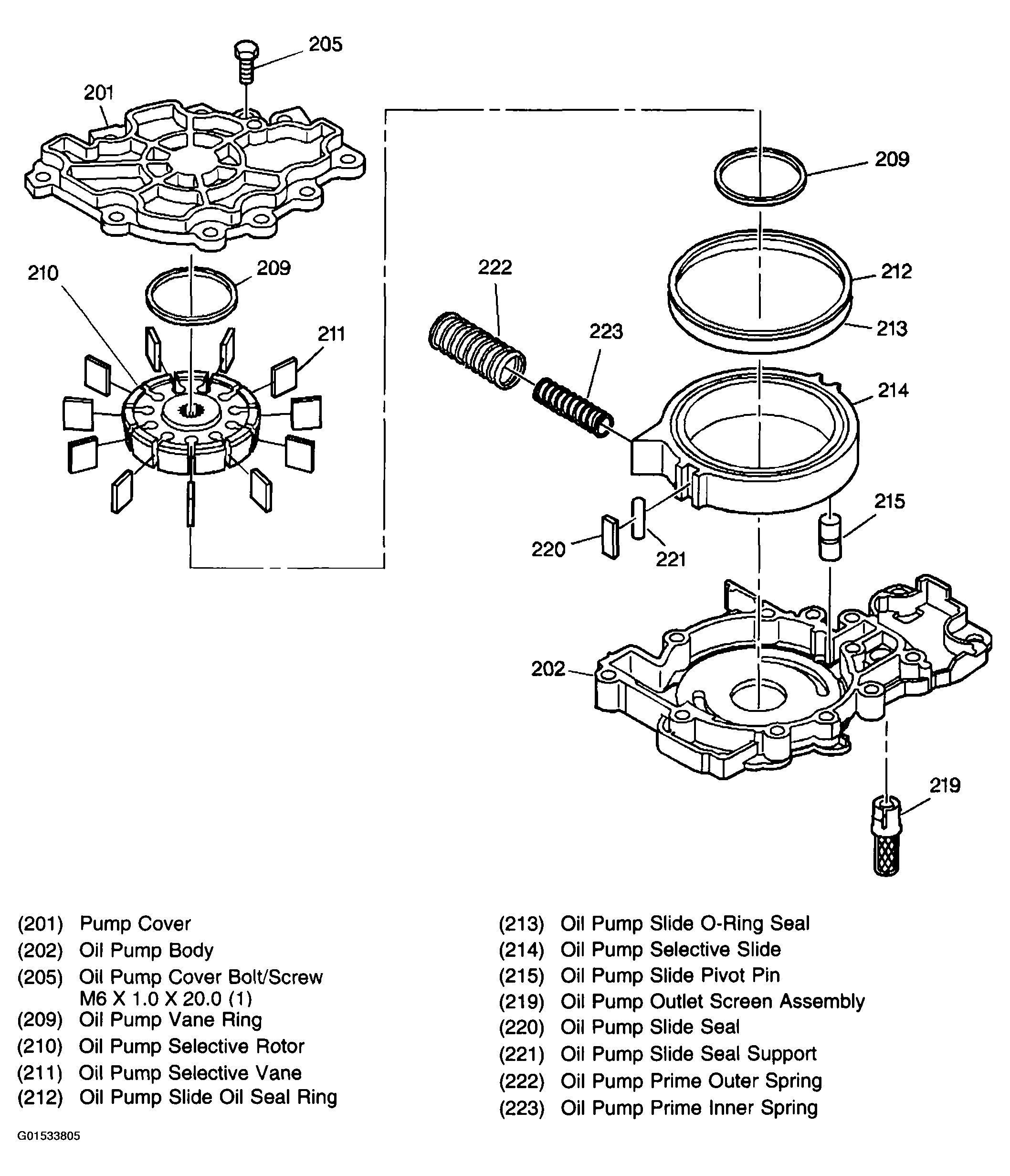

Fig 6: Oil Pump Assembly - 3 Piece Pump Disassembled View

Courtesy of GENERAL MOTORS CORP.

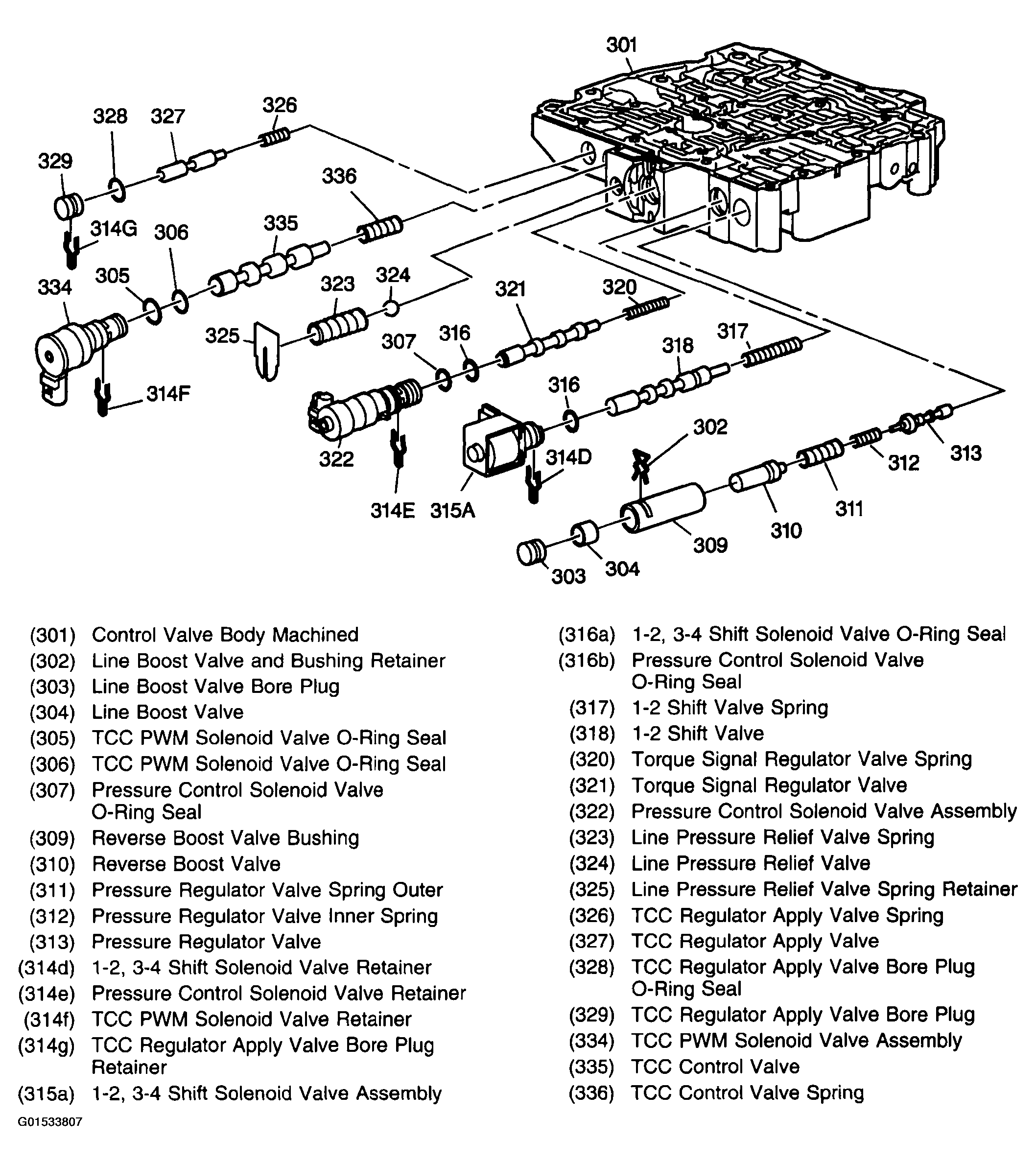

Fig 7: Control Valve Body Assembly Disassembled View (1 of 2)

Courtesy of GENERAL MOTORS CORP.

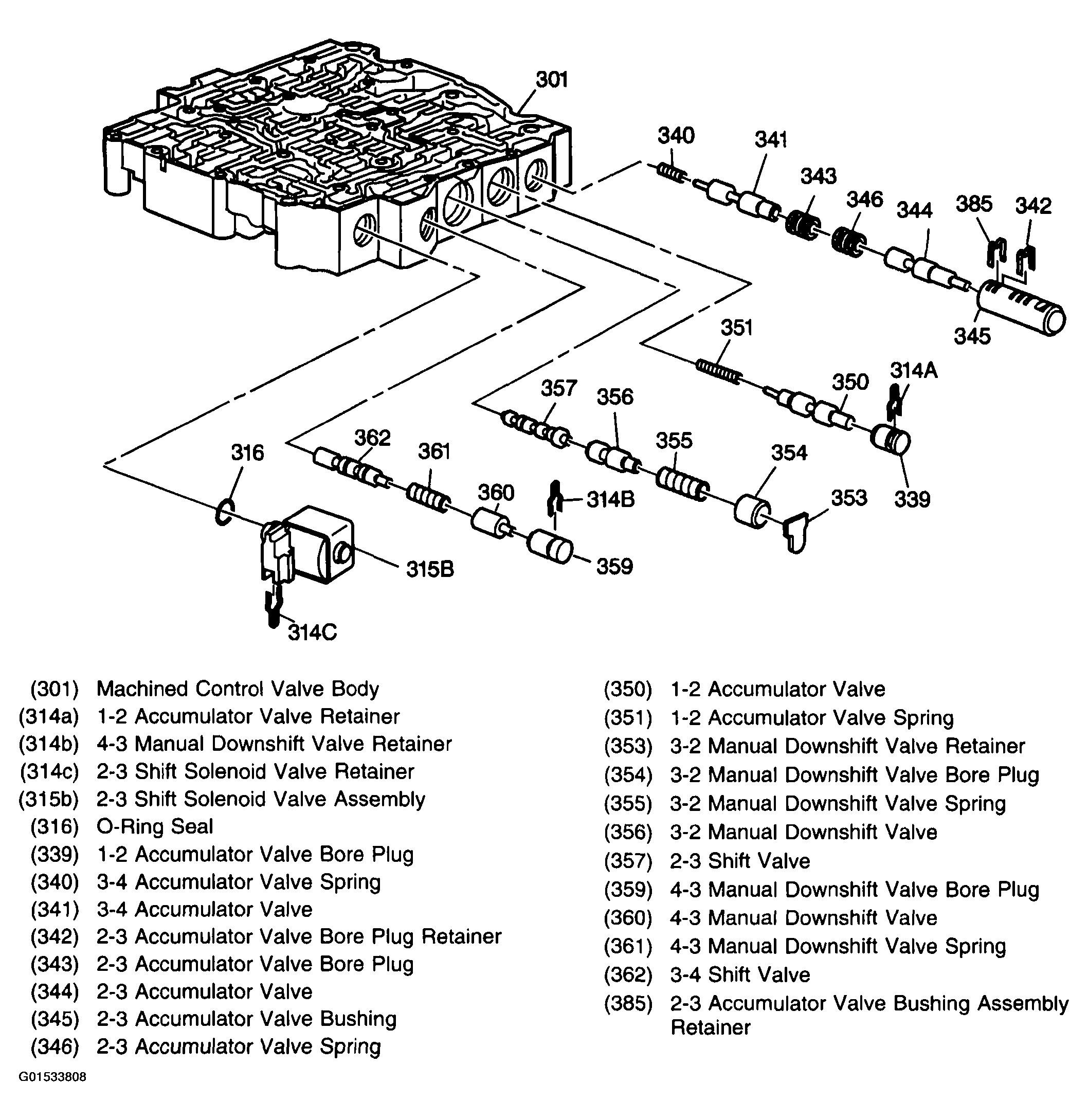

Fig 8: Control Valve Body Assembly Disassembled View (2 of 2)

Courtesy of GENERAL MOTORS CORP.

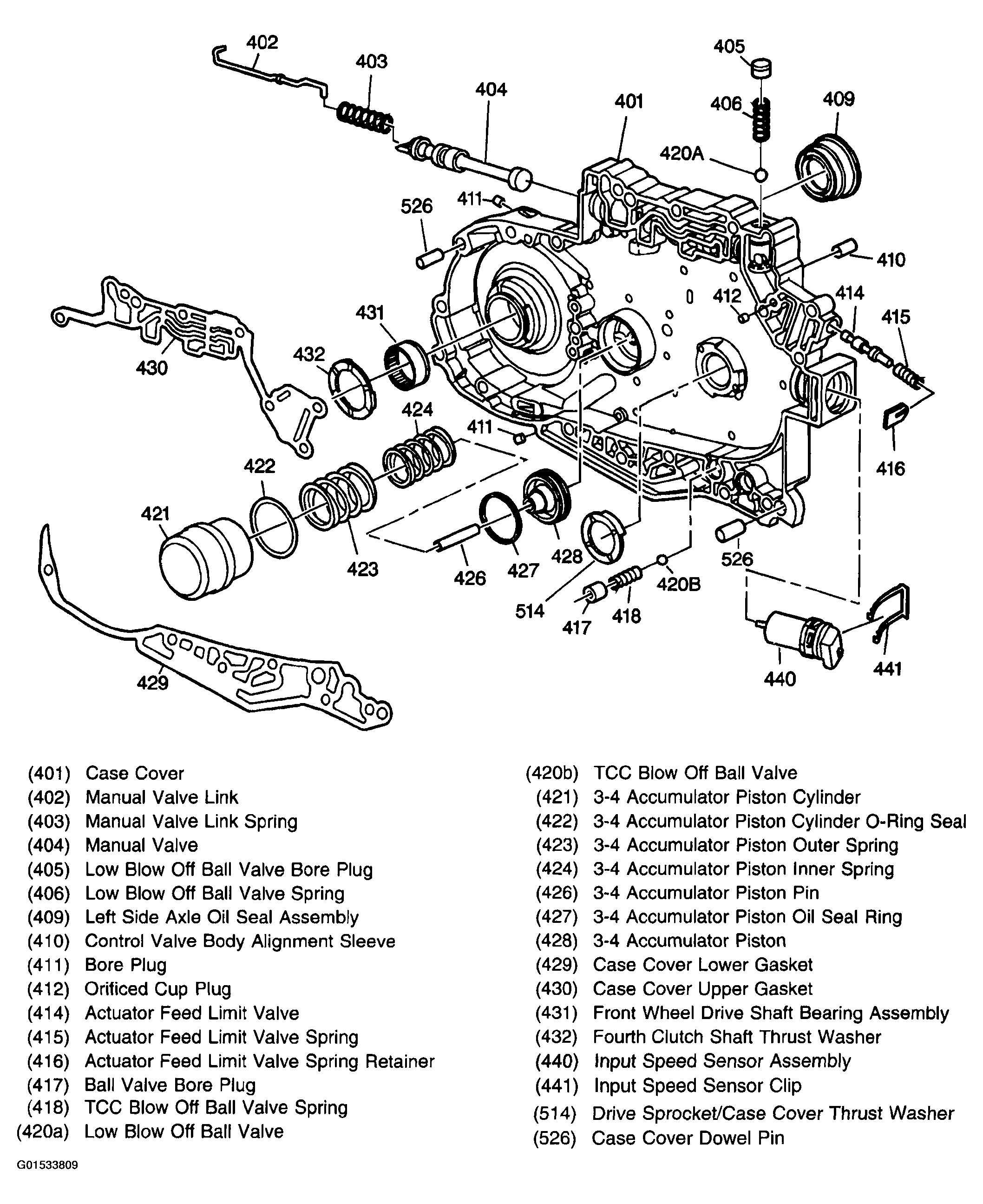

Fig 9: Case Cover Assembly Disassembled View

Courtesy of GENERAL MOTORS CORP.

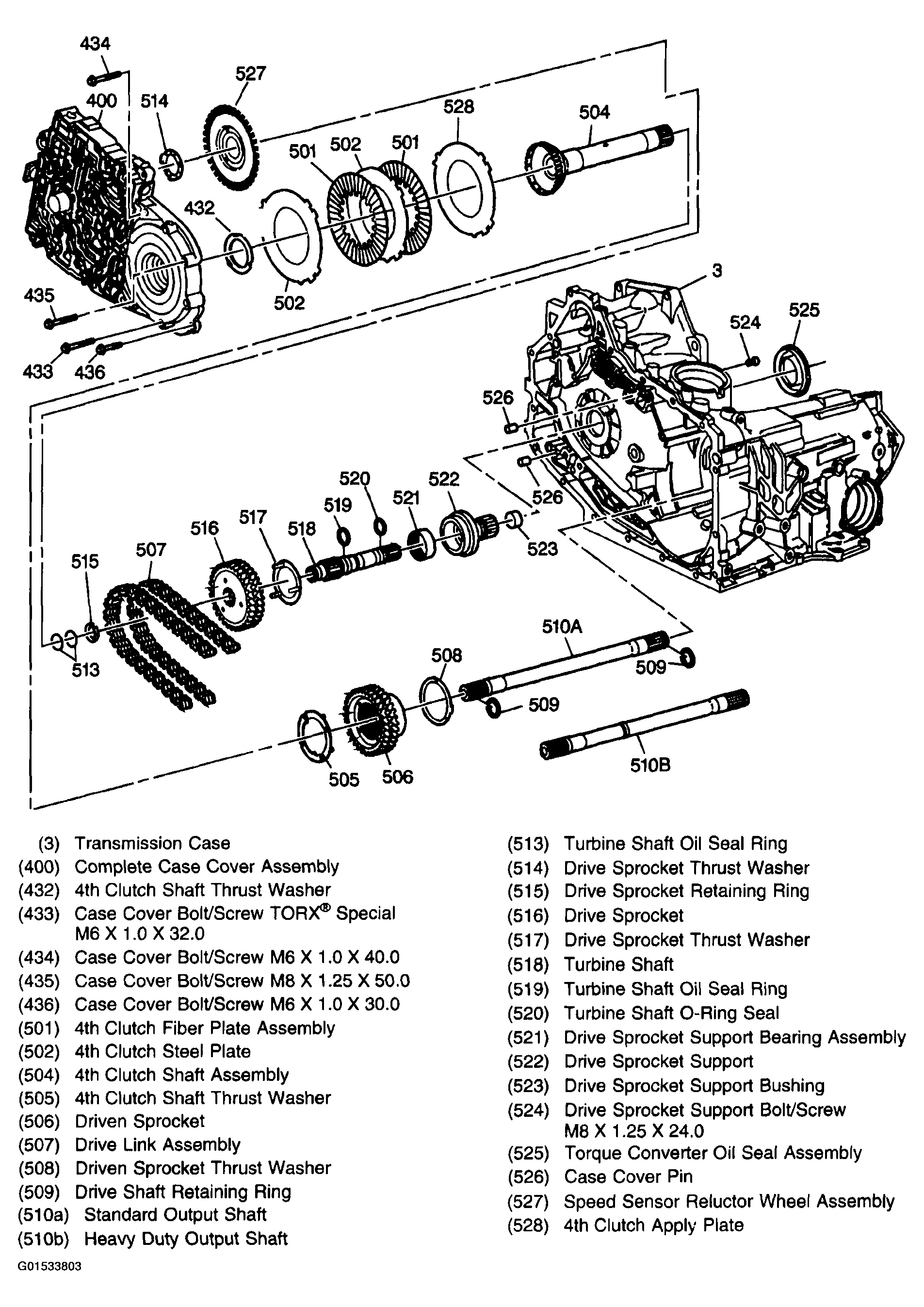

Fig 10: Internal Components Disassembled View (1 of 2)

Courtesy of GENERAL MOTORS CORP.

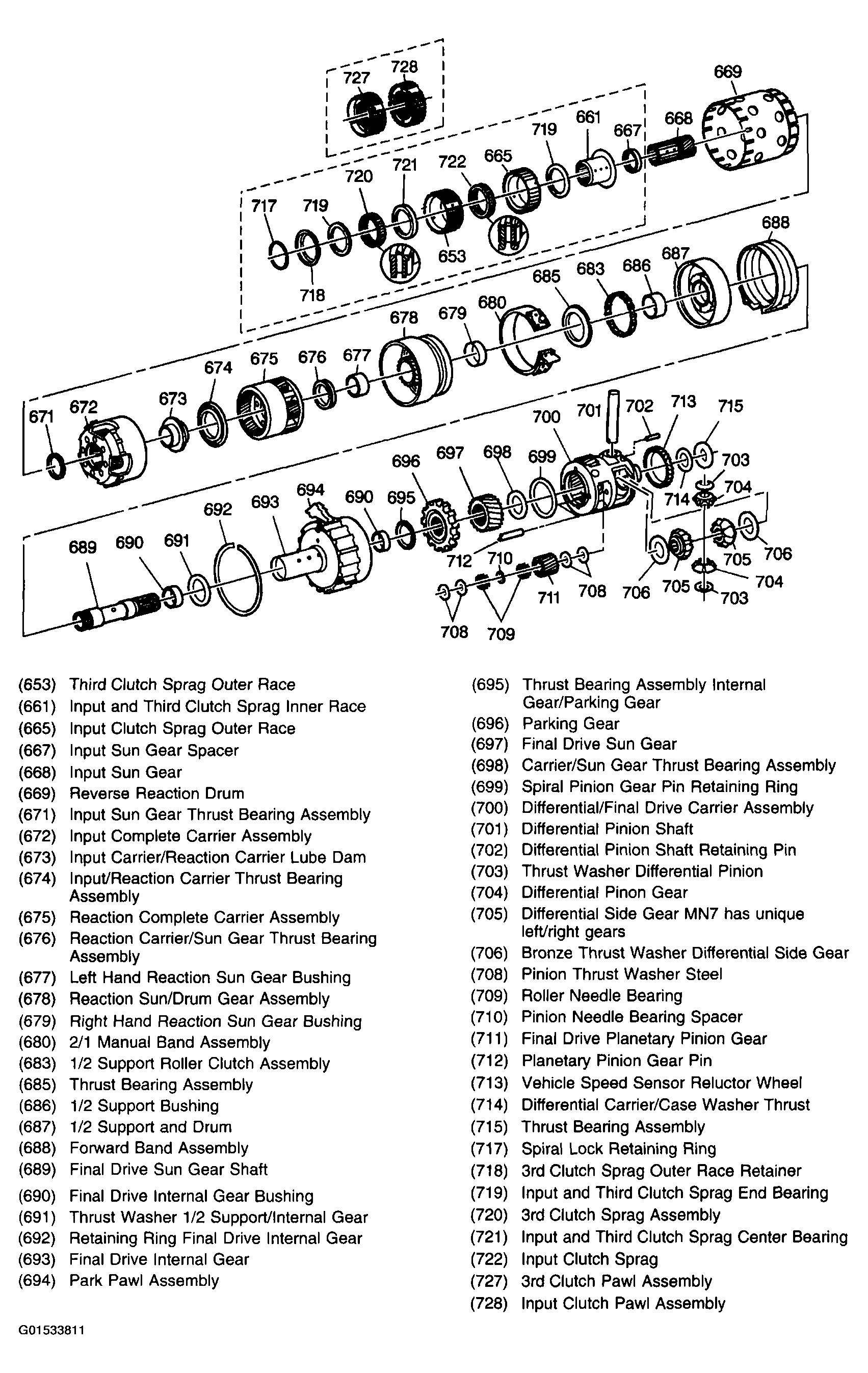

Fig 11: Internal Components Disassembled View (2 of 2)

Courtesy of GENERAL MOTORS CORP.

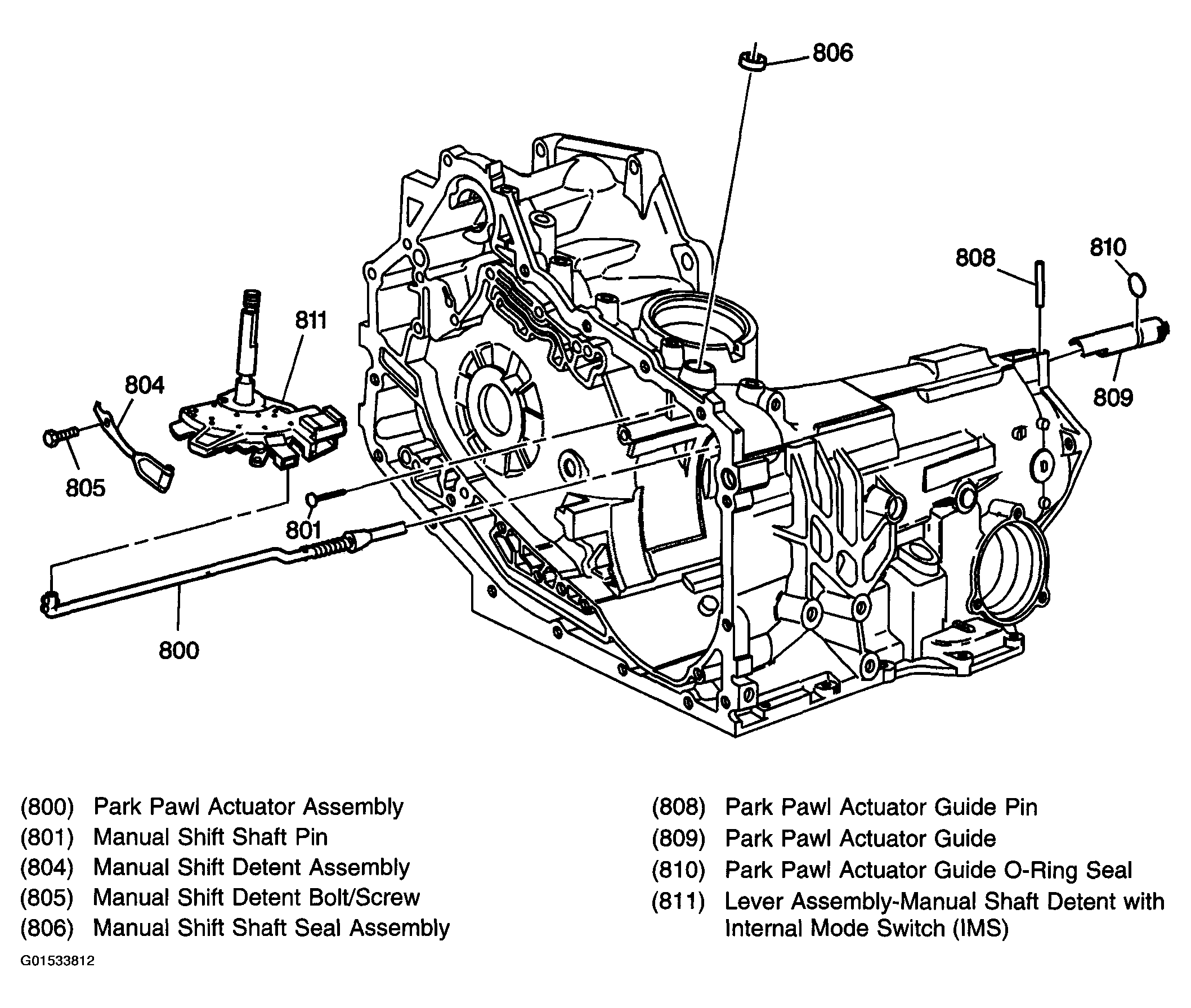

Fig 12: Manual Shaft and Parking System Assembly Disassembled View

Courtesy of GENERAL MOTORS CORP.

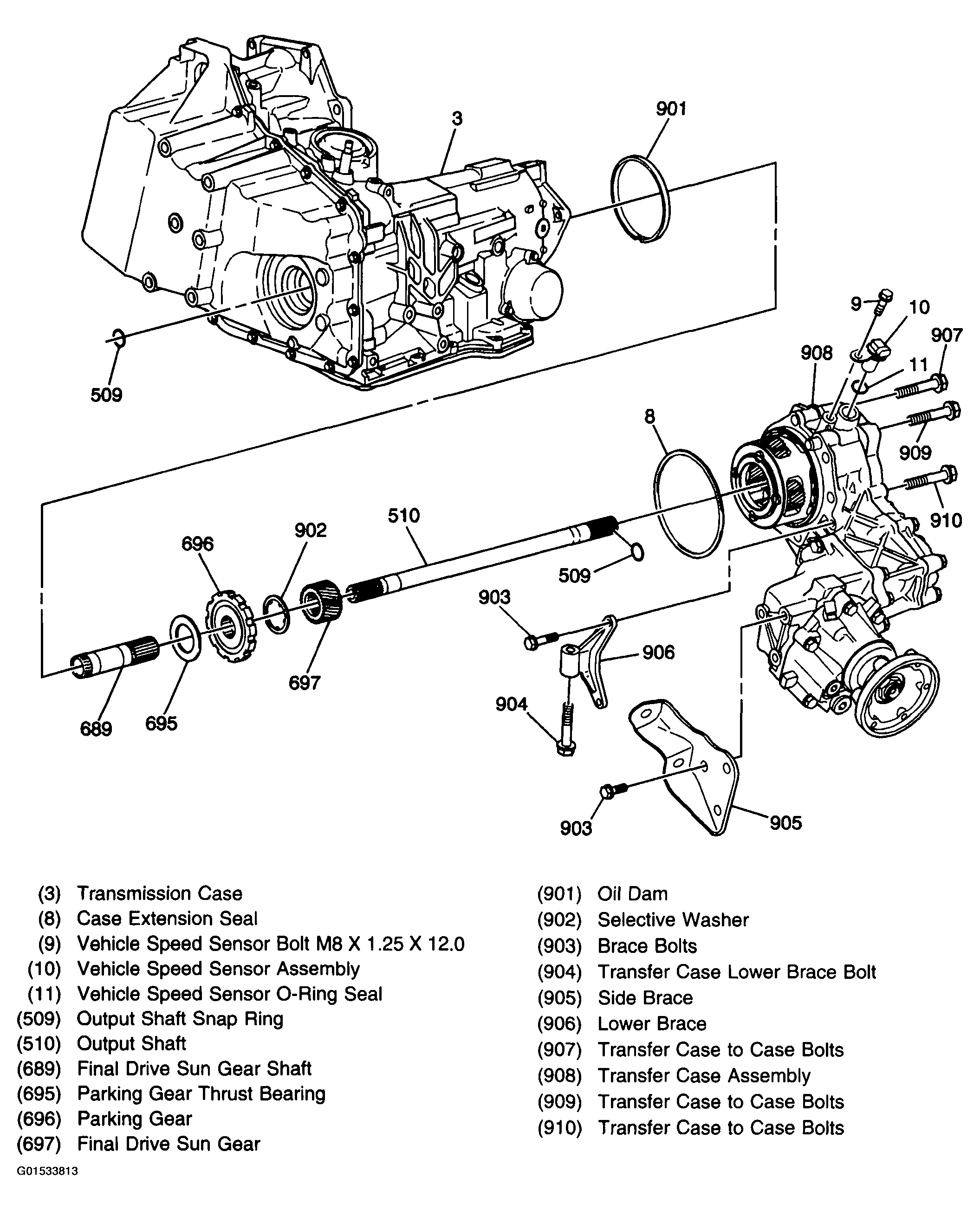

Fig 13: Transmission to Transfer Case Components Disassembled View

Courtesy of GENERAL MOTORS CORP.
