Component Location

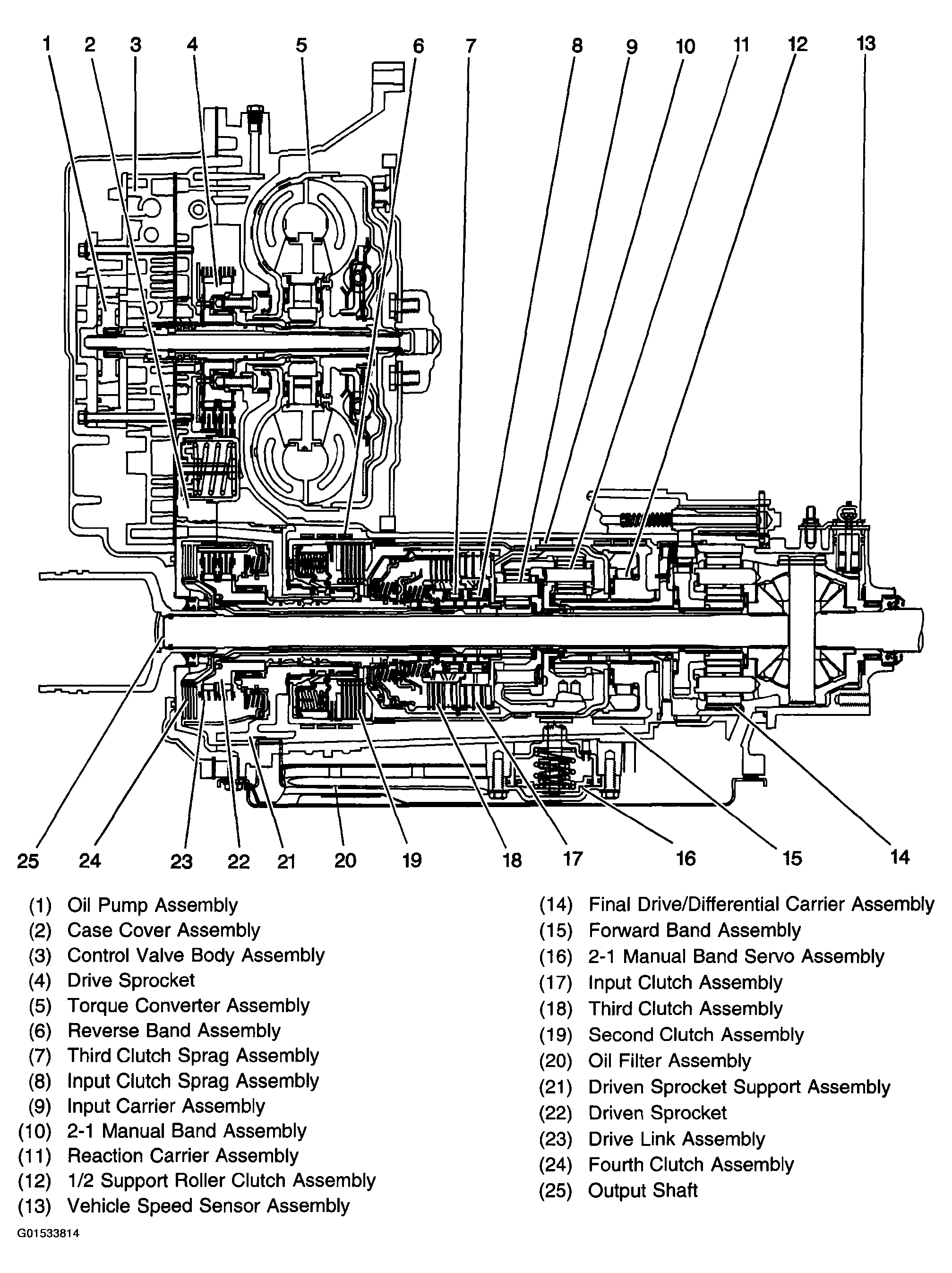

Fig 1: Transmission Major Components

Courtesy of GENERAL MOTORS CORP.

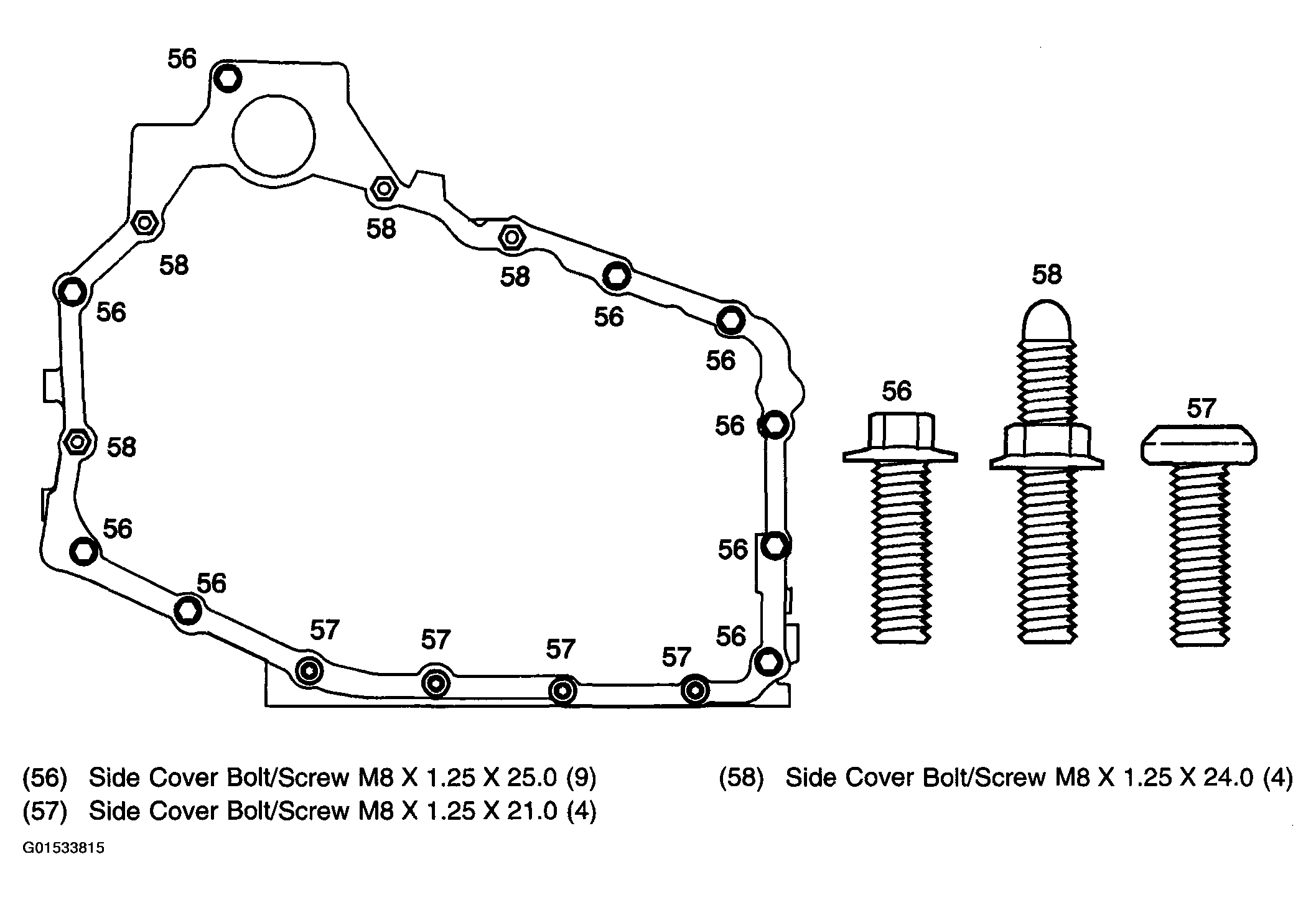

Fig 2: Identifying Case Side Cover Bolts

Courtesy of GENERAL MOTORS CORP.

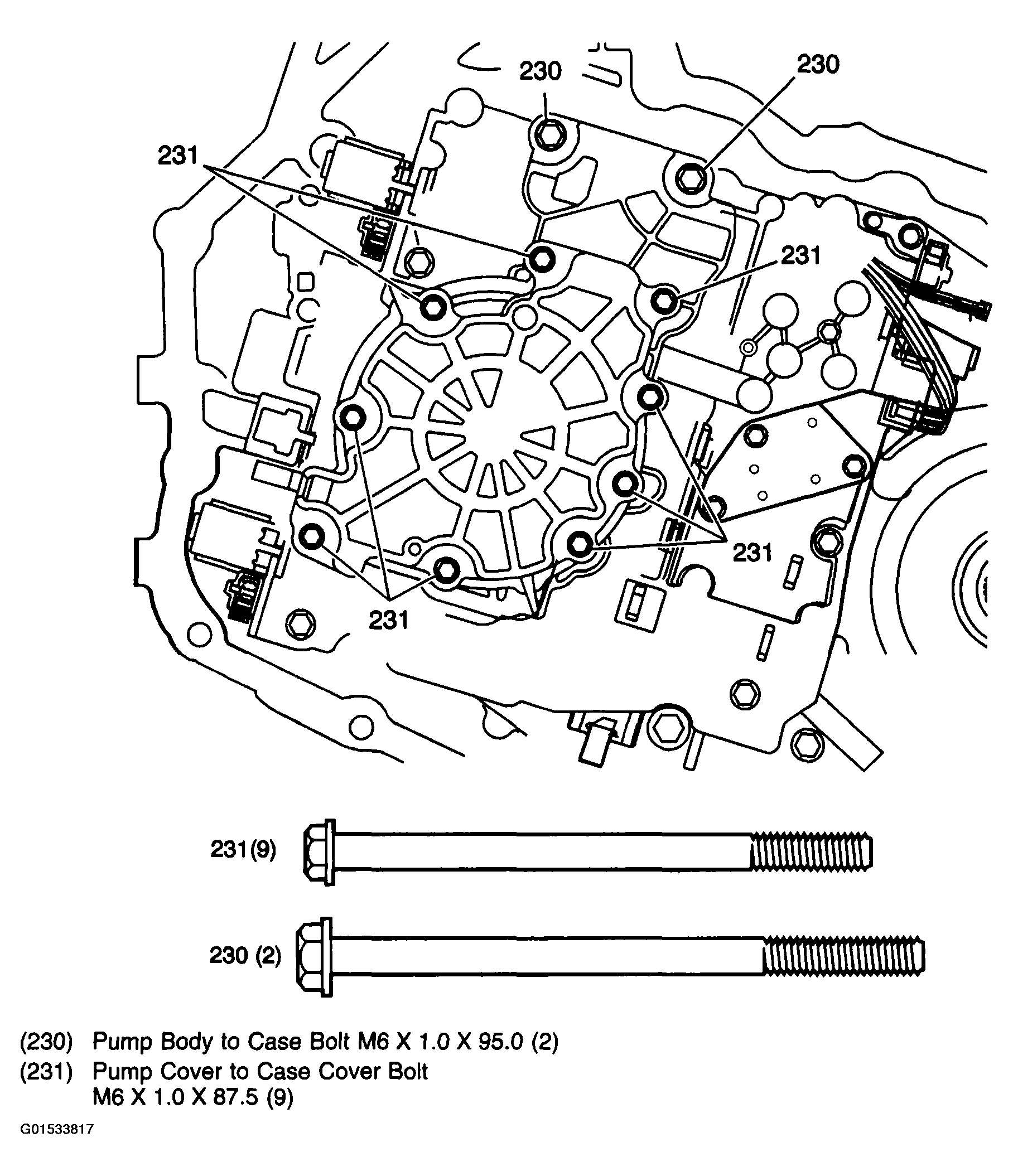

Fig 3: Identifying Oil Pump Bolts - 2 Piece Pump

Courtesy of GENERAL MOTORS CORP.

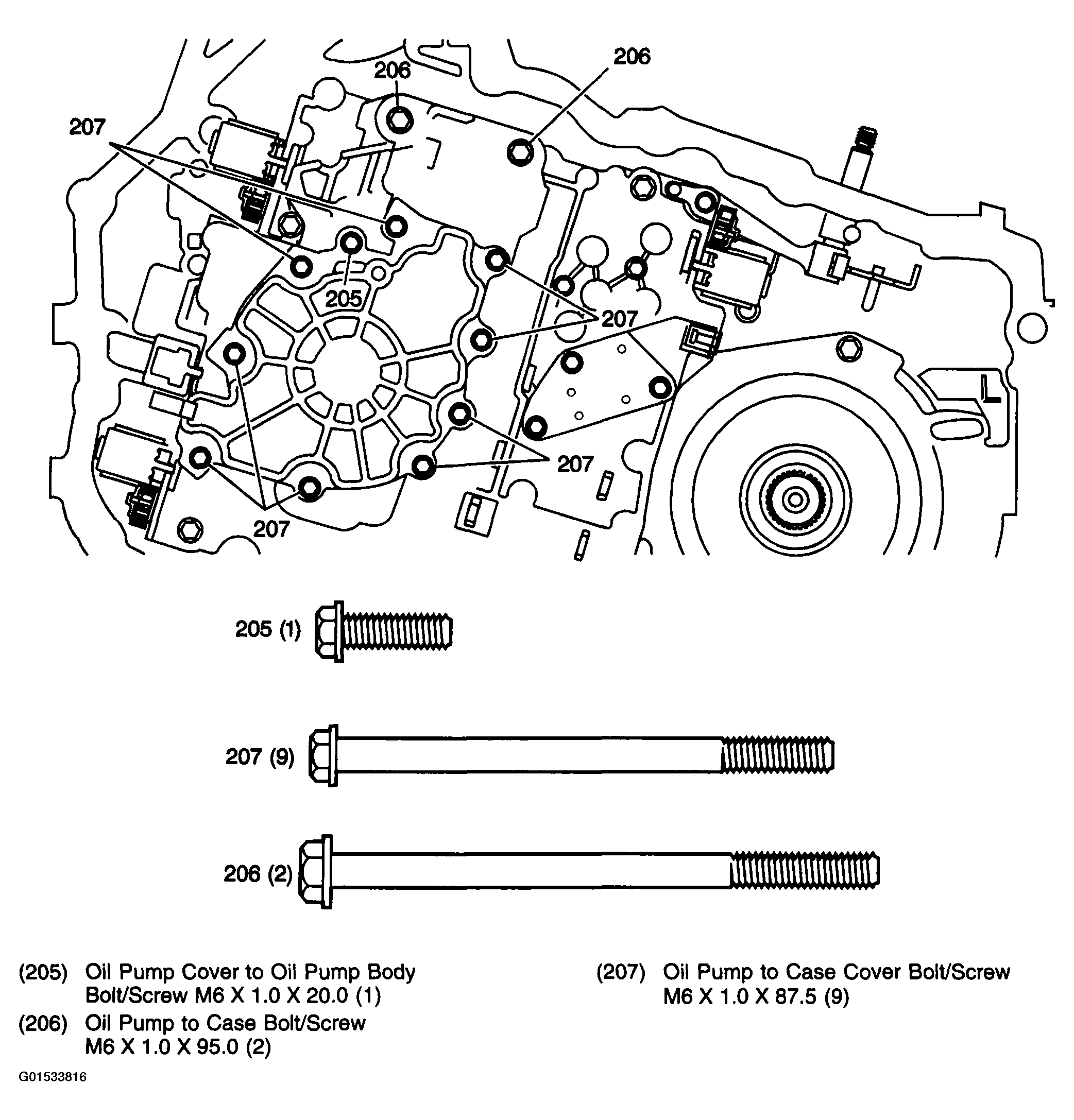

Fig 4: Identifying Oil Pump Bolts - 3 Piece Pump

Courtesy of GENERAL MOTORS CORP.

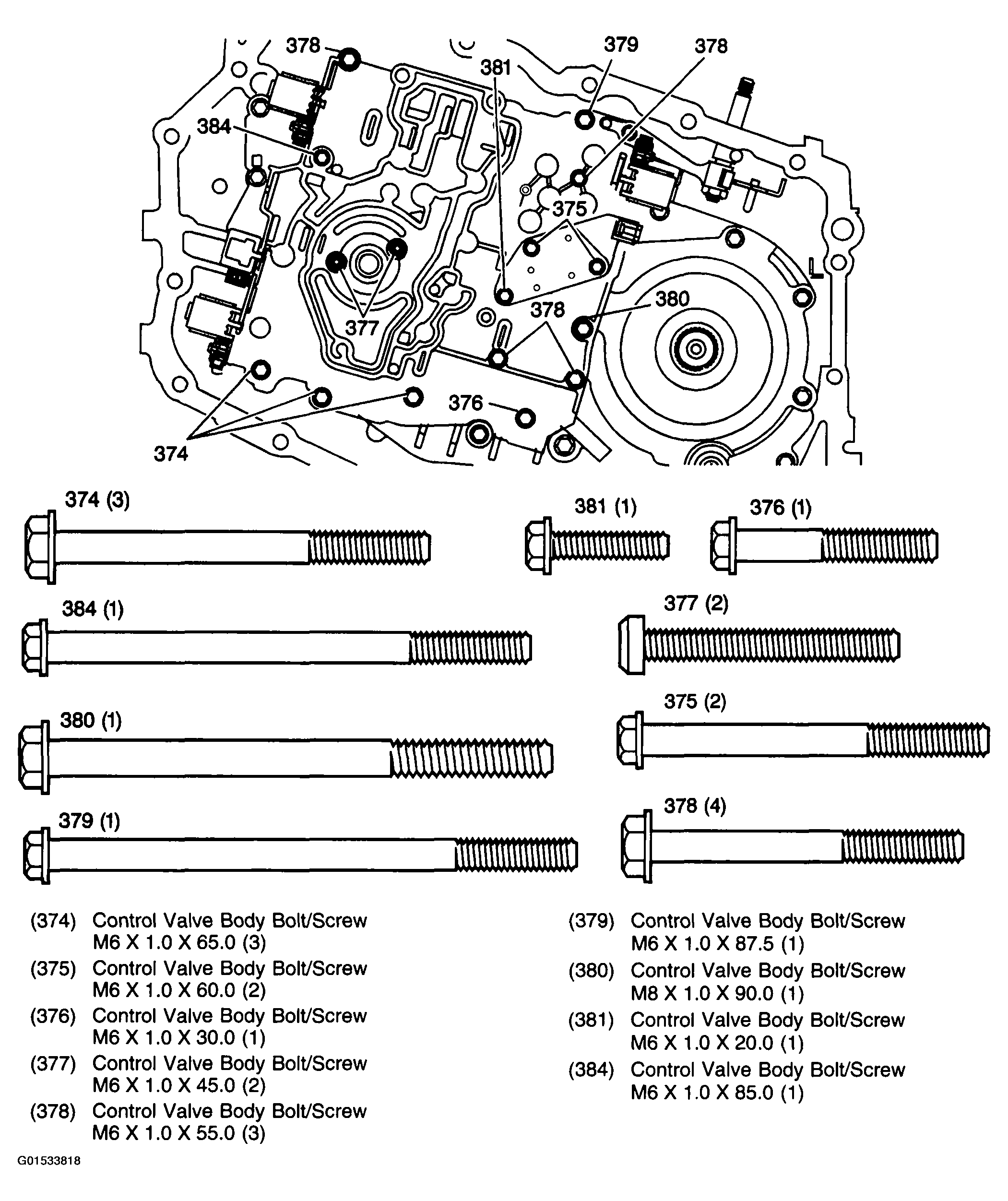

Fig 5: Identifying Control Valve Body Bolts

Courtesy of GENERAL MOTORS CORP.

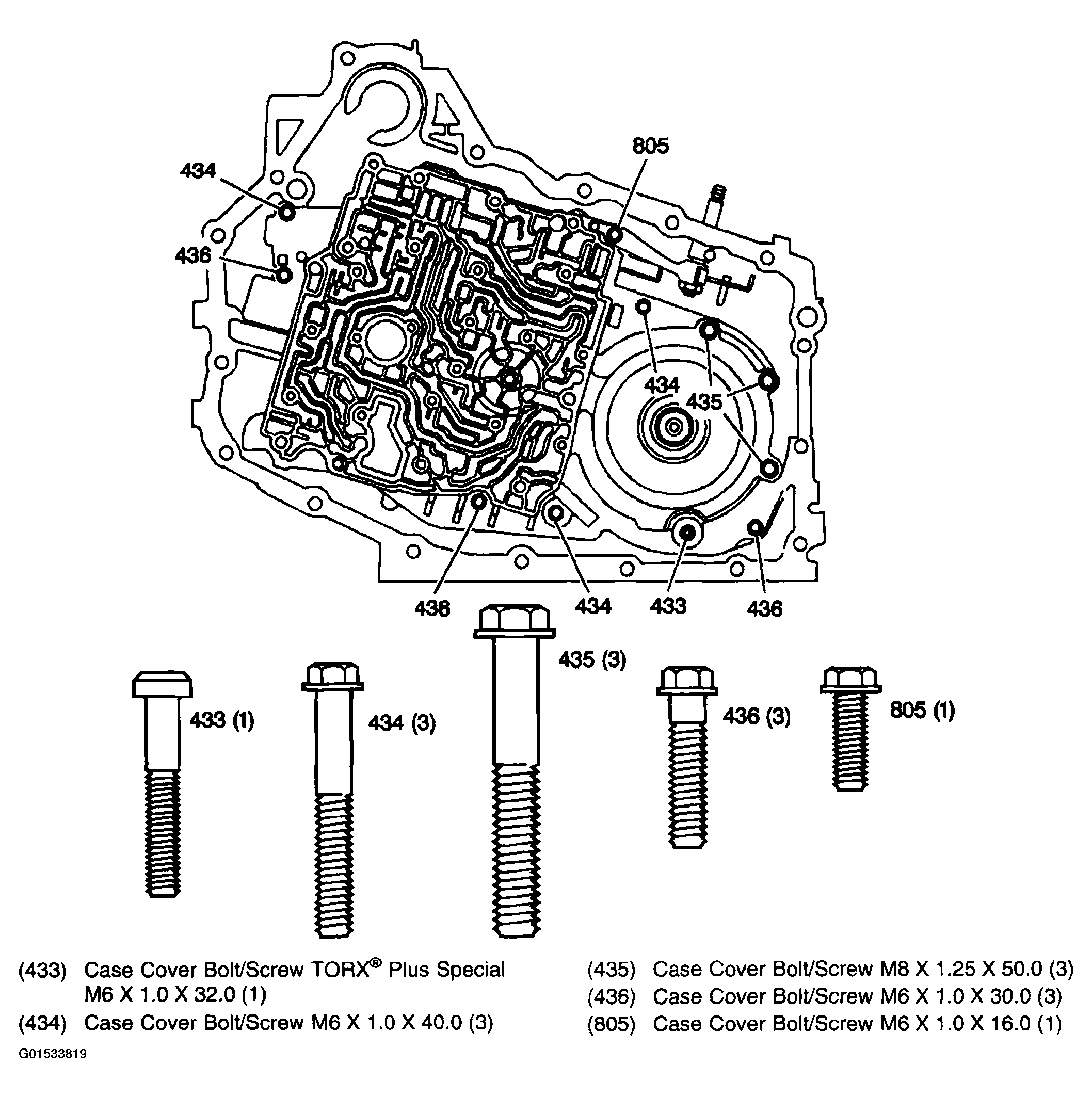

Fig 6: Identifying Case Cover Bolts

Courtesy of GENERAL MOTORS CORP.

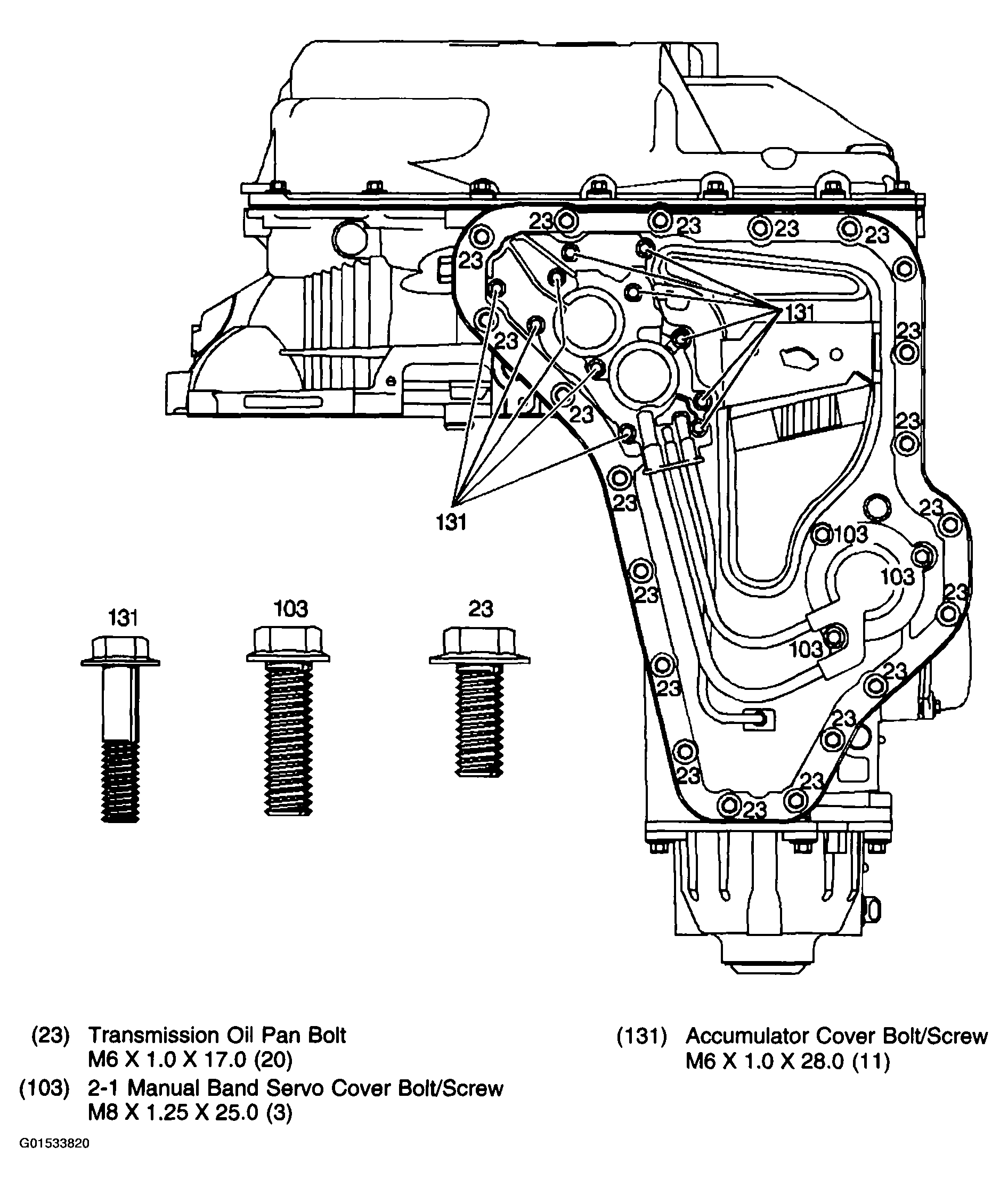

Fig 7: Identifying Bottom Pan, Accumulator Cover and Manual 2-1 Band Servo Cover Bolts

Courtesy of GENERAL MOTORS CORP.

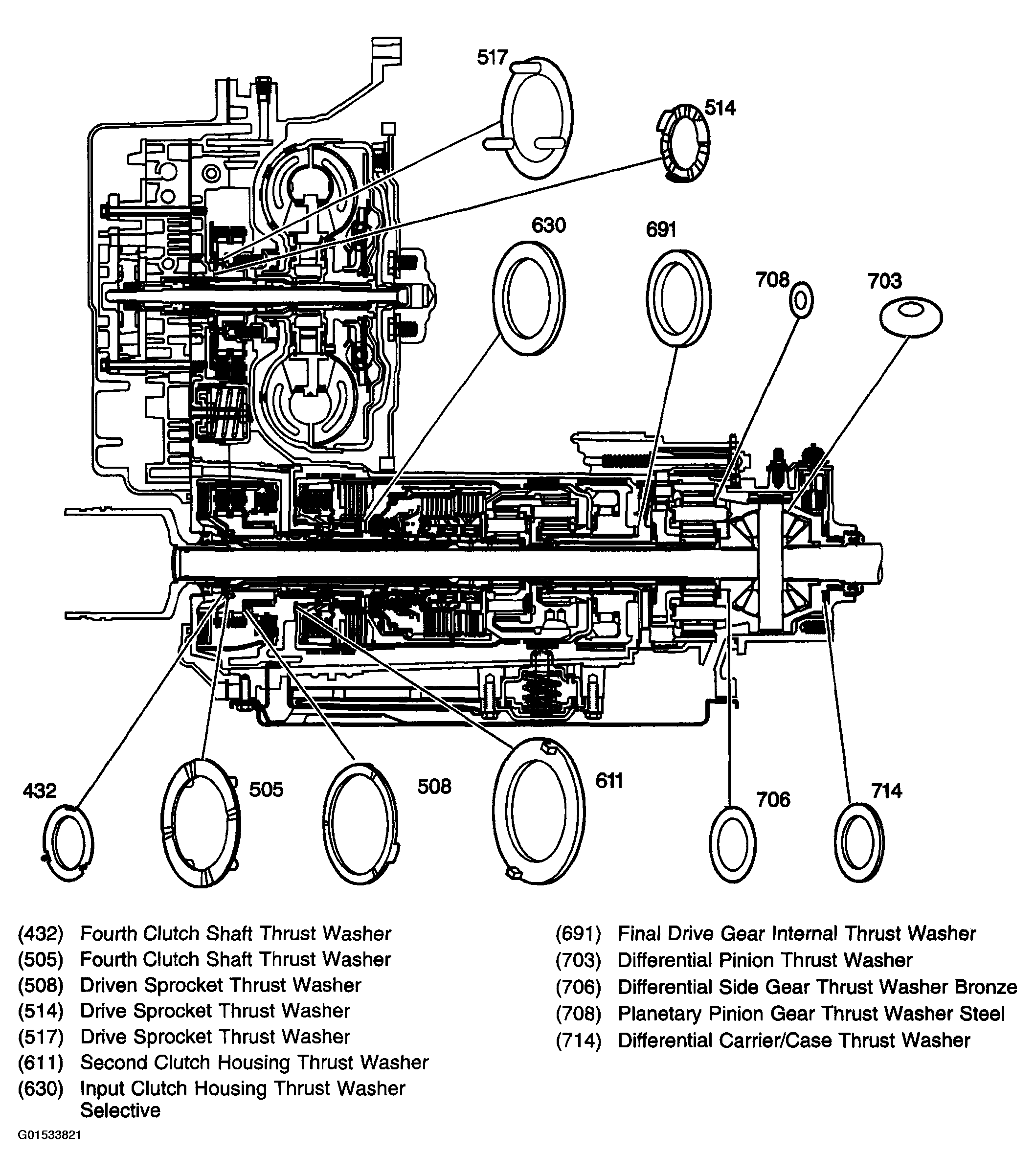

Fig 8: Identifying Thrust Washers

Courtesy of GENERAL MOTORS CORP.

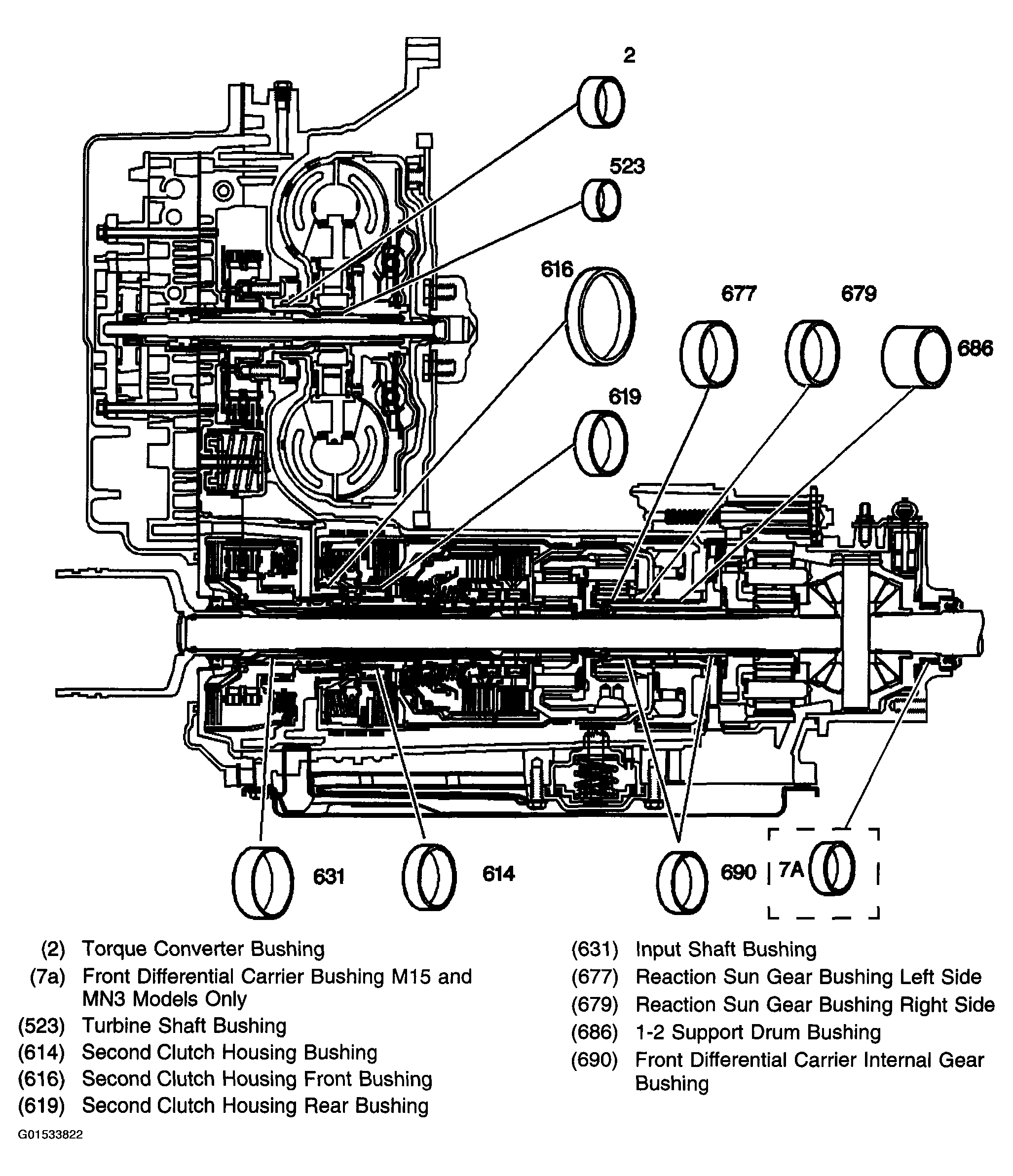

Fig 9: Identifying Bushings

Courtesy of GENERAL MOTORS CORP.

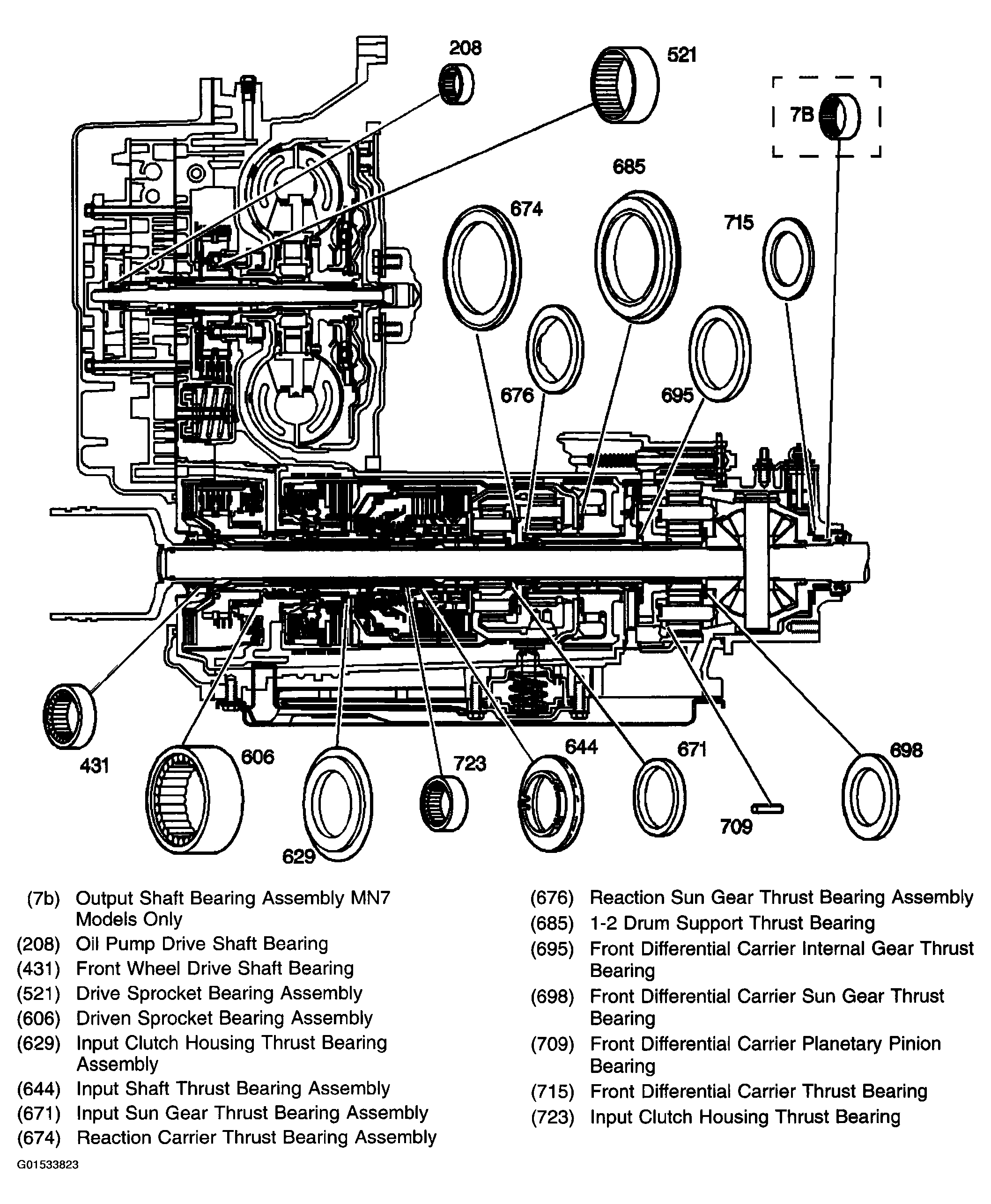

Fig 10: Identifying Bearings

Courtesy of GENERAL MOTORS CORP.

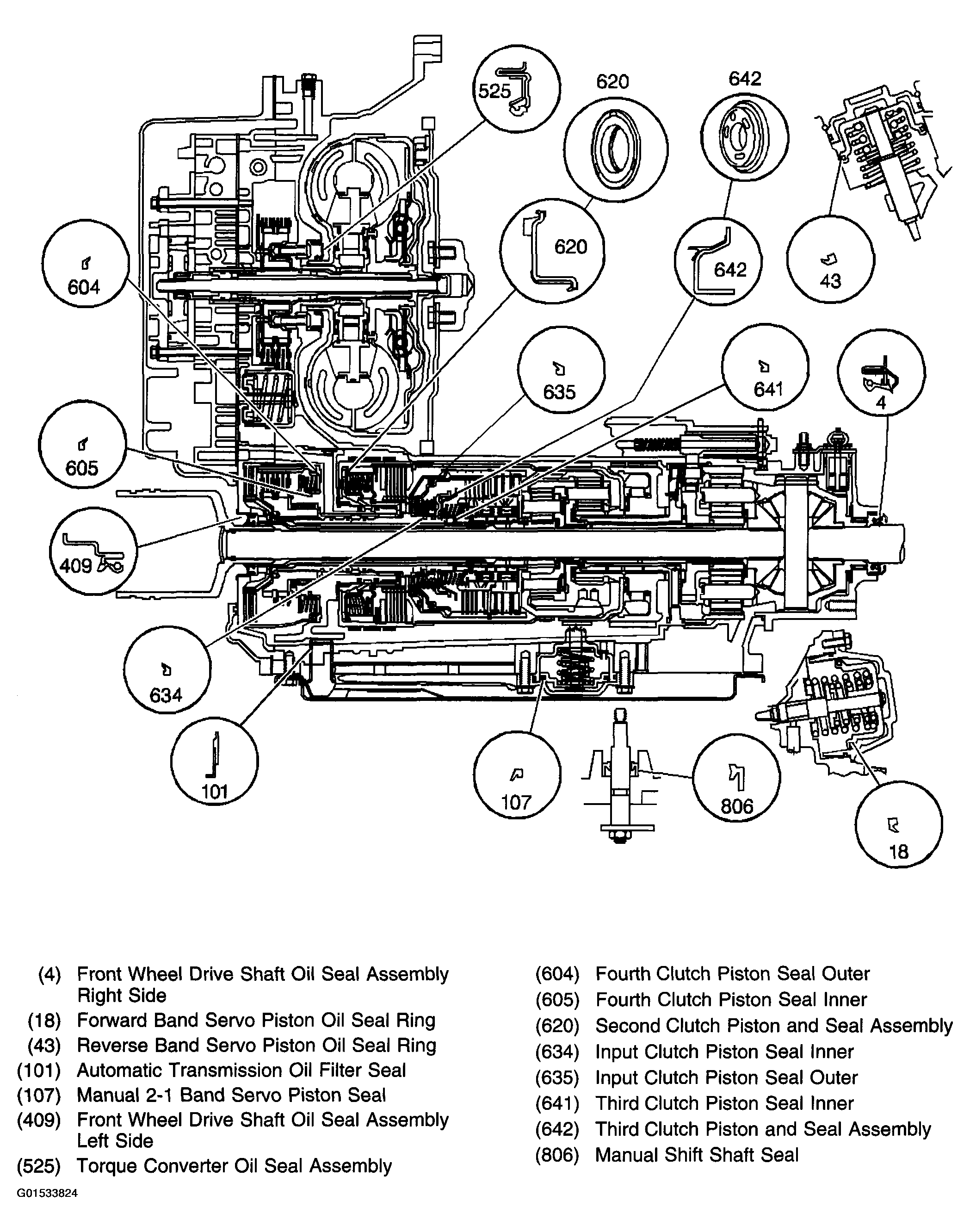

Fig 11: Identifying Lip Seals

Courtesy of GENERAL MOTORS CORP.

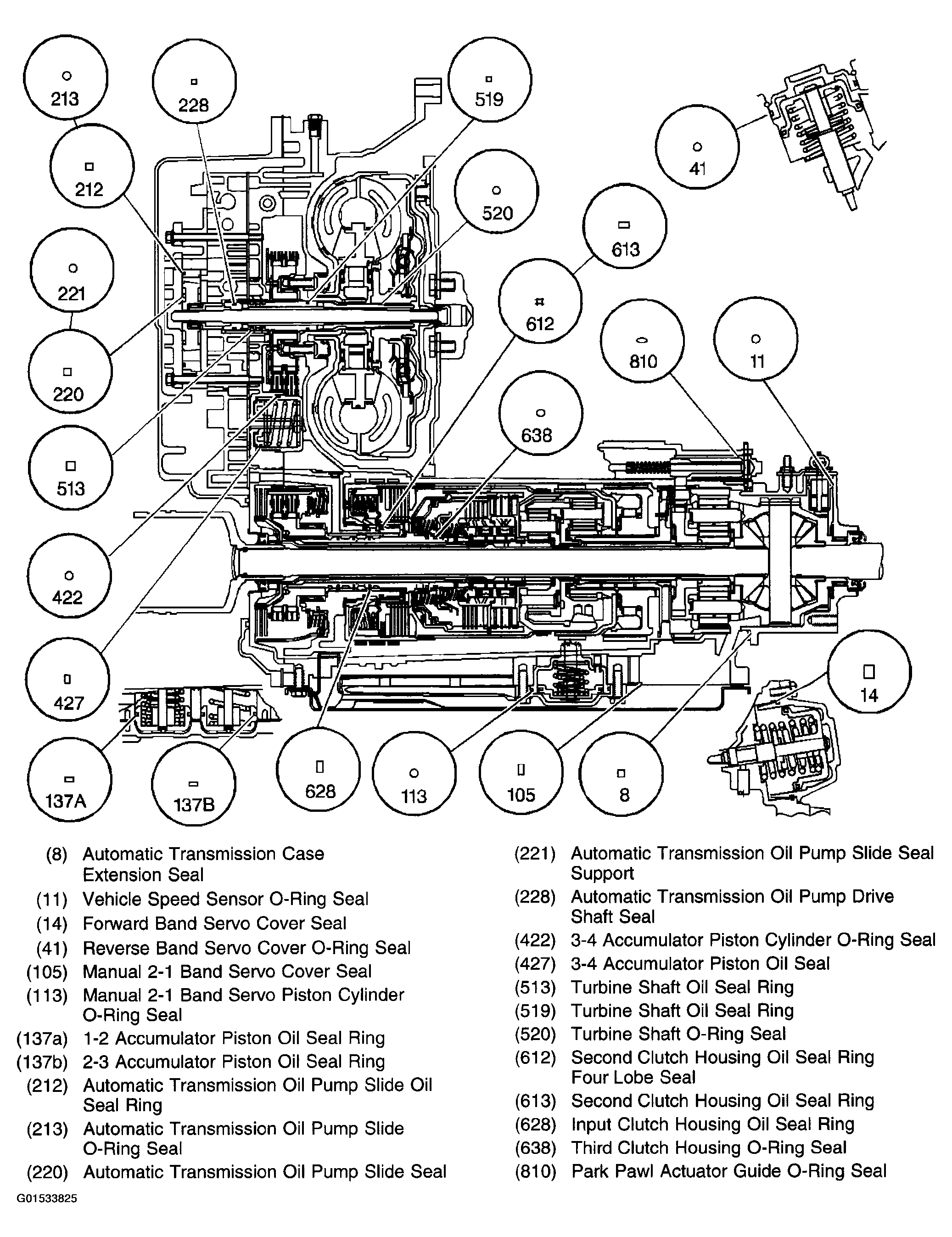

Fig 12: Identifying Square and O-Ring Seals

Courtesy of GENERAL MOTORS CORP.

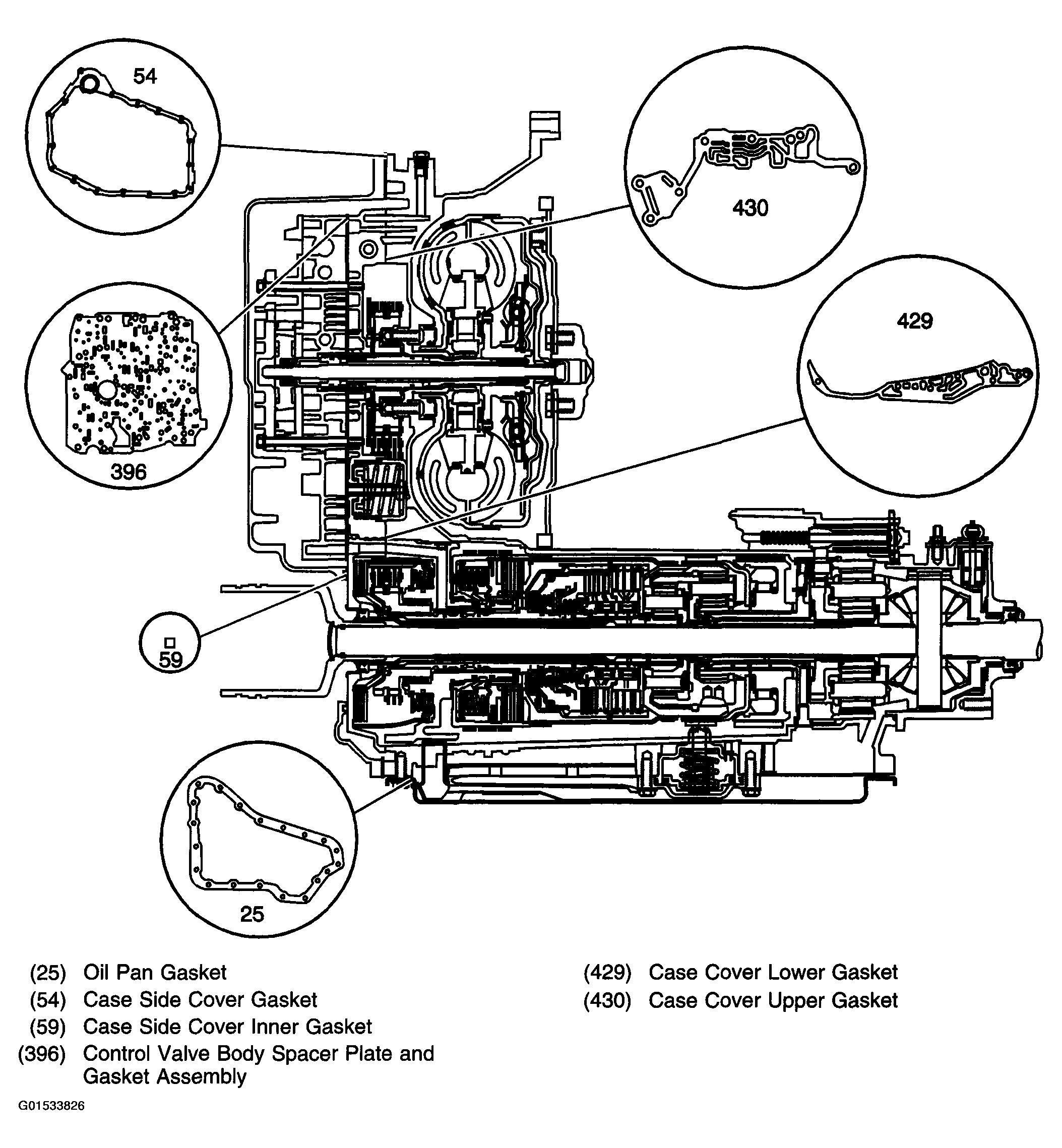

Fig 13: Identifying Gaskets

Courtesy of GENERAL MOTORS CORP.

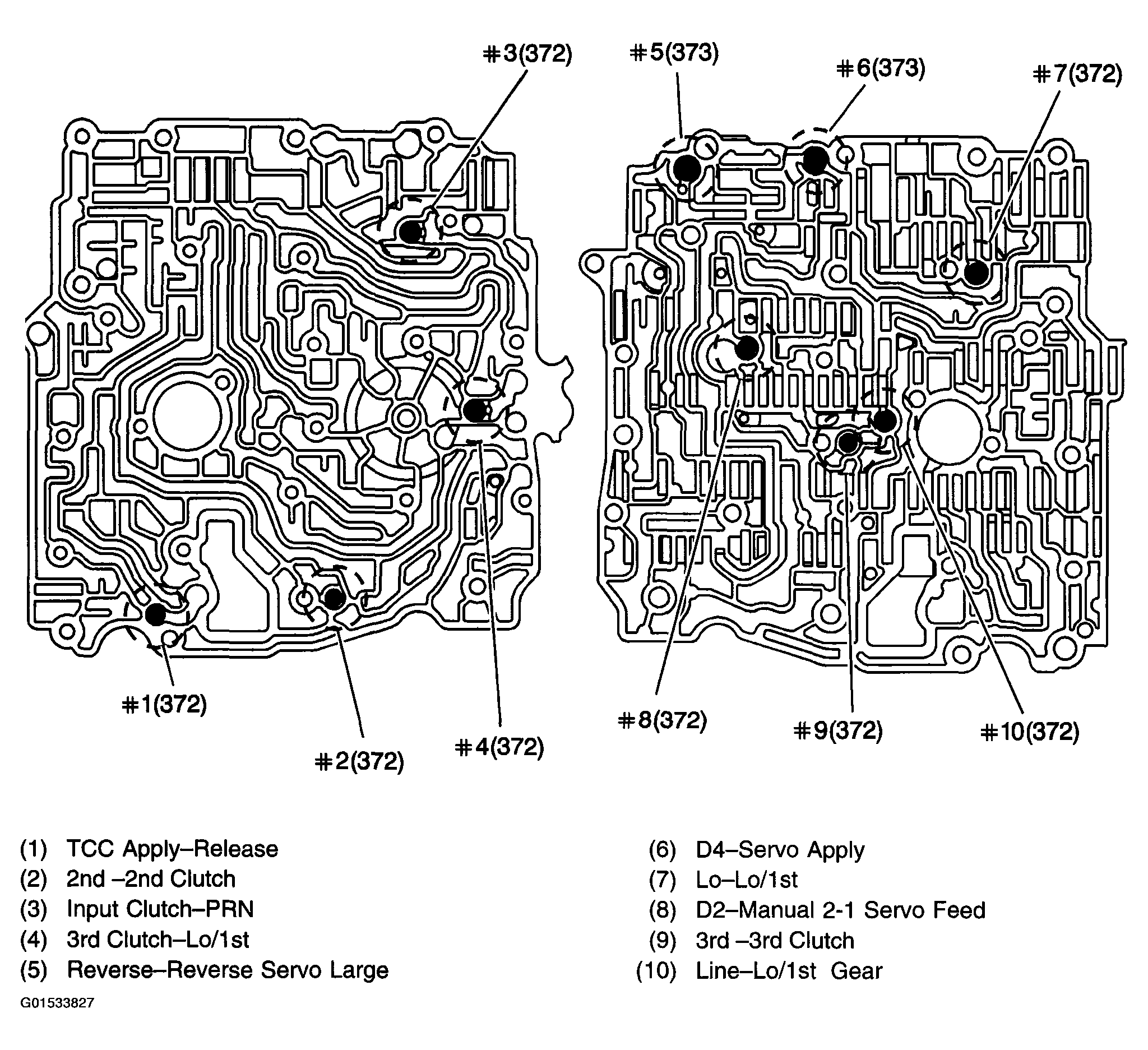

Fig 14: Identifying Ball Check Valves

Courtesy of GENERAL MOTORS CORP.
