Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Tighten the lower control arm mounting nuts (3, 4).

    Tighten

    • Tighten the nut (3) to 125 N.m (107 lb ft).
    • Tighten the nut (4) to 50 N.m (37 lb ft).
  2. Test drive the vehicle.

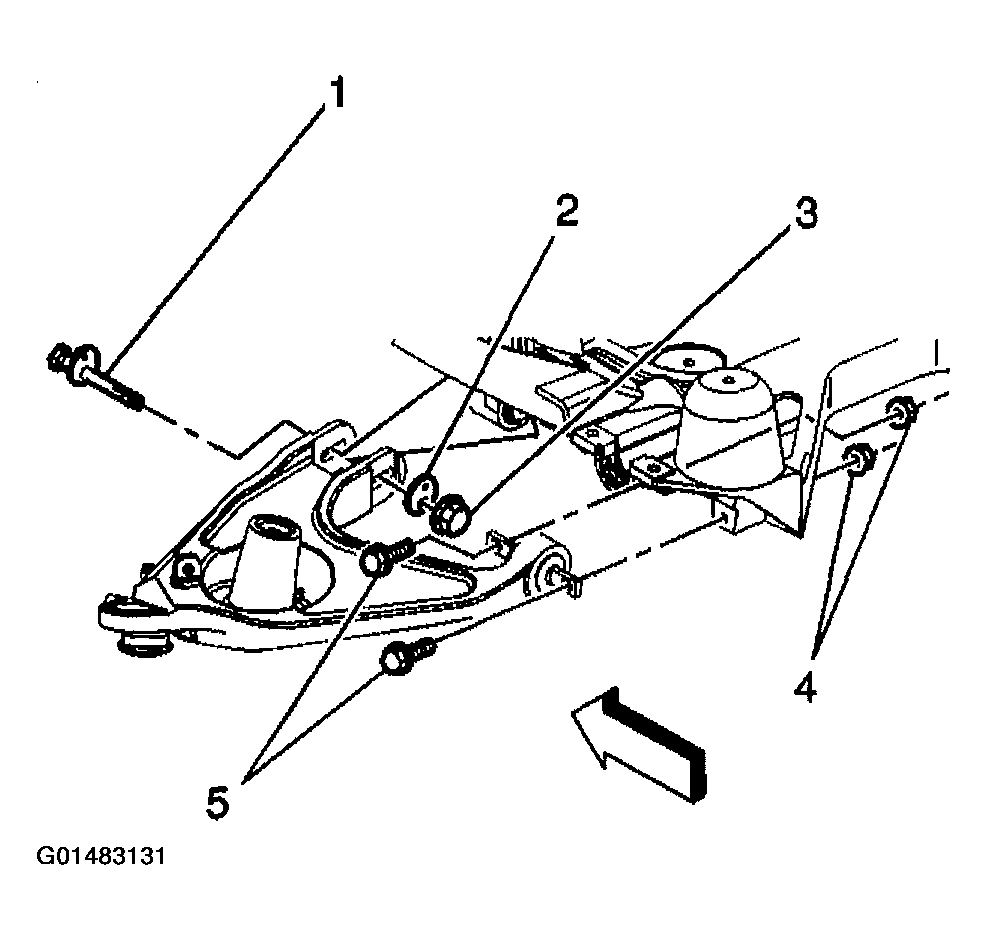

    Fig 1: Tightening Lower Control Arm Mounting Nuts
    G01483131Courtesy of GENERAL MOTORS CORP.
