Lock System Does Not Lock

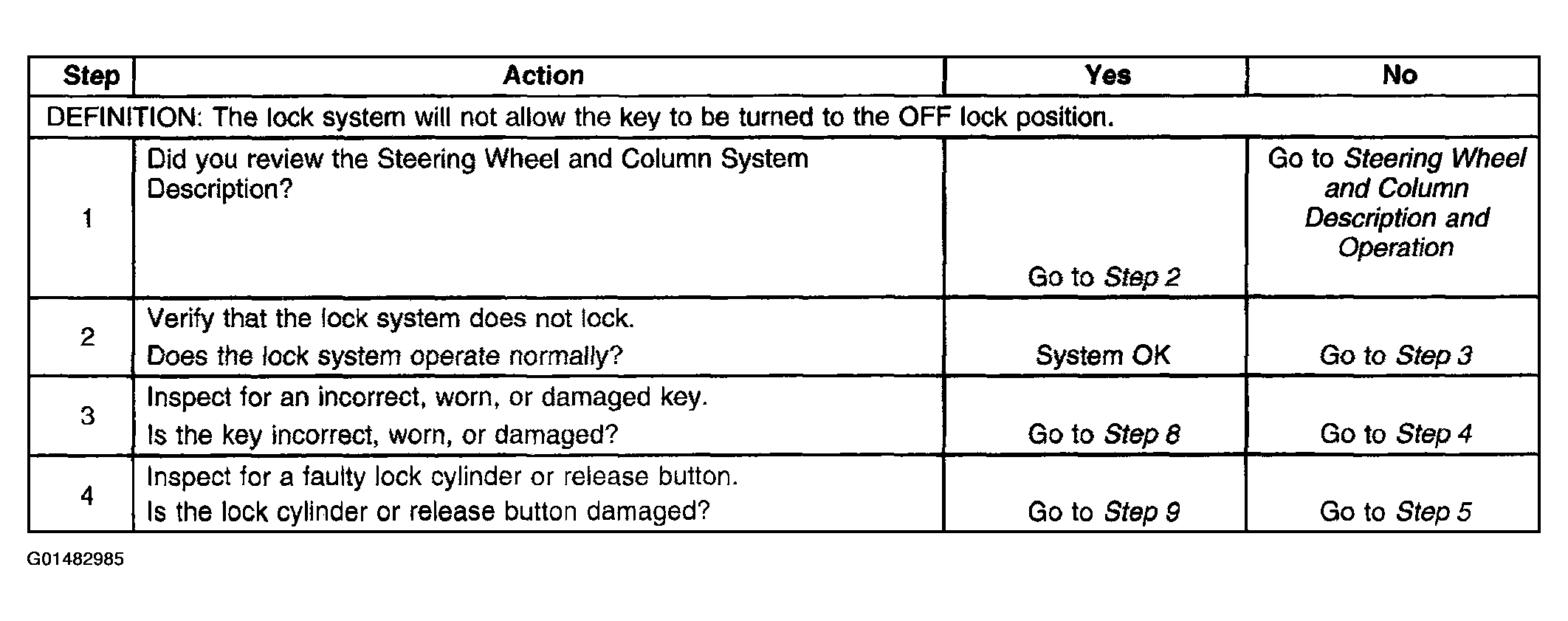

Fig 1: Lock System Does Not Lock Specification (1 Of 2)

G01482985

Courtesy of GENERAL MOTORS CORP.

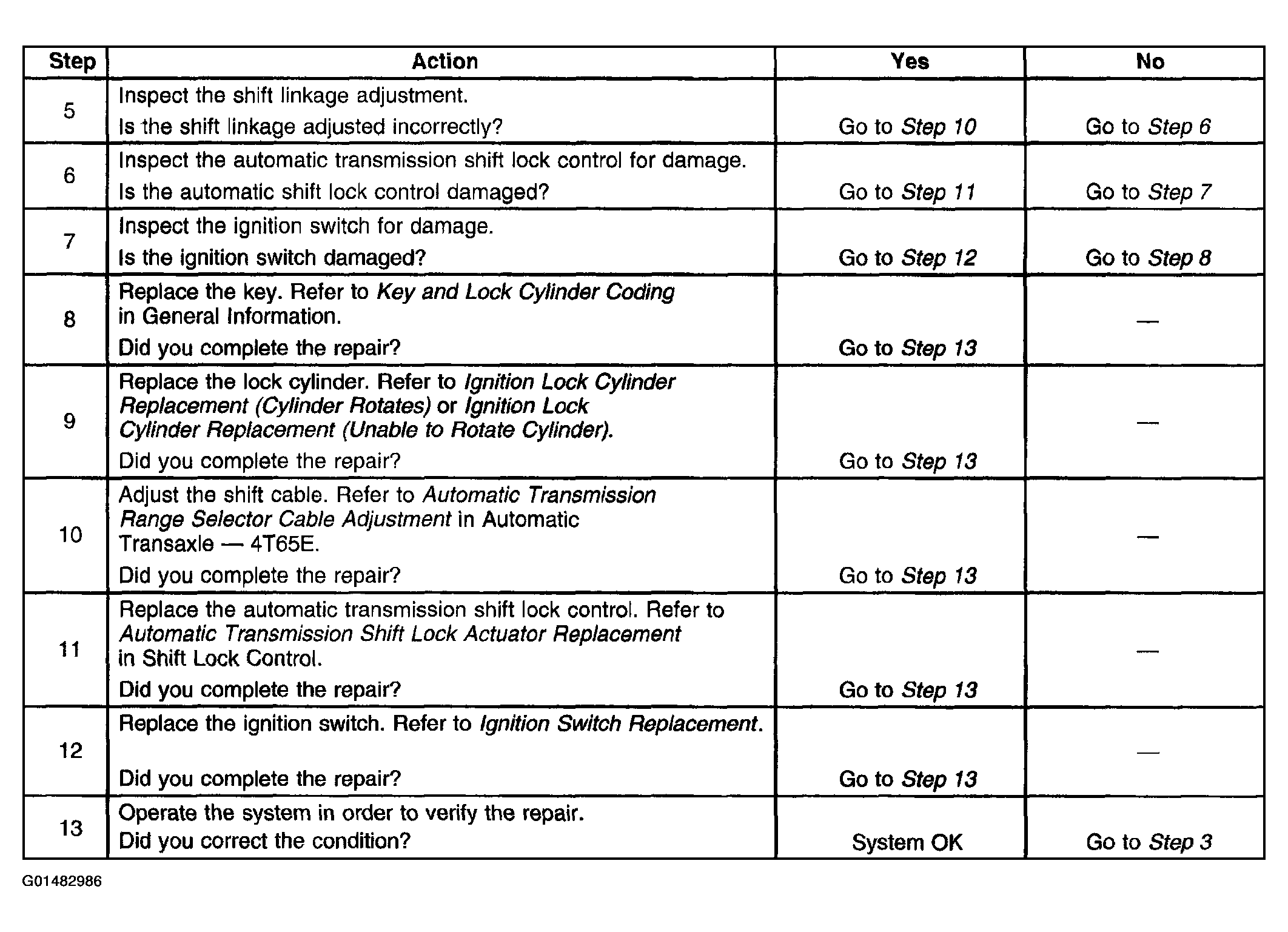

Fig 2: Lock System Does Not Lock Specification (2 Of 2)

G01482986

Courtesy of GENERAL MOTORS CORP.
