Power Steering Fluid Leaks

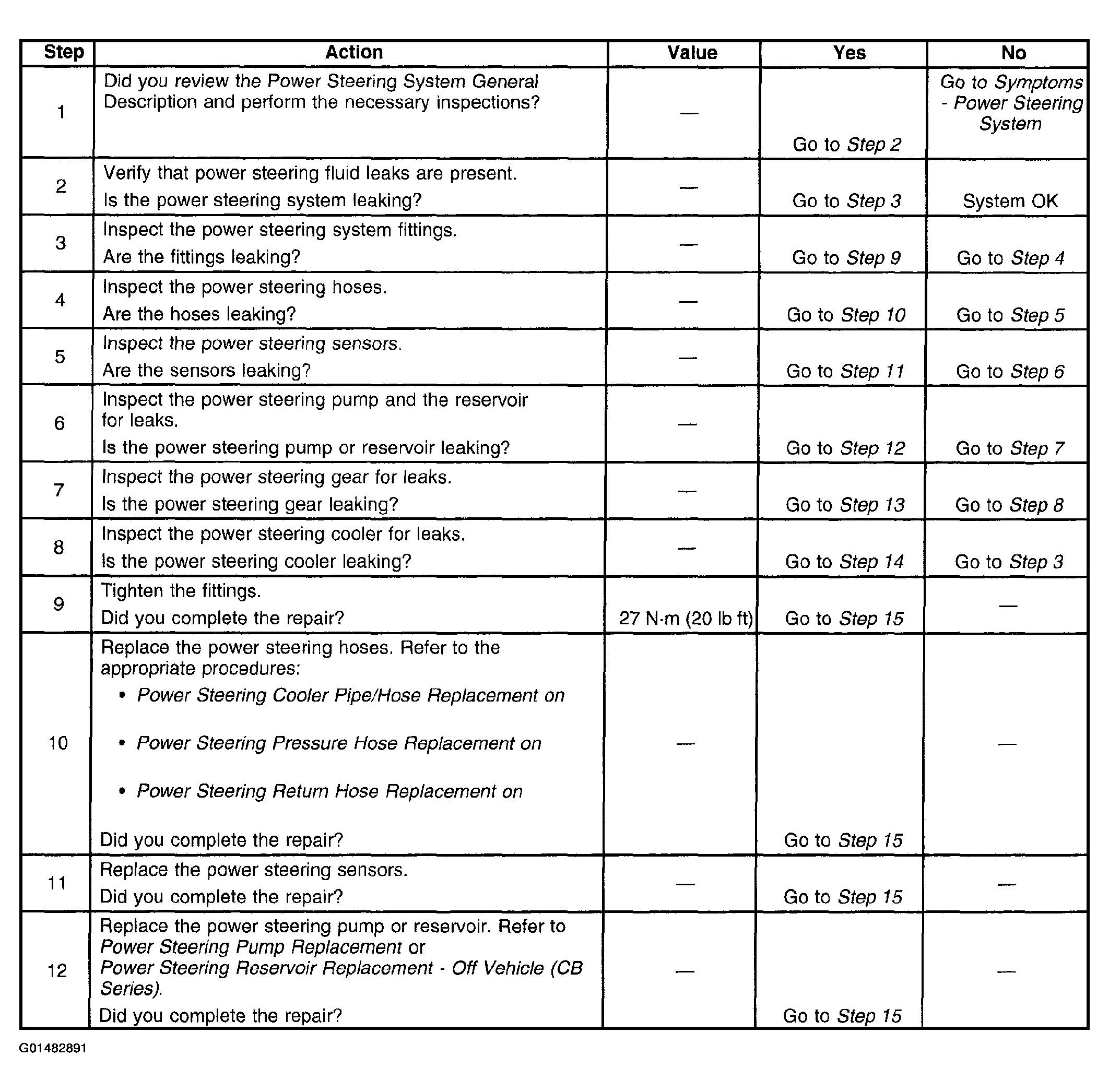

Fig 1: Power Steering Fluid Leaks Specification (1 Of 2)
G01482891Courtesy of GENERAL MOTORS CORP.

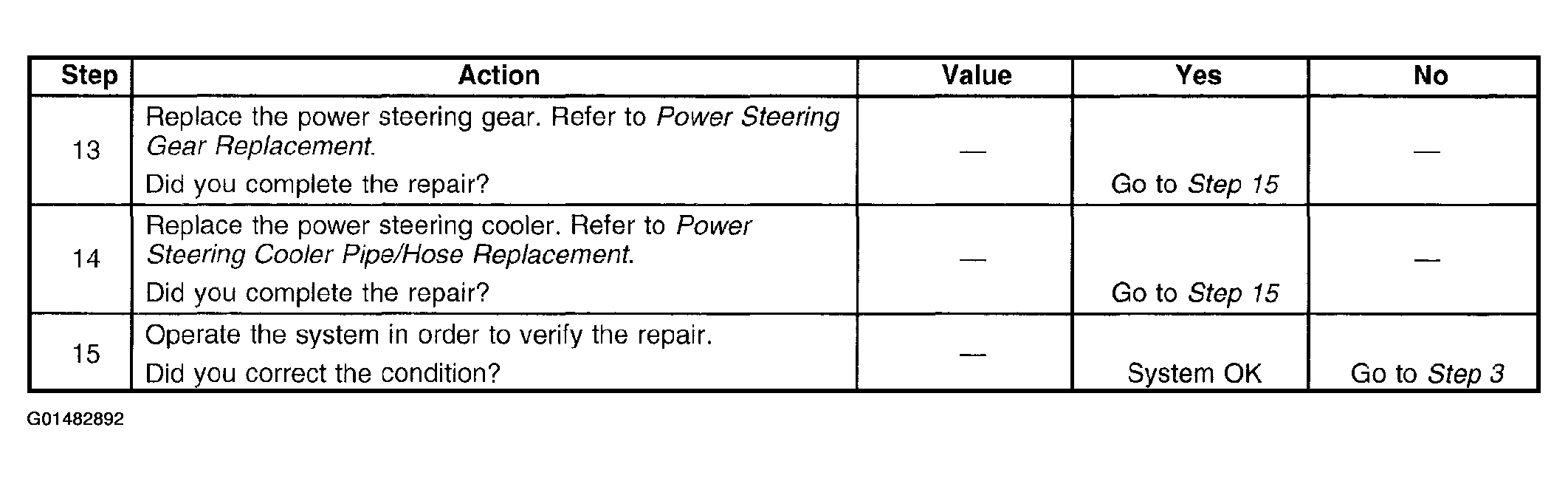

Fig 2: Power Steering Fluid Leaks Specification (2 Of 2)
G01482892Courtesy of GENERAL MOTORS CORP.
