Windshield Wiper Motor Connector End View

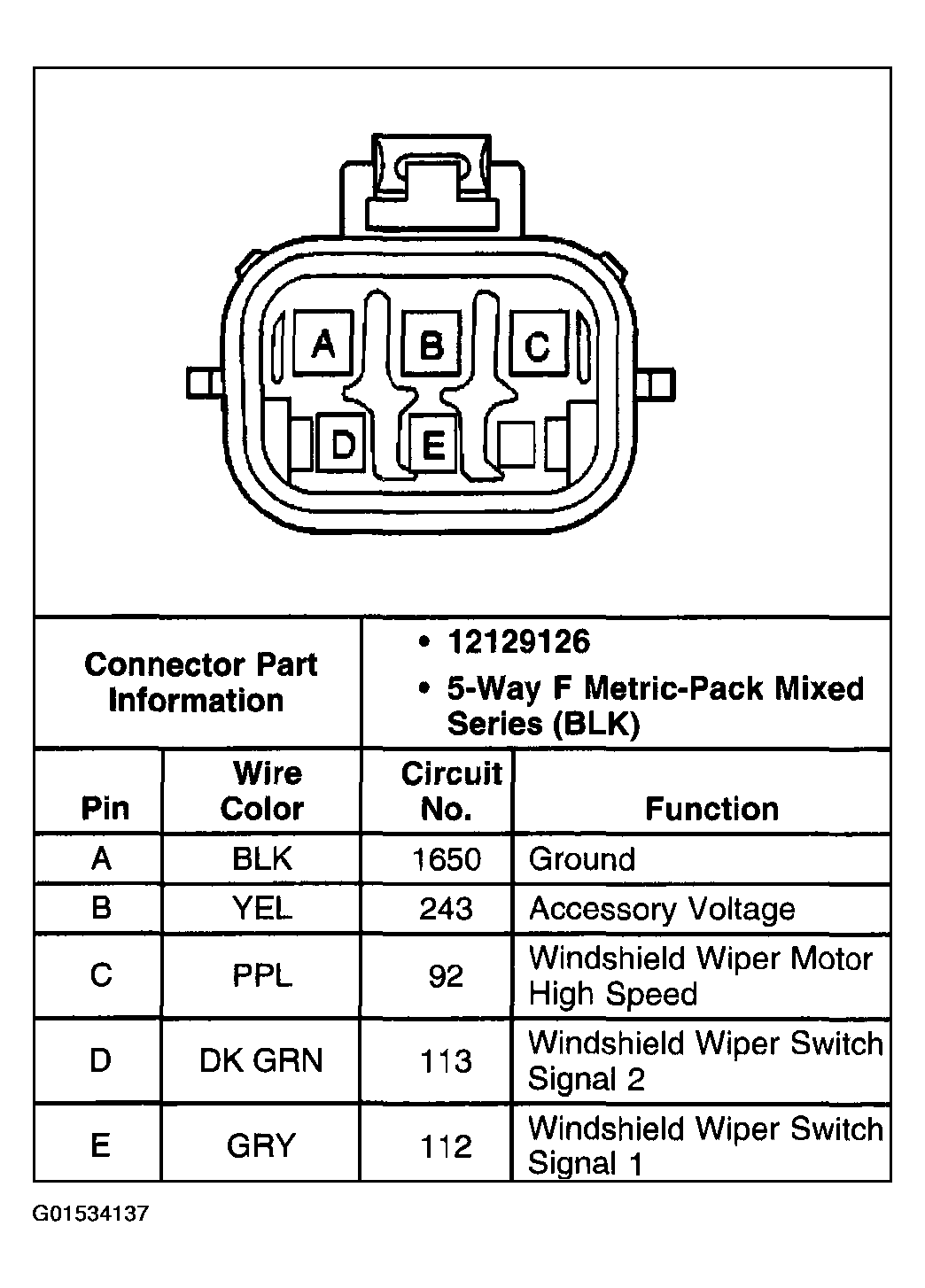

Fig 1: Windshield Wiper Motor Connector End View

G01534137

Courtesy of GENERAL MOTORS CORP.
