Window Washer Fluid Pump-Rear Connector End View

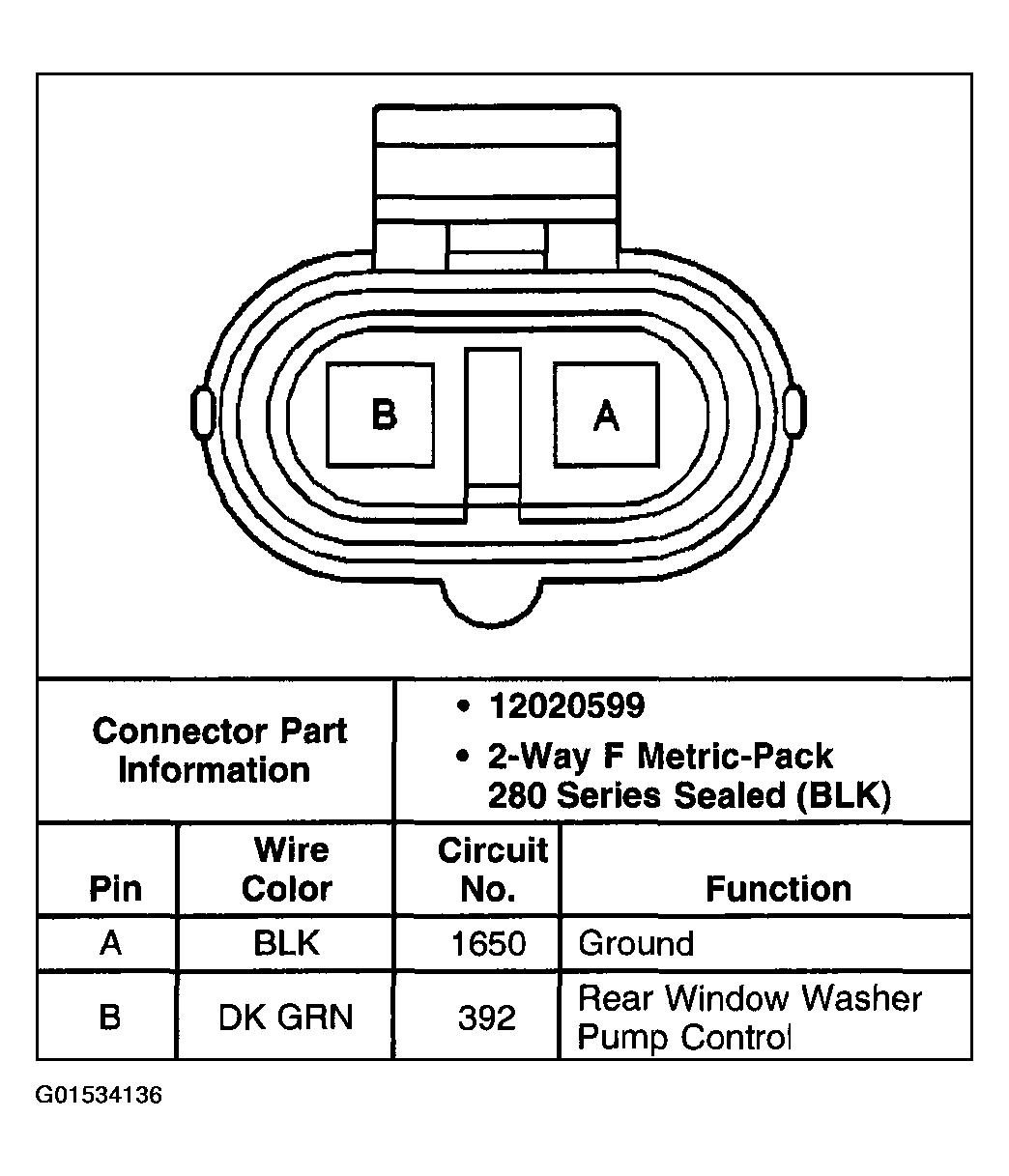

Fig 1: Window Washer Fluid Pump-Rear Connector End View

G01534136

Courtesy of GENERAL MOTORS CORP.
