Memory Seat Switch Connector End View

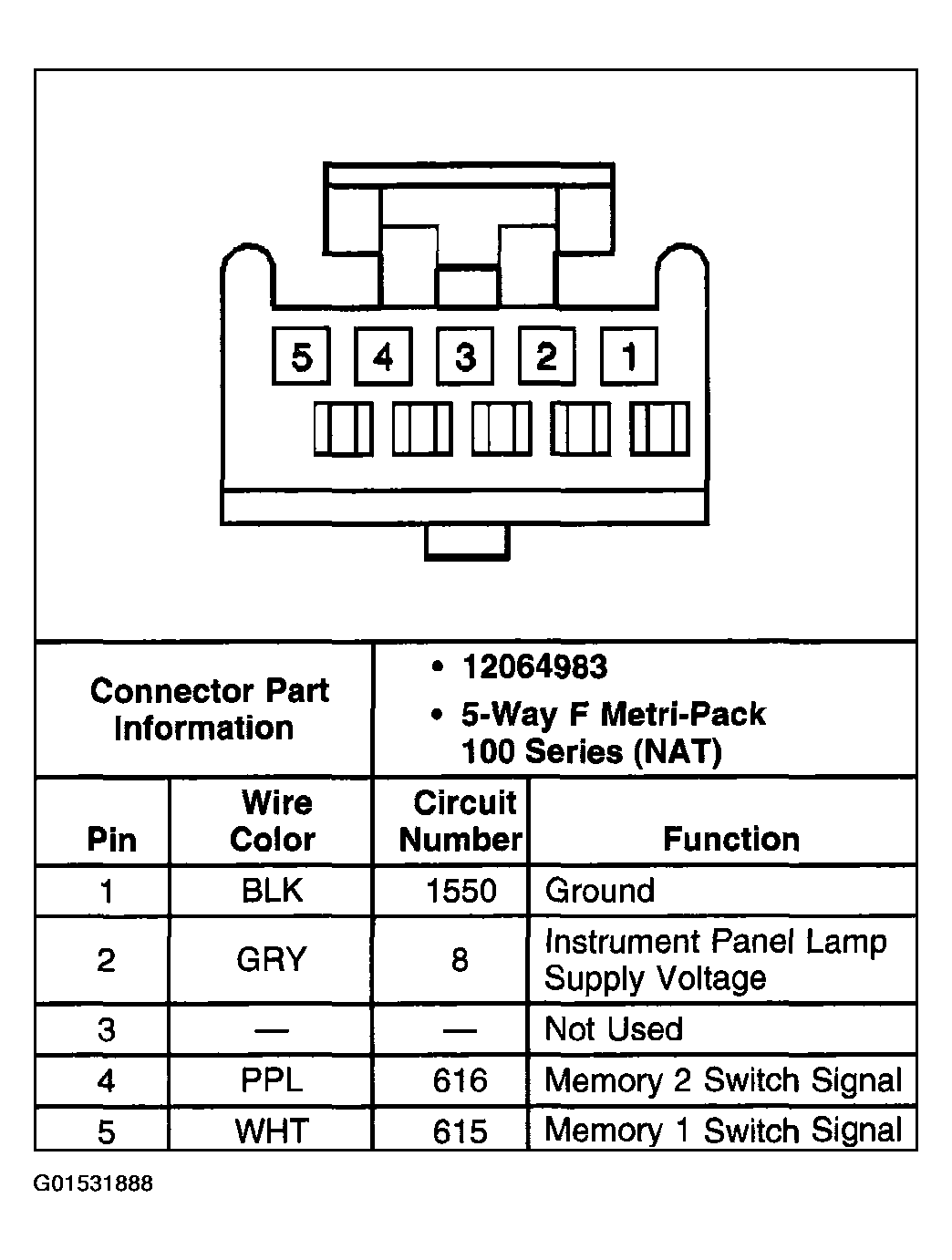

Fig 1: Memory Seat Switch Connector End View

G01531888

Courtesy of GENERAL MOTORS CORP.
