Input Speed Sensor Connector, Wiring Harness Side Connector End View

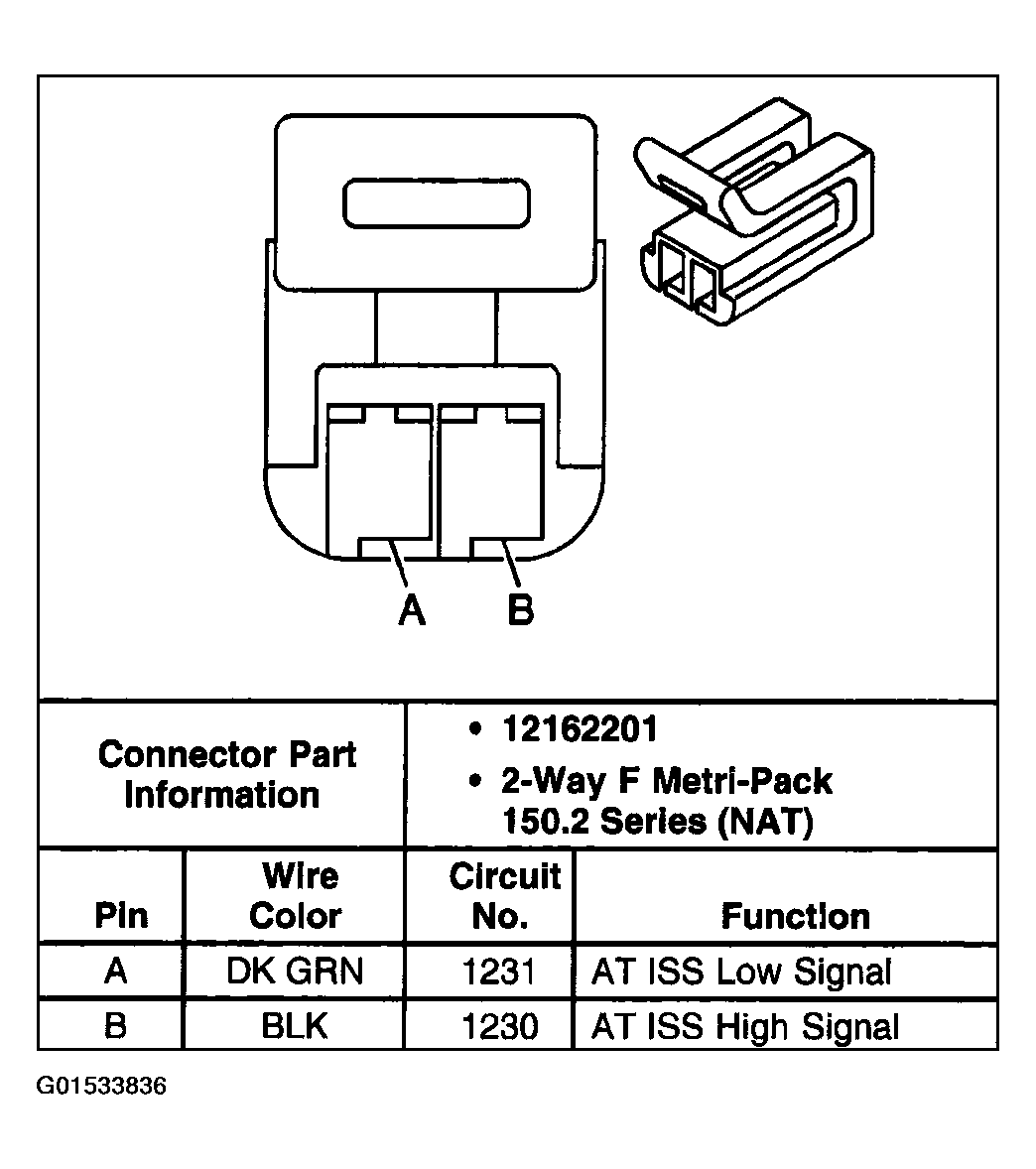

Fig 1: Input Speed Sensor Connector, Wiring Harness Side Connector End View

G01533836

Courtesy of GENERAL MOTORS CORP.
