Evaporative Temperature Sensor Connector End View

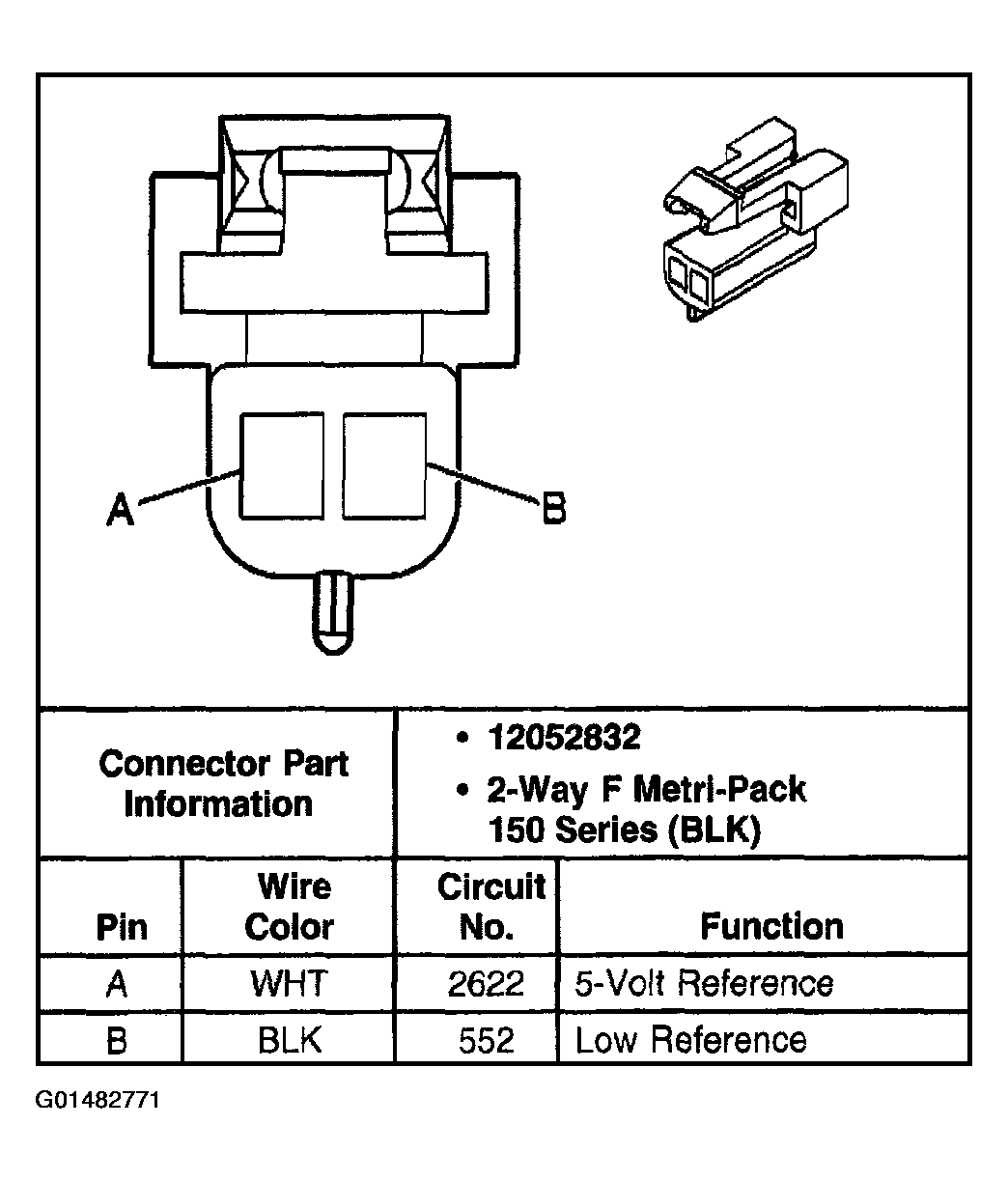

Fig 1: Evaporative Temperature Sensor Connector End View

G01482771

Courtesy of GENERAL MOTORS CORP.
