Blower Motor Resistor Assembly Connector End View

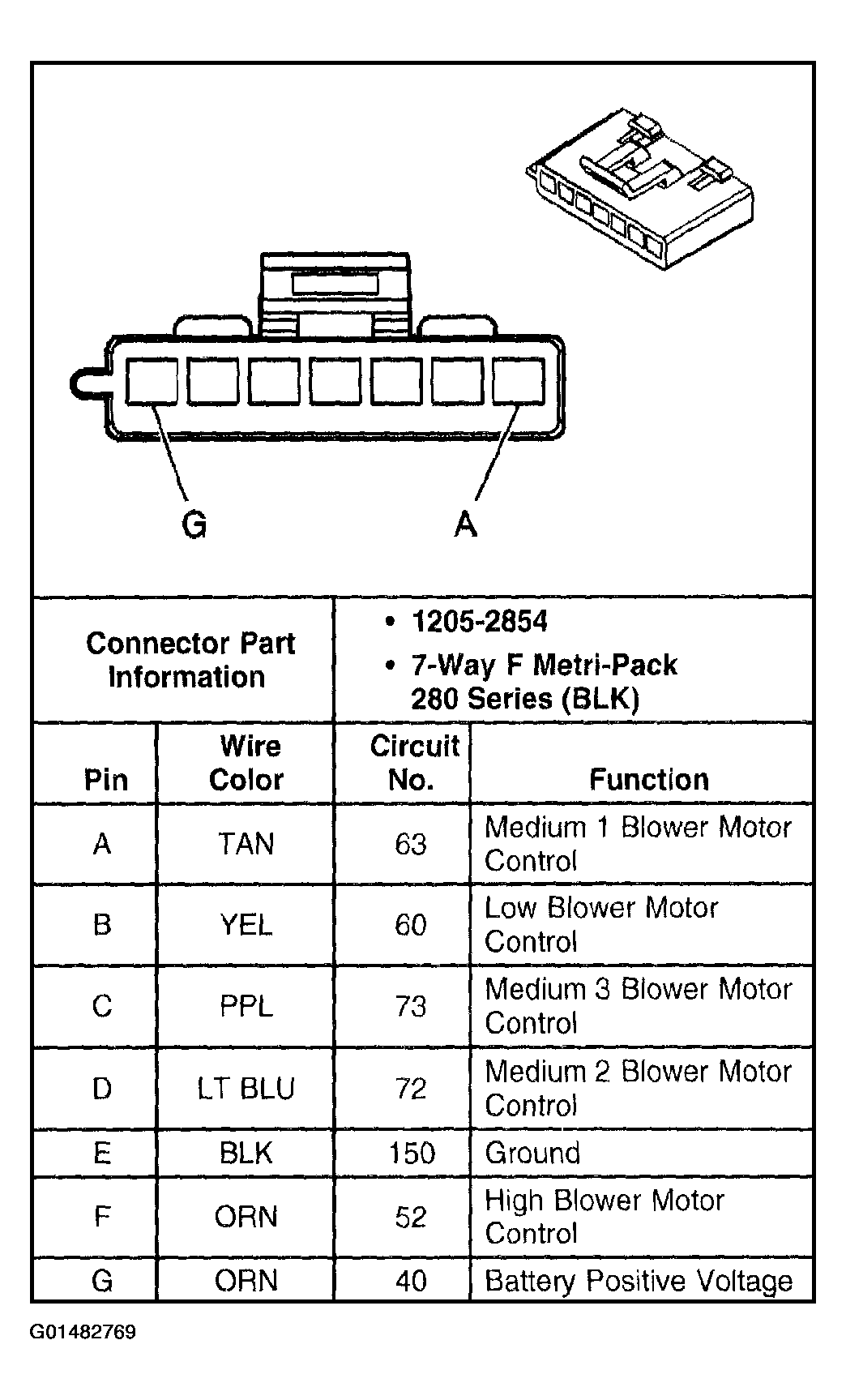

Fig 1: Blower Motor Resistor Assembly Connector End View

G01482769

Courtesy of GENERAL MOTORS CORP.
