Blower Motor Connector End View

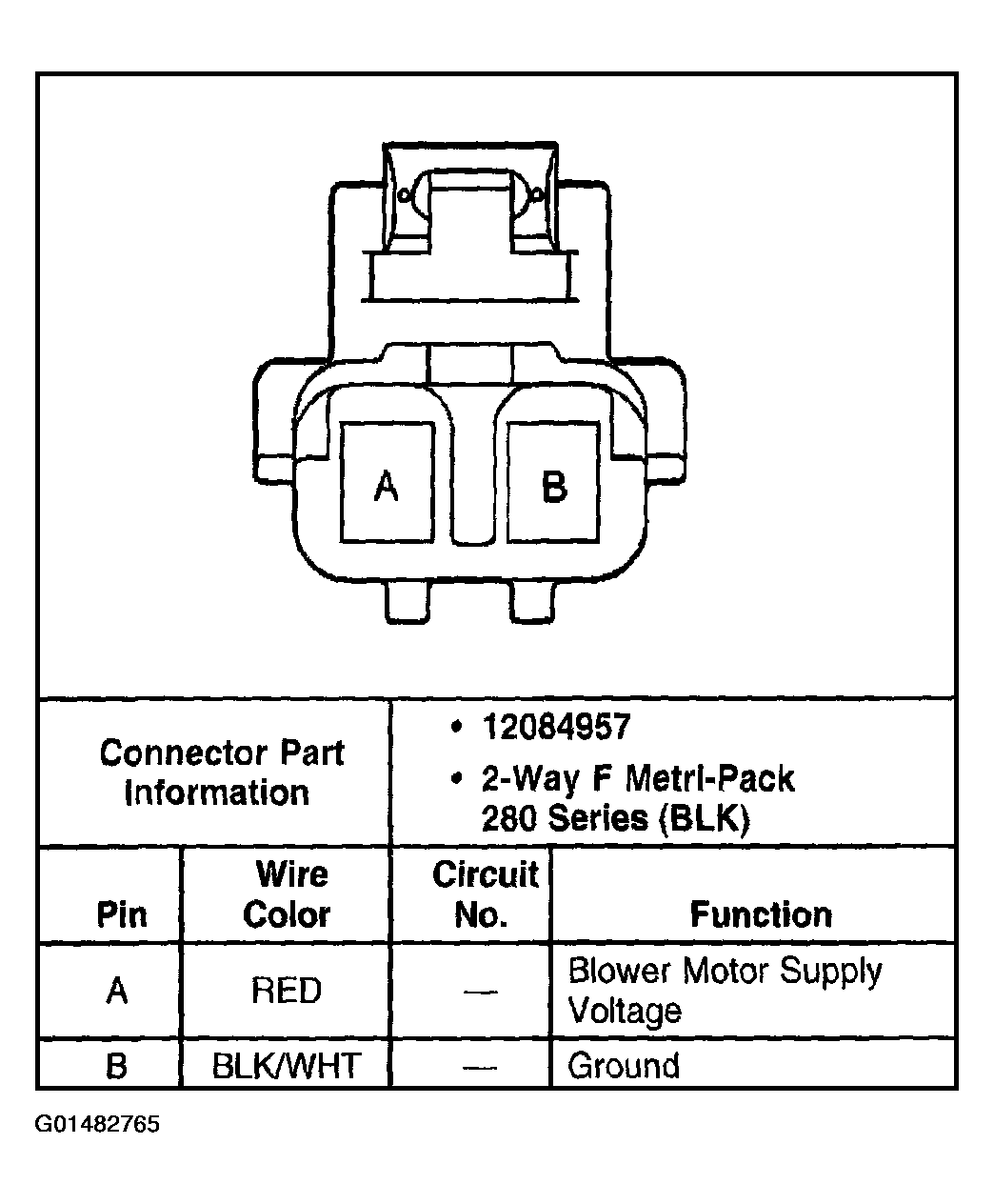

Fig 1: Blower Motor Connector End View

G01482765

Courtesy of GENERAL MOTORS CORP.
