Ambient Air Temperature Sensor Connector End View

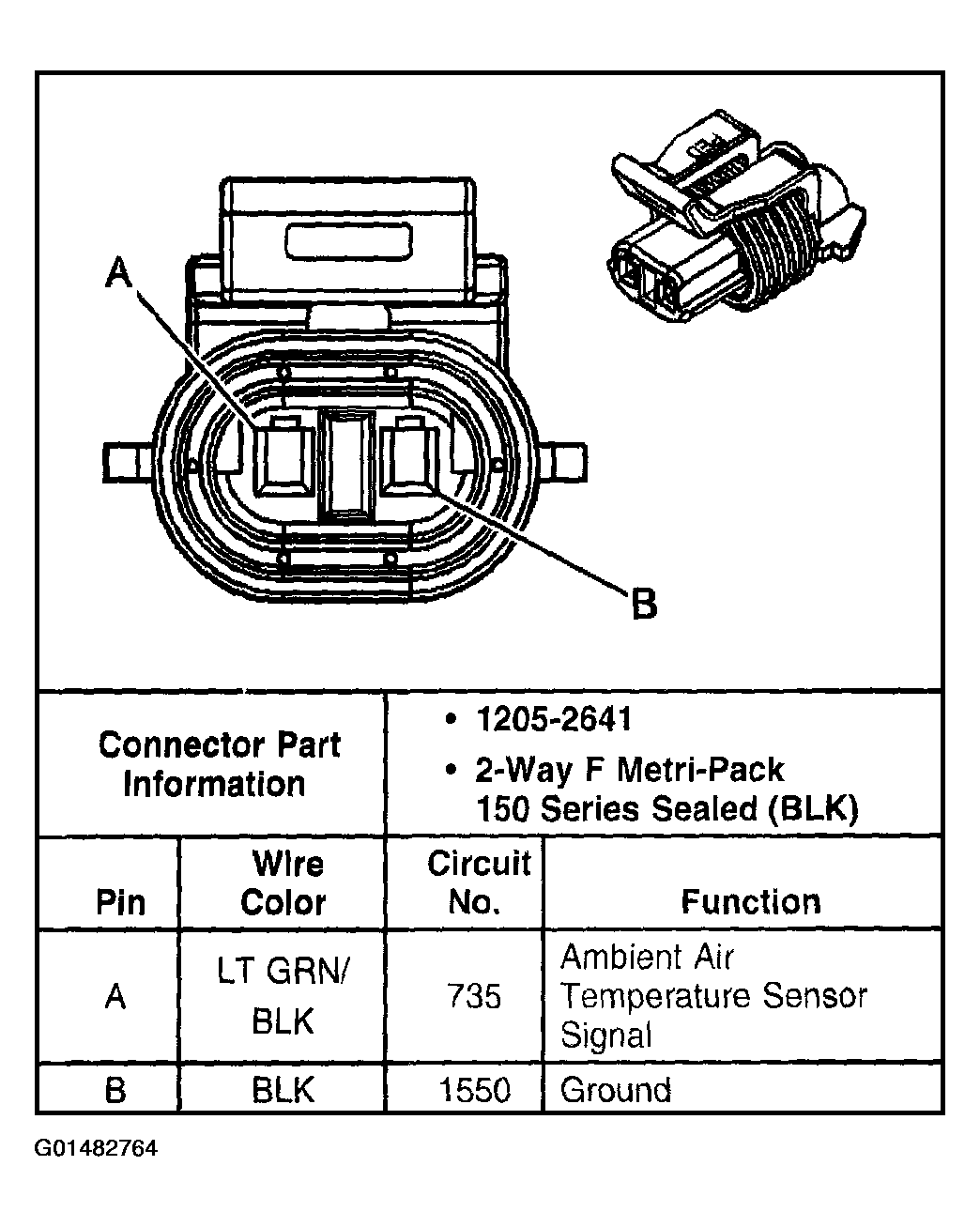

Fig 1: Ambient Air Temperature Sensor Connector End View

G01482764

Courtesy of GENERAL MOTORS CORP.
