Air Inflator Switch Connector End View

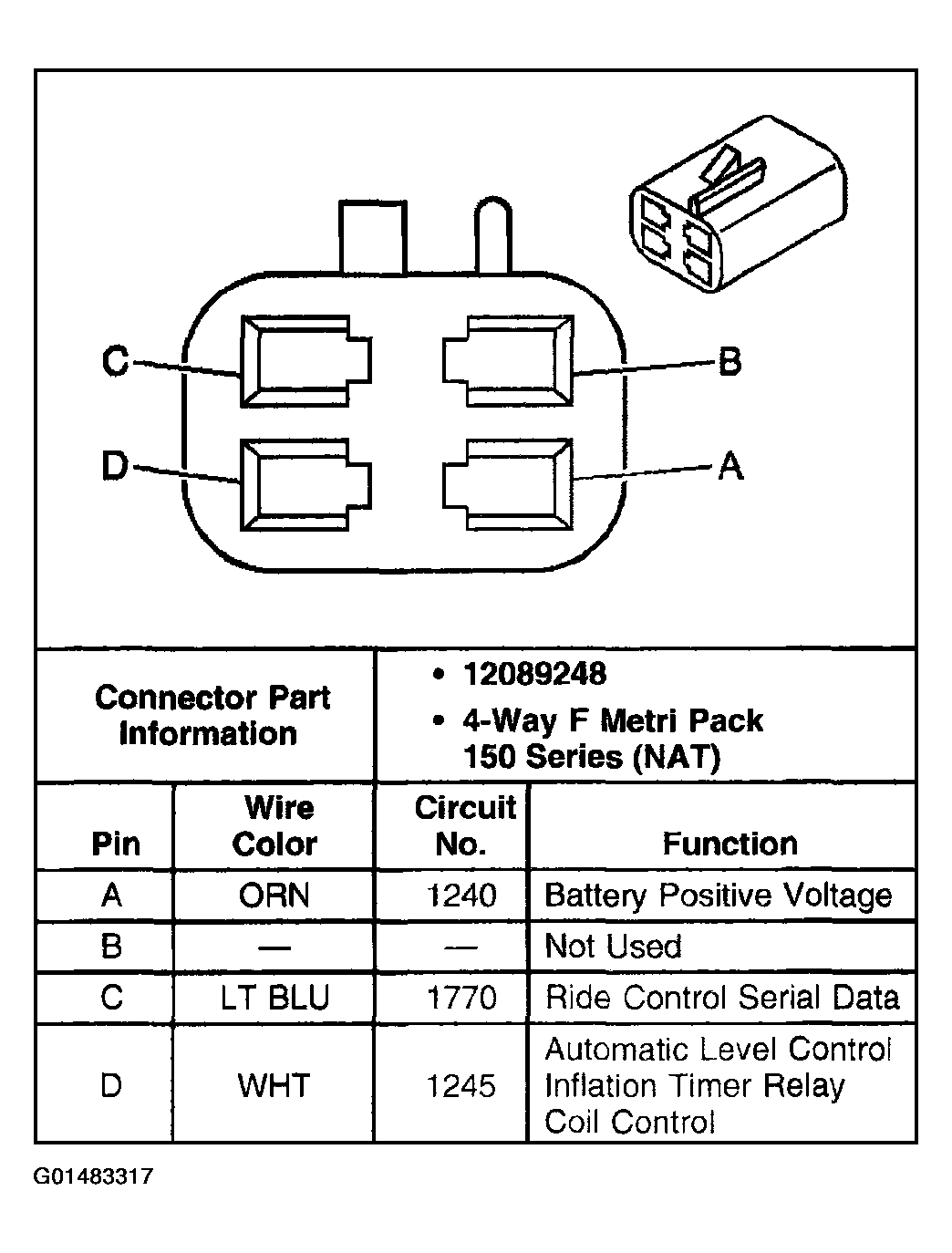

Fig 1: Air Inflator Switch Connector End View

G01483317

Courtesy of GENERAL MOTORS CORP.
